Toyota Hiace truck LY151 REAR BODY GUARD FRAME & TAIL GATE

Manufacturers Home
Toyota
JP
HIACE TRUCK
LY151-TBMDS (1995)
6553 - REAR BODY GUARD FRAME & TAIL GATE

LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

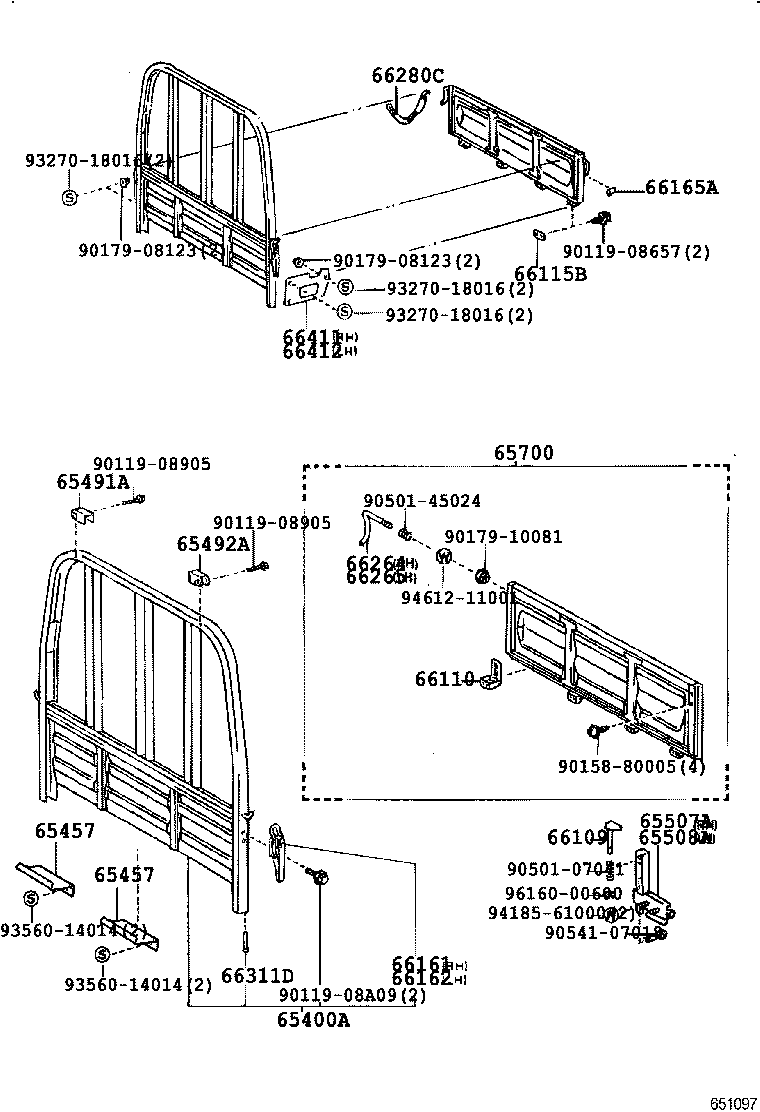

(9505- )T2,T3,TW1..TS

Click highlighted areas on diagram

Part #	Description	Period	Qty
65400A - GUARD ASSY, REAR BODY
65400-25280	LY151..T3..TB	05/1995 - 10/1996	1
65400-26091	LY151..T3..TS..CBU	05/1995 - 10/1996	1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-26070	LY101,111,151..TB 長さ=240	05/1995 - 10/1996	2
65457-26040	LY101,111,151..TB L=615	05/1995 - 10/1996	1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-26070	LY101,111,151..TB 長さ=240	05/1995 - 10/1996	2
65457-26040	LY101,111,151..TB L=615	05/1995 - 10/1996	1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-25010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
65491-37010	LY101,111,151..TB	05/1995 - 10/1996	1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-25010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
65492-37010	LY101,111,151..TB	05/1995 - 10/1996	1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040	LY101,111,151..TB	05/1995 - 10/1996	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040	LY101,111,151..TB	05/1995 - 10/1996	1
65700 - GATE ASSY, REAR BODY TAIL
65700-26010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
65700-25030	LY101,111,151..TB	05/1995 - 10/1996	1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010	LY101,111,151..TB	05/1995 - 10/1996	2
66110 - HINGE ASSY, TAIL GATE
66110-37010	LY101,111,151..TB	05/1995 - 10/1996	3
66110-26010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	4
66115B - RETAINER, GATE HINGE
66115-95013	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	4
66161 - HANDLE, SIDE GATE LATCH, RH
65080-92701	LY101,111,151..TB	05/1995 - 10/1996	1
65480-92700	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
66162 - HANDLE, SIDE GATE LATCH, LH
65490-92701	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
65080-92701	LY101,111,151..TB	05/1995 - 10/1996	1
66165A - CAP, GATE LATCH HANDLE
66165-92701	LY101,111,151..TB	05/1995 - 10/1996	2
66165-87402	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-26010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
66264-37010	LY101,111,151..TB	05/1995 - 10/1996	1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-26010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
66265-37010	LY101,111,151..TB	05/1995 - 10/1996	1
66280C - CHAIN ASSY, TAIL GATE
66280-37020	LY101,111,151..TB	05/1995 - 10/1996	2
66280-25010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	2
66311D - HOOK, ROPE
66312-95A01	LY101,111,151,161,YY101..(T2,T3)..TS..CBU	05/1995 - 10/1996	2
66411 - BRACKET, GUARD FRAME, RH
66411-95022	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
66412 - BRACKET, GUARD FRAME, LH
66412-95022	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
Common parts
90119-08657
90119-08905
90119-08A09
90158-80005
90179-08123
90179-10081
90501-07041
90501-45024
90541-07018
93270-18016
93560-14014
94185-61000
94612-11001
96160-00600

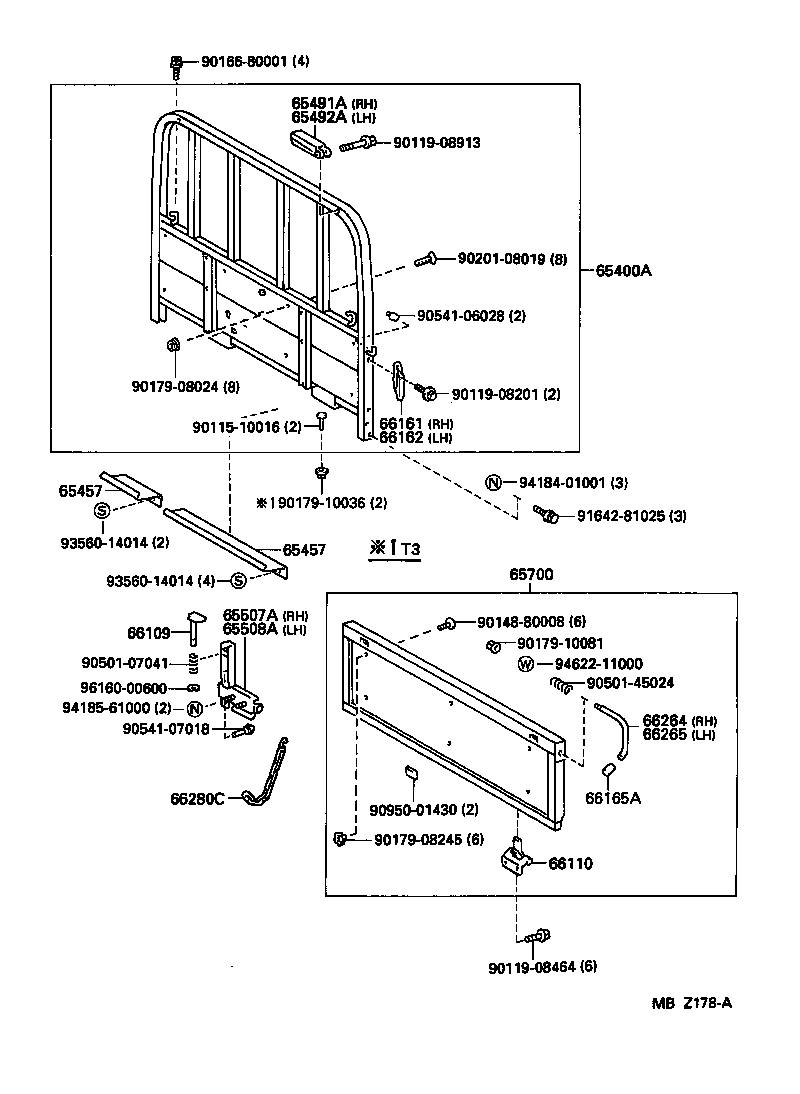

(9505- )TB

Click highlighted areas on diagram

Part #	Description	Period	Qty
65400A - GUARD ASSY, REAR BODY
65400-25280	LY151..T3..TB	05/1995 - 10/1996	1
65400-26091	LY151..T3..TS..CBU	05/1995 - 10/1996	1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-26070	LY101,111,151..TB 長さ=240	05/1995 - 10/1996	2
65457-26040	LY101,111,151..TB L=615	05/1995 - 10/1996	1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-26070	LY101,111,151..TB 長さ=240	05/1995 - 10/1996	2
65457-26040	LY101,111,151..TB L=615	05/1995 - 10/1996	1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-25010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
65491-37010	LY101,111,151..TB	05/1995 - 10/1996	1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-25010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
65492-37010	LY101,111,151..TB	05/1995 - 10/1996	1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040	LY101,111,151..TB	05/1995 - 10/1996	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040	LY101,111,151..TB	05/1995 - 10/1996	1
65700 - GATE ASSY, REAR BODY TAIL
65700-26010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
65700-25030	LY101,111,151..TB	05/1995 - 10/1996	1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010	LY101,111,151..TB	05/1995 - 10/1996	2
66110 - HINGE ASSY, TAIL GATE
66110-37010	LY101,111,151..TB	05/1995 - 10/1996	3
66110-26010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	4
66161 - HANDLE, SIDE GATE LATCH, RH
65080-92701	LY101,111,151..TB	05/1995 - 10/1996	1
65480-92700	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
66162 - HANDLE, SIDE GATE LATCH, LH
65490-92701	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
65080-92701	LY101,111,151..TB	05/1995 - 10/1996	1
66165A - CAP, GATE LATCH HANDLE
66165-92701	LY101,111,151..TB	05/1995 - 10/1996	2
66165-87402	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-26010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
66264-37010	LY101,111,151..TB	05/1995 - 10/1996	1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-26010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	1
66265-37010	LY101,111,151..TB	05/1995 - 10/1996	1
66280C - CHAIN ASSY, TAIL GATE
66280-37020	LY101,111,151..TB	05/1995 - 10/1996	2
66280-25010	LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU	05/1995 - 10/1996	2
Common parts
90115-10016
90119-08201
90119-08464
90119-08913
90148-80008
90166-80001
90179-08024
90179-08245
90179-10036
90179-10081
90201-08019
90501-07041
90501-45024
90541-06028
90541-07018
90950-01430
91642-81025
93560-14014
94184-01001
94185-61000
94622-11000
96160-00600

LY151-TBMDS (1995)

(9505- )T2,T3,TW1..TS

(9505- )TB
