LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

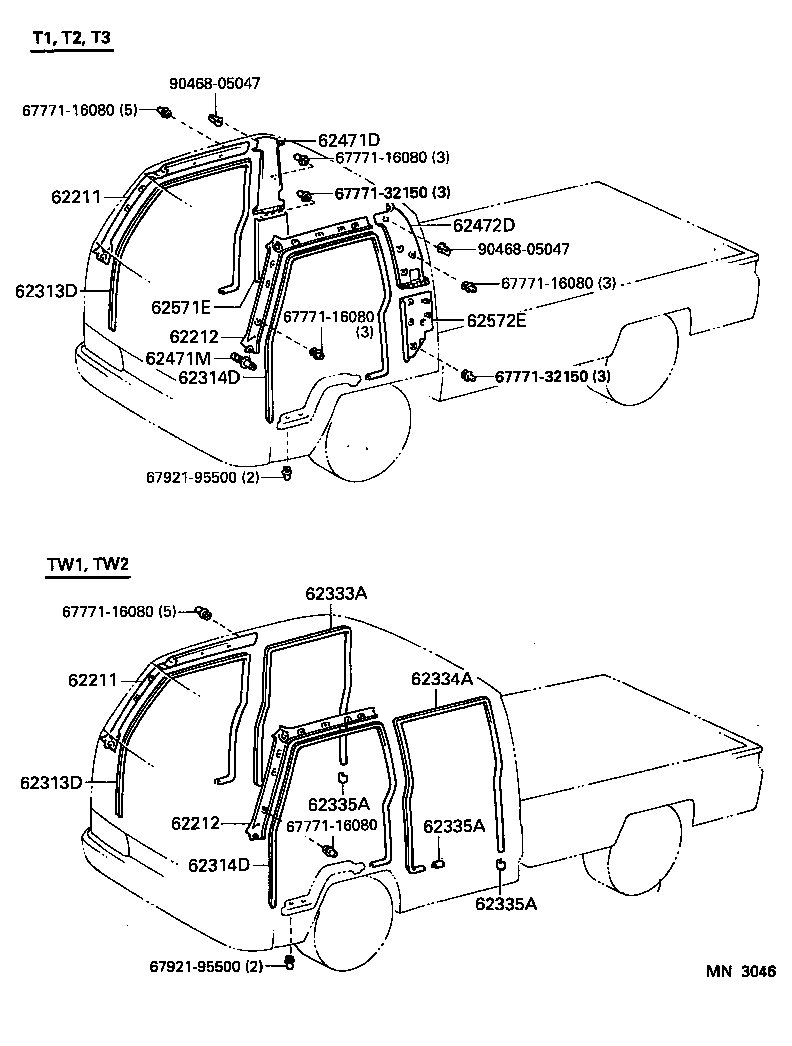

Click highlighted areas on diagram

diagram 62211 62211 62212 62212 62313D 62313D 62314D 62314D 62333A 62334A 62335A 62335A 62335A 62471D 62471M 62472D 62571E 62572E 6777116080 6777116080 6777116080 6777116080 6777116080 6777116080 6777132150 6777132150 6792195500 6792195500 9046805047 9046805047
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-25010B0

LY101,111,151,161,YY101

LT.GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-25010B0

LY101,111,151,161,YY101

LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-25010B0

LY101,111,151,161,YY101

LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-25010B0

LY101,111,151,161,YY101

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37020B0

LY101,111,151,161,YY101

BLUISH GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37020B0

LY101,111,151,161,YY101

BLUISH GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-37020B0

LY101,111,151,161,YY101

BLUISH GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-37020B0

LY101,111,151,161,YY101

BLUISH GRAY,TRIM1#

 1
62471D - GARNISH, REAR PILLAR, UPPER RH
62471-25010B0

LY101,111,151,161,YY101..T1,T2,T3

LT.GRAY,TRIM1#

 1
62471M - CLIP
90467-07043B1

LY101,111,151,161,YY101..T1,T2,T3

LIGHT GRAY,TRIM1#

 2
62472D - GARNISH, REAR PILLAR, UPPER LH
62472-25010B0

LY101,111,151,161,YY101..T1,T2,T3

LT.GRAY,TRIM1#

 1
62571E - GARNISH, REAR PILLAR, LOWER RH
62571-25010B0

LY101,111,151,161,YY101..T1,T2,T3

LT.GRAY,TRIM1#

 1
62572E - GARNISH, REAR PILLAR, LOWER LH
62572-25010B0

LY101,111,151,161,YY101..T1,T2,T3

LT.GRAY,TRIM1#

 1
Common parts
67771-16080
67771-32150
67921-95500
90468-05047
