LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

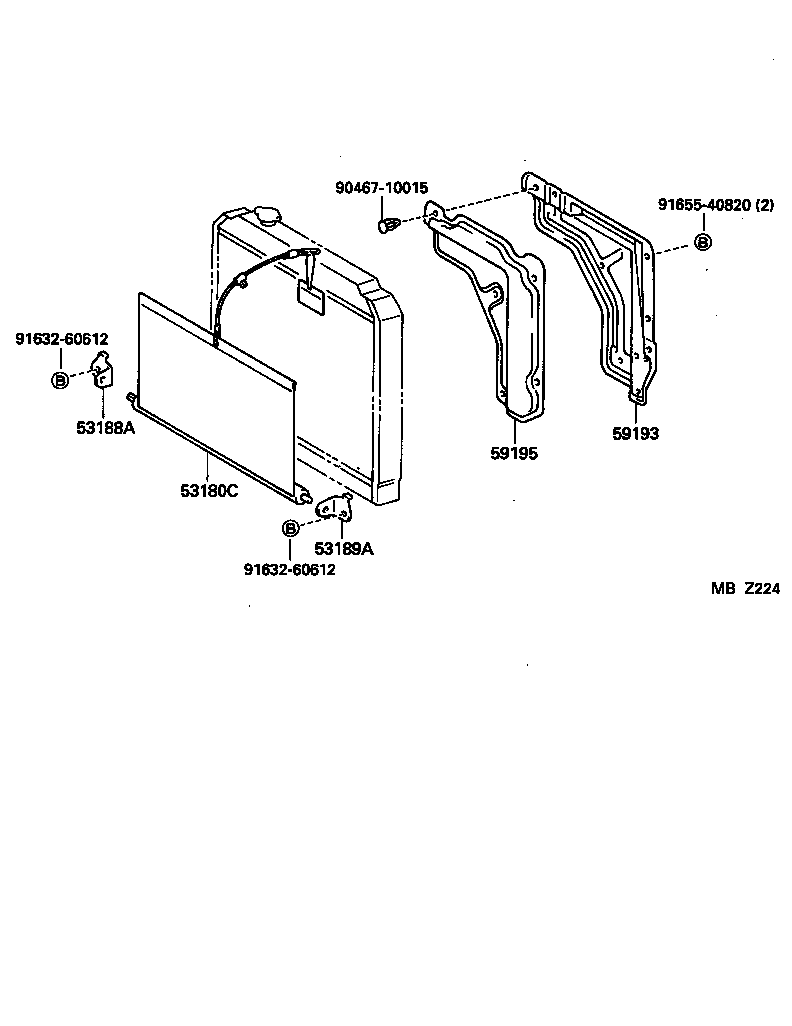

Click highlighted areas on diagram

diagram 53180C 53188A 53189A 59193 59195 9046710015 9163260612 9163260612 9165540820
Part # Description Qty Price
53180C - SHUTTER ASSY, RADIATOR
53180-25010

LY101,111,151,161

 1
53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH
53188-37010

LY101,111,151,161

 1
53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH
53189-37010

LY101,111,151,161

 1
59193 - GUARD, NOISE SHUTTER
59193-25030

LY101,111,151,161..T1,T2,T3

 1
59193-25010

LY101,111,151,161..T1,T2,T3

 1
59195 - INSULATOR, NOISE SHUTTER
59195-95A00

LY101,111,151,161..T1,T2,T3

 1
59195-25030

LY101,111,151,161..T1,T2,T3

 1
Common parts
90467-10015
91632-60612
91655-40820
