LY151-TBMDS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

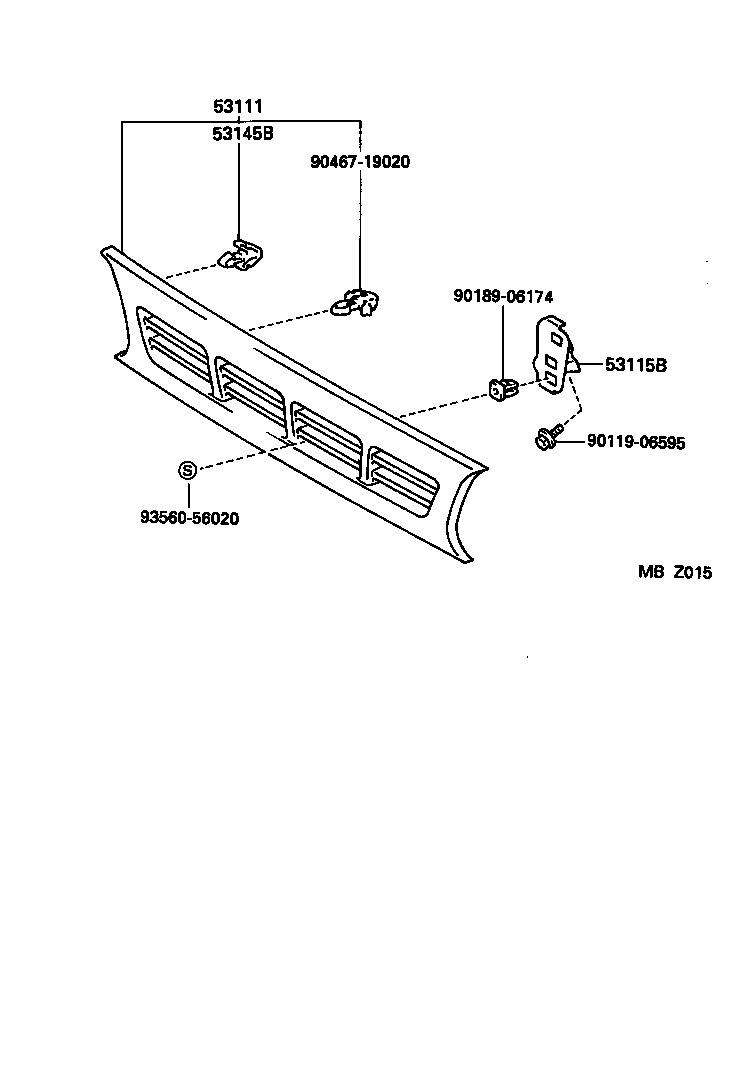

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-25010B1 |
LY101,111,151,161,YY101 SILVER,SILVER,048 |
1 | ||
| 53115B - BRACKET, RADIATOR GRILLE | ||||
| 53115-37020 |
LY101,111,151,161,YY101 |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-26010 |
LY101,111,151,161,YY101 |
2 | ||
| Common parts | ||||
| 90119-06595 | ||||
| 90189-06174 | ||||
| 90467-19020 | ||||
| 93560-56020 | ||||
