LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY151,161..T3,TW1,TW2

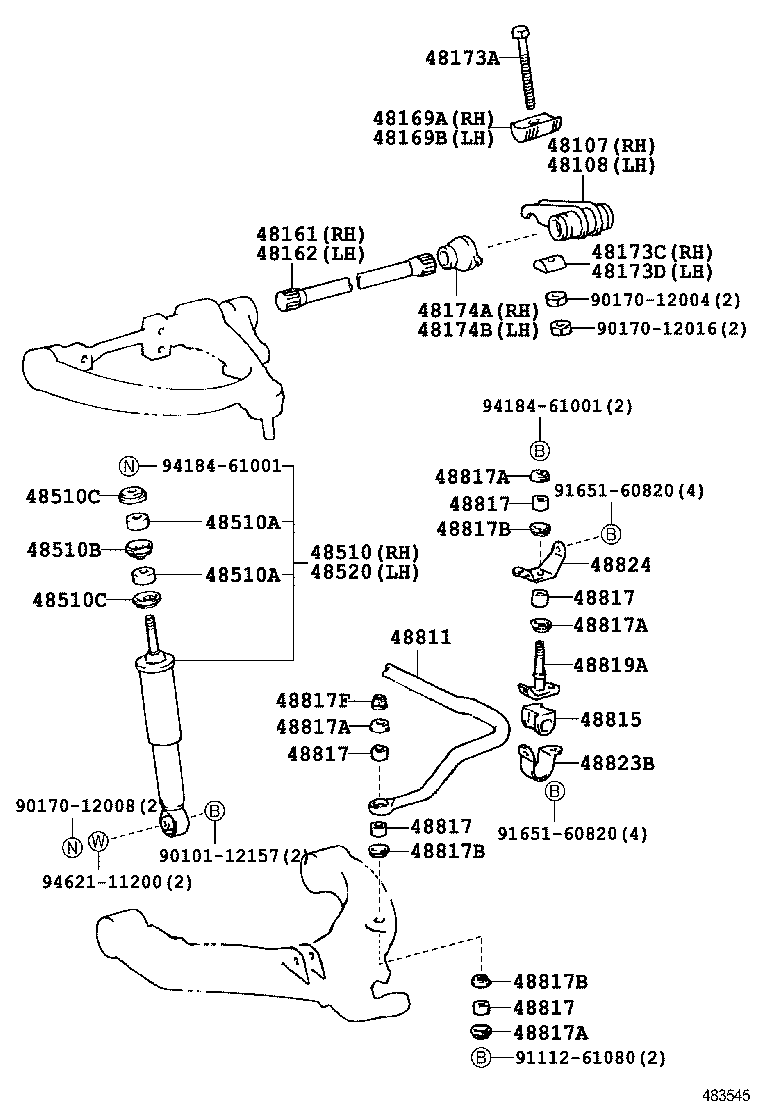

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169A 48169B 48173A 48173C 48173D 48174A 48174B 48510 48510A 48510A 48510B 48510C 48510C 48520 48811 48815 48817 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817B 48817B 48817F 48819A 48823B 48824 9010112157 9017012004 9017012008 9017012016 9111261080 9165160820 9165160820 9418461001 9418461001 9462111200
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-26060

LY151,161

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-26060

LY151,161

 1
48161 - SPRING, TORSION BAR, RH
48161-26230

LY151,161

 1
48162 - SPRING, TORSION BAR, LH
48162-26230

LY151,161

 1
48169A - SWIVEL, ANCHOR ARM, RH
48169-26040

LY151,161

 1
48169B - SWIVEL, ANCHOR ARM, LH
48169-26040

LY151,161

 1
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12104

LY101,111,151,161,YY101

 2
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-27010

LY101,111,151,161,YY101

 1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-27010

LY101,111,151,161,YY101

 1
48174A - COVER, TORSION BAR DUST, RH
48174-26010

LY101,111,151,161,YY101

 1
48174B - COVER, TORSION BAR DUST, LH
48174-26010

LY101,111,151,161,YY101

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-29476

LY151,161..T3,TW1,TW2

ﾏｰｸ 48511−26190

 1
48511-29475

LY151,161..T3,TW1,TW2

ﾏｰｸ 48511−26190

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LY101,111,151,161,YY101

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LY101,111,151,161,YY101

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02111

LY151,161

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LY101,111,151,161,YY101

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LY101,111,151,161,YY101

 4
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-29476

LY151,161..T3,TW1,TW2

ﾏｰｸ 48511−26190

 1
48511-29475

LY151,161..T3,TW1,TW2

ﾏｰｸ 48511−26190

 1
48811 - BAR, STABILIZER, FRONT
48811-26110

LY151,161

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-26020

LY151,161

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

LY151,161

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LY151,161

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LY151,161

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LY151,161

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LY151,161

 10
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LY151,161

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LY151,161

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LY151,161

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LY151,161

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LY151,161

 6
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LY151,161

 6
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LY151,161

 6
48817F - NUT(FOR FRONT STABILIZER BAR)
94184-61001

LY101,111,151,161,YY101

 2
48819A - BOLT, FRONT STABILIZER
48819-26030

LY151,161

 2
48823B - COVER, FRONT STABILIZER BRACKET
48823-26050

LY101,111,151,161,YY101

 2
48824 - BRACKET, STABILIZER, FRONT
48824-26080

LY151,161

 2
Common parts
90101-12157
90170-12004
90170-12008
90170-12016
91112-61080
91651-60820
94184-61001
94621-11200
