LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY151,161

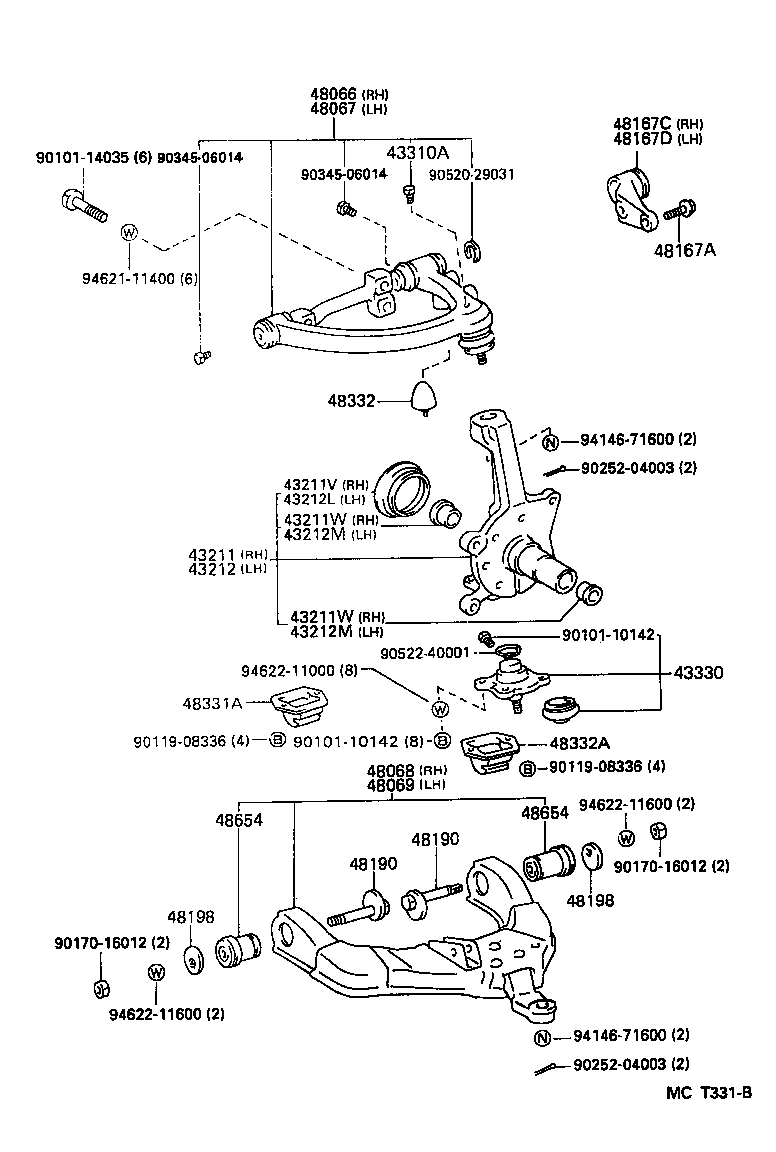

Click highlighted areas on diagram

diagram 43211 43211V 43211W 43211W 43212 43212L 43212M 43212M 43310A 43330 48066 48067 48068 48069 48167A 48167C 48167D 48190 48190 48198 48198 48331A 48332 48332A 48654 48654 9010110142 9010110142 9010114035 9011908336 9011908336 9017016012 9017016012 9025204003 9025204003 9034506014 9034506014 9052029031 9052240001 9414671600 9414671600 9462111400 9462211000 9462211600 9462211600
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43201-26030

LY151,161

 1
43211V - SEAL, OIL (FOR STEERING KNUCKLE RH)
90316-60002

LY151,161

 1
43211W - BUSH (FOR STEERING KNUCKLE RH)
90381-30003

LY151,161

外側

 1
90381-30006

LY151,161

内側

 1
43211W - BUSH (FOR STEERING KNUCKLE RH)
90381-30003

LY151,161

外側

 1
90381-30006

LY151,161

内側

 1
43212 - KNUCKLE, STEERING, LH
43202-26030

LY151,161

 1
43212L - SEAL, OIL (FOR STEERING KNUCKLE LH)
90316-60002

LY151,161

 1
43212M - BUSH (FOR STEERING KNUCKLE LH)
90381-30006

LY151,161

内側

 1
90381-30003

LY151,161

外側

 1
43212M - BUSH (FOR STEERING KNUCKLE LH)
90381-30006

LY151,161

内側

 1
90381-30003

LY151,161

外側

 1
43310A - PLUG (FOR BALL JOINT)
90345-06014

LY101,111,151,161,YY101

 2
90345-06014

LY151,161

 2
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29335

LY151,161

 2
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-29065

LY151,161

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-29065

LY151,161

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-26080

LY151,161

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-26080

LY151,161

 1
48167A - BOLT(FOR TORQUE ARM SETTING)
90105-12200

LY151,161

 4
48167C - ARM, FRONT SUSPENSION TORQUE, RH
48106-25010

LY151,161

 1
48167D - ARM, FRONT SUSPENSION TORQUE, LH
48106-25010

LY151,161

 1
48190 - CAM ASSY, CAMBER ADJUST
48190-26020

LY151,161

 4
48190 - CAM ASSY, CAMBER ADJUST
48190-26020

LY151,161

 4
48198 - CAM, CAMBER ADJUST, NO.2
48198-26010

LY151,161

 4
48198 - CAM, CAMBER ADJUST, NO.2
48198-26010

LY151,161

 4
48331A - BUMPER, FRONT SPRING, NO.1
48331-26070

LY151,161

 2
48332 - BUMPER, FRONT SPRING, NO.2
48332-26020

LY151,161

 2
48332A - BUMPER, FRONT SPRING, NO.3
48331-26080

LY151,161

 2
48654 - BUSH, LOWER ARM
48061-26020

LY151,161

 4
48654 - BUSH, LOWER ARM
48061-26020

LY151,161

 4
Common parts
90101-10142
90101-14035
90119-08336
90170-16012
90252-04003
90345-06014
90520-29031
90522-40001
94146-71600
94621-11400
94622-11000
94622-11600
