LY151-TBMDS (1995)
Toyota Hiace Truck
(9505- )LY151,161..T3,TW1,TW2

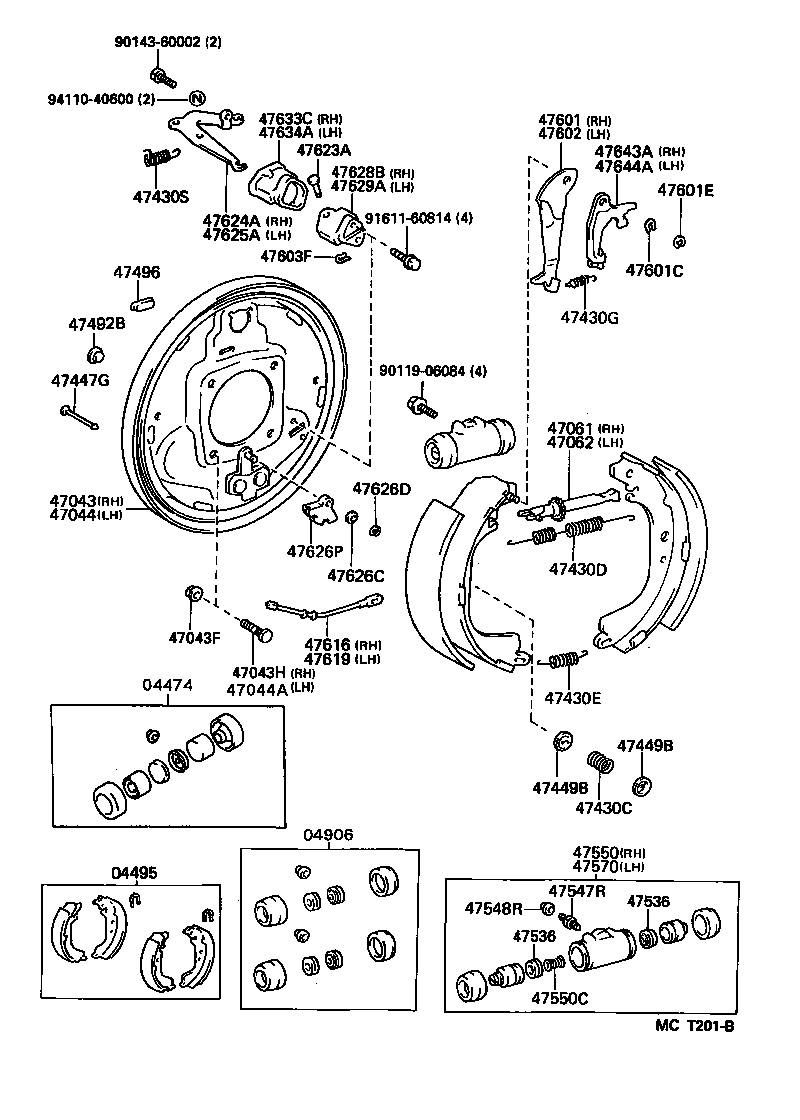

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-35090 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 04474-26030 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35151 |
LY151,161..T3,TW1,TW2 ﾏｰｸ NBK LN508 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35120 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26071 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LY101,111,151,161,YY101 |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10002 |
LY151,161..T3,TW1,TW2 |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26071 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10002 |
LY151,161..T3,TW1,TW2 |
4 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-60011 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-60011 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
LY101,111,151,161,YY101 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26011 |
LY151,161..T3,TW1,TW2 RH |
1 | ||
| 90506-26014 |
LY151,161..T3,TW1,TW2 LH |
1 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18031 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12031 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90506-20033 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30020 |
LY151,161..T3,TW1,TW2 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY101,111,151,161,YY101 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY101,111,151,161,YY101 |
8 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-60020 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LY101,111,151,161,YY101 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-26110 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60009 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47509-60010 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-26110 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-60010 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LY101,111,151,161,YY101 厚さ=1.6 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-60010 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47603F - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) | ||||
| 90213-06013 |
LY101,111,151,161,YY101 |
2 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-60010 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-60010 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47623A - PIN(FOR PARKING BRAKE BELL CRANK) | ||||
| 90249-08068 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47624A - CRANK, PARKING BRAKE BELL, RH | ||||
| 47624-26050 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47625A - CRANK, PARKING BRAKE BELL, LH | ||||
| 47625-26050 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47626C - WASHER, WAVE | ||||
| 90206-08024 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47626D - RING, E(FOR PARKING BRAKE SEGMENTAL PULLEY) | ||||
| 96160-00600 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47626P - PULLEY, PARKING BRAKE SEGMENTAL | ||||
| 47626-60010 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 47628B - BRACKET, REAR BRAKE BELLCRANK, RH | ||||
| 47628-35020 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47629A - BRACKET, REAR BRAKE BELLCRANK, LH | ||||
| 47628-35020 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47633C - BOOT, REAR BRAKE BELLCRANK, RH | ||||
| 47633-35020 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47634A - BOOT, REAR BRAKE BELLCRANK, LH | ||||
| 47633-35020 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-60010 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-60010 |
LY151,161..T3,TW1,TW2 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 90143-60002 | ||||
| 91611-60814 | ||||
| 94110-40600 | ||||
