LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY101,111,151,161

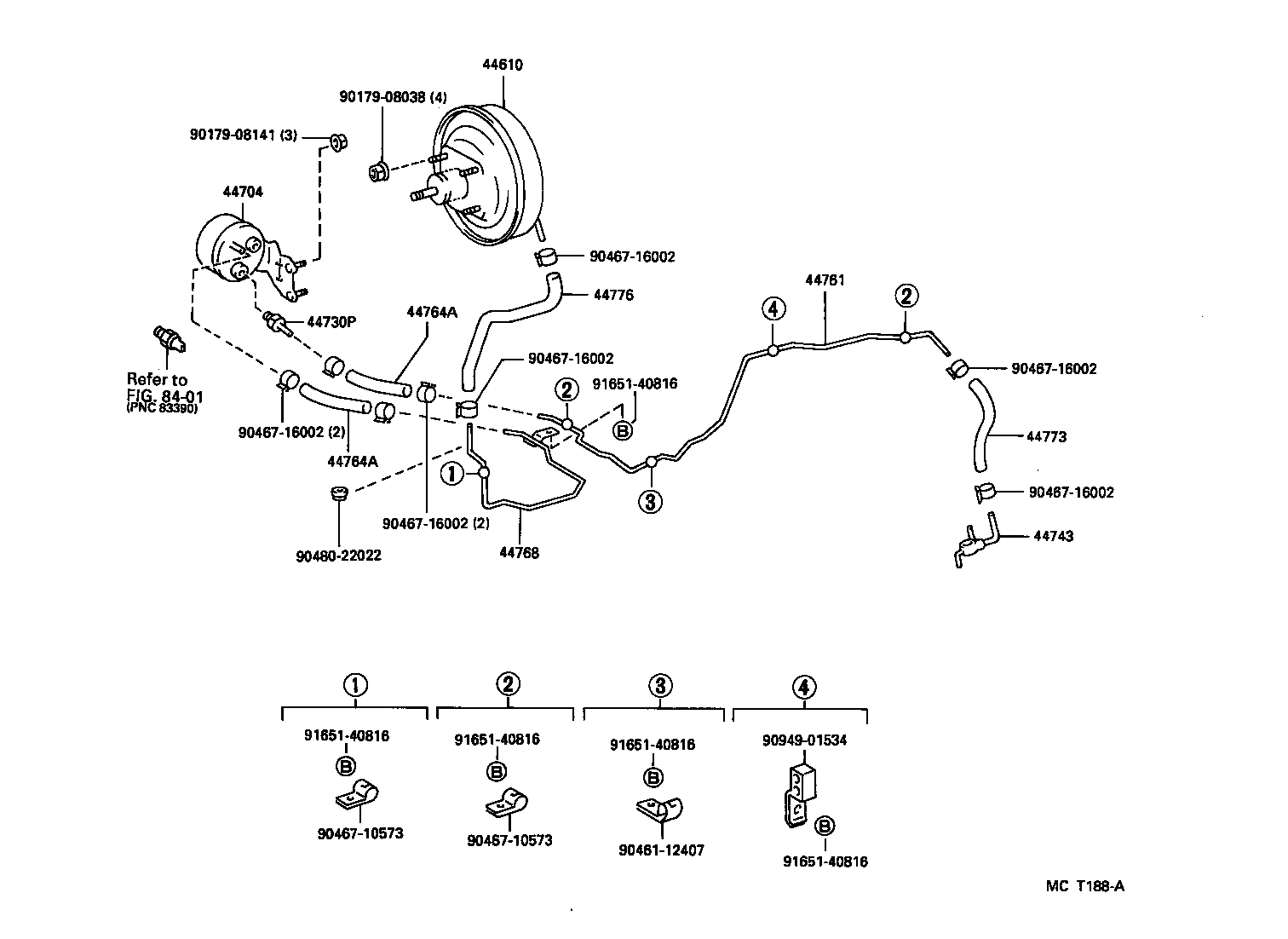

Click highlighted areas on diagram

diagram 44610 44704 44730P 44743 44761 44764A 44764A 44768 44773 44776 8401 9017908038 9017908141 9046112407 9046710573 9046710573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9048022022 9094901534 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-25200

LY151,161

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25100

LY101,111,151,161

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

LY101,111,151,161

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09070

LY151,161

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25110

LY101,111,151,161

 1
44764A - HOSE, BOOSTER VACUUM
90445-17141

LY101,111,151,161

 2
44764A - HOSE, BOOSTER VACUUM
90445-17141

LY101,111,151,161

 2
44768 - TUBE, BOOSTER VACUUM
44768-25030

LY101,111,151,161,YY101

 1
44773 - HOSE, VACUUM, NO.2
95447-09250

LY101,111,151,161

 1
44776 - HOSE, BRAKE BOOSTER
44776-37020

LY101,111,151,161,YY101

 1
Common parts
90179-08038
90179-08141
90461-12407
90467-10573
90467-16002
90480-22022
90949-01534
91651-40816
Linked diagrams
8401
