LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY151,161

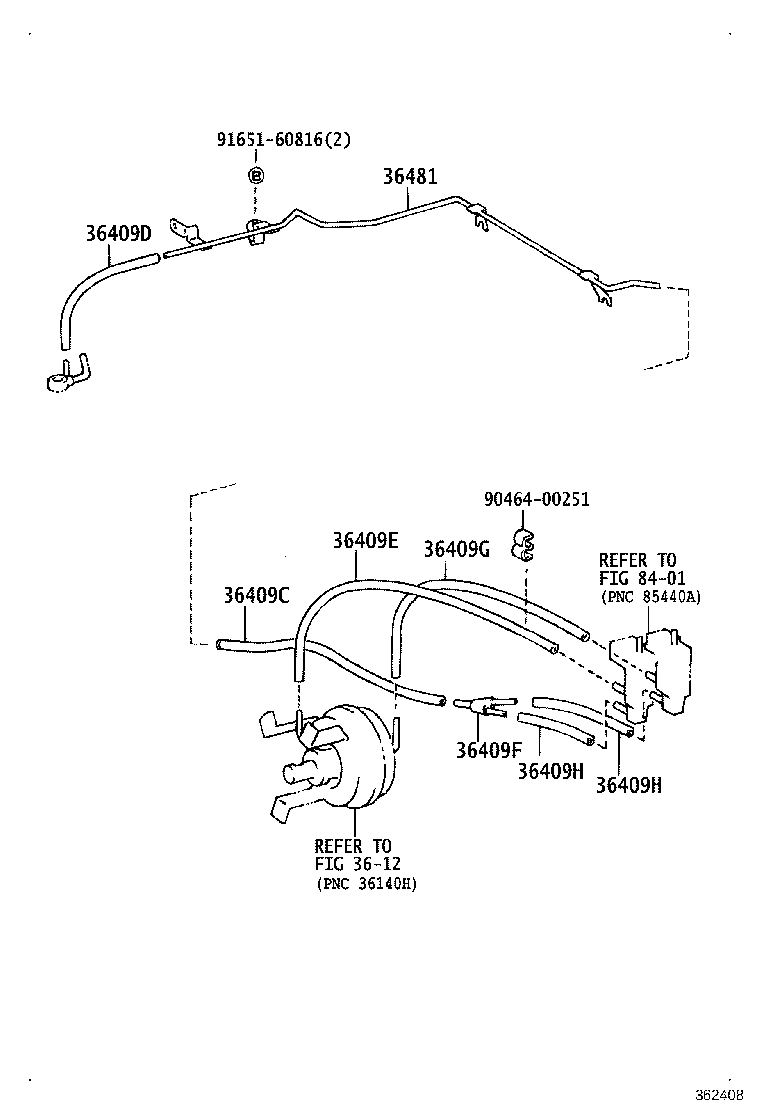

Click highlighted areas on diagram

diagram 3612 36409C 36409D 36409E 36409F 36409G 36409H 36409H 36481 8401 9046400251 9165160816
Part # Description Qty Price
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
90999-92002

LY151,161

*H,L=300

 1
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

LY151,161

*H,L=300

 1
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90445-10046

LY151,161

長さ=340

 1
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90904-13026

LY151,161

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
90445-10046

LY151,161

長さ=340

 1
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
90445-10026

LY151,161

長さ=120

 2
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
90445-10026

LY151,161

長さ=120

 2
36481 - TUBE, FRONT DRIVE VACUUM, NO.1
36481-25010

LY151,161

 1
Common parts
90464-00251
91651-60816
Linked diagrams
3612
8401
