LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

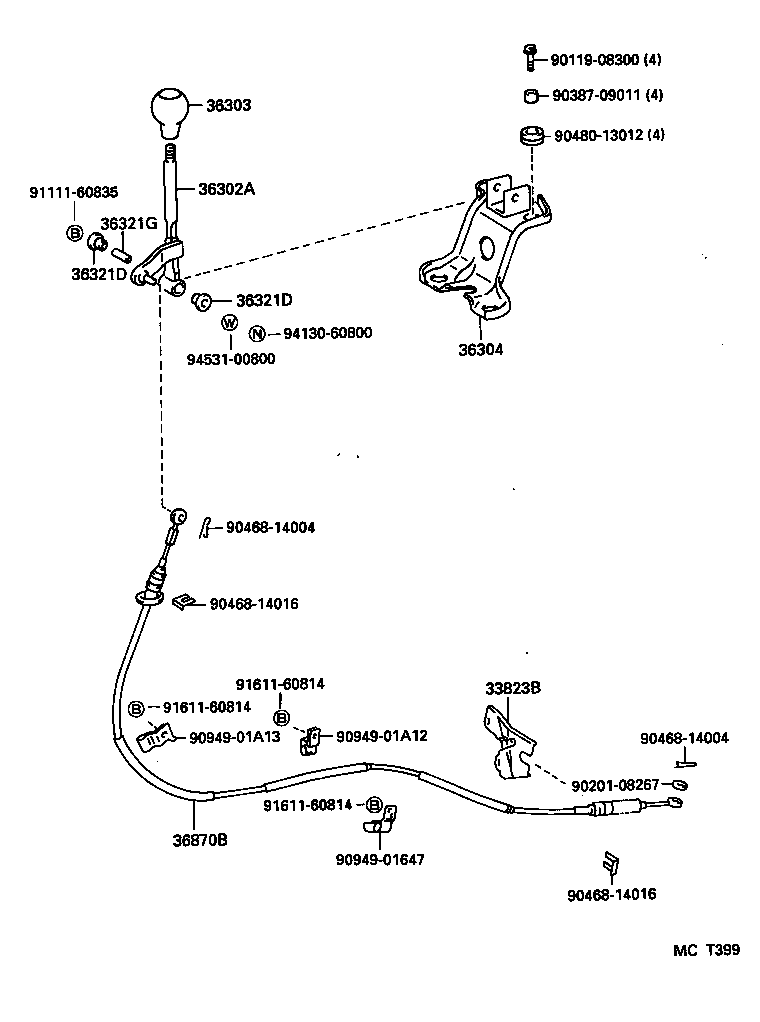

ILLUST NO. 1 OF 2(9505- )LY151,161

Click highlighted areas on diagram

diagram 33823B 36302A 36303 36304 36321D 36321D 36321G 36870B 9011908300 9020108267 9038709011 9046814004 9046814004 9046814016 9046814016 9048013012 9094901647 9094901A12 9094901A13 9111160835 9161160814 9161160814 9161160814 9413060800 9453100800
Part # Description Qty Price
33823B - BRACKET, TRANSFER CONTROL CABLE
33823-26020

LY151,161

 1
36302A - LEVER SUB-ASSY, TRANSFER SHIFT, NO.1
36302-26031

LY151,161

 1
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-26021B0

LY151,161

BLUISH GRAY,TRIM1#

 1
36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
36304-26031

LY151,161

 1
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006

LY151,161

 2
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006

LY151,161

 2
36321G - COLLER (FOR TRANSFER SHIFT LEVER)
90387-08069

LY151,161

 1
36870B - CABLE ASSY, TRANSFER CONTROL
36870-25010

LY151,161

 1
Common parts
90119-08300
90201-08267
90387-09011
90468-14004
90468-14016
90480-13012
90949-01647
90949-01A12
90949-01A13
91111-60835
91611-60814
94130-60800
94531-00800

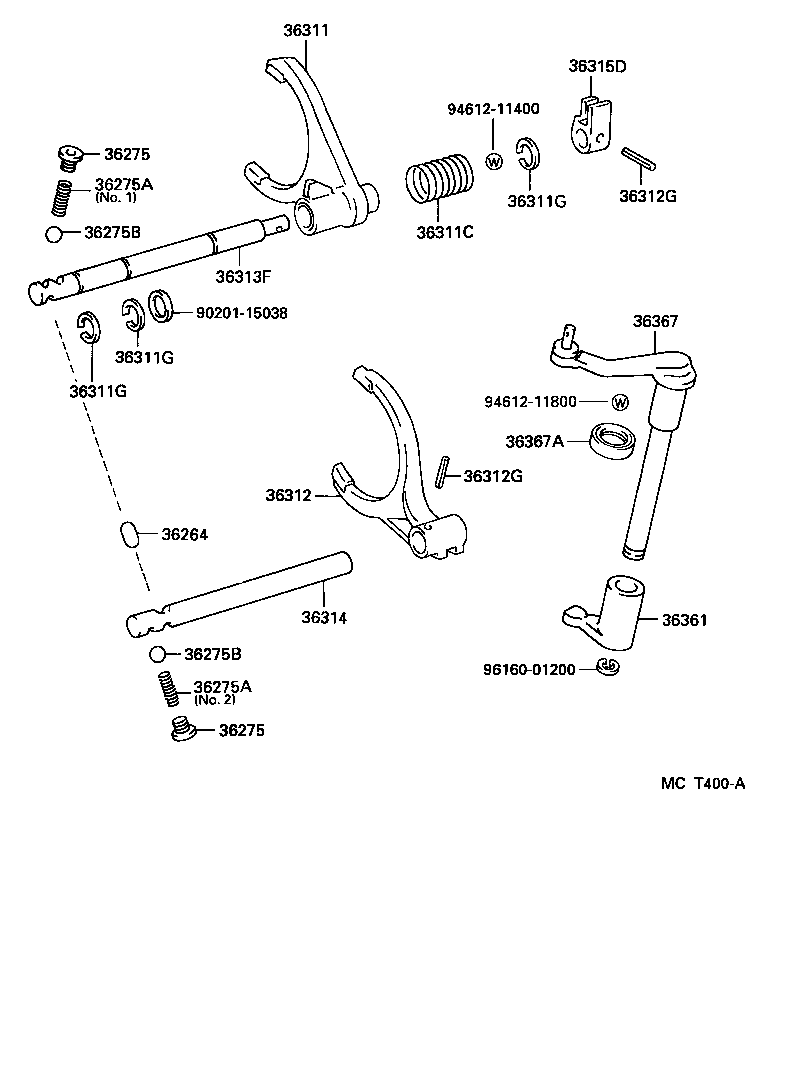

ILLUST NO. 2 OF 2(9505- )LY151,161

Click highlighted areas on diagram

diagram 36264 36275 36275 36275A 36275A 36275B 36275B 36311 36311C 36311G 36311G 36311G 36312 36312G 36312G 36313F 36314 36315D 36361 36367 36367A 9020115038 9461211400 9461211800 9616001200
Part # Description Qty Price
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-10013

LY151,161

長さ=17.08,外径=9.53

 1
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

LY151,161

 2
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

LY151,161

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-12106

LY151,161

長さ=52.3,NO.1

 1
90501-16094

LY151,161

長さ=38.4,NO.2

 1
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-12106

LY151,161

長さ=52.3,NO.1

 1
90501-16094

LY151,161

長さ=38.4,NO.2

 1
36275B - BALL, SHIFT DETENT
90360-10003

LY151,161

外径=9.52,ｽﾁｰﾙ

 2
36275B - BALL, SHIFT DETENT
90360-10003

LY151,161

外径=9.52,ｽﾁｰﾙ

 2
36311 - FORK, TRANSFER GEAR SHIFT, NO.1
36301-25010

LY151,161

 1
36311C - SPRING, COMPRESION (FOR SHIFT FORK)
90501-26077

LY151,161

 1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13001

LY151,161

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13001

LY151,161

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13001

LY151,161

 3
36312 - FORK, TRANSFER GEAR SHIFT, NO.2
36312-27010

LY151,161

 1
36312G - PIN, SLOTTED SPRING
90254-05001

LY151,161

 2
36312G - PIN, SLOTTED SPRING
90254-05001

LY151,161

 2
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-25010

LY151,161

 1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-28020

LY151,161

 1
36315D - HEAD, TRANSFER GEAR SHIFT, NO.1
36315-25010

LY151,161

 1
36361 - LEVER, TRANSFER SHIFT, INNER
36361-27020

LY151,161

 1
36367 - SHAFT, TRANSFER SHIFT INNER LEVER
36367-27010

LY151,161

 1
36367A - SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT)
90311-18006

LY151,161

 1
Common parts
90201-15038
94612-11400
94612-11800
96160-01200
