LY151-TBMDS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )LY151,161

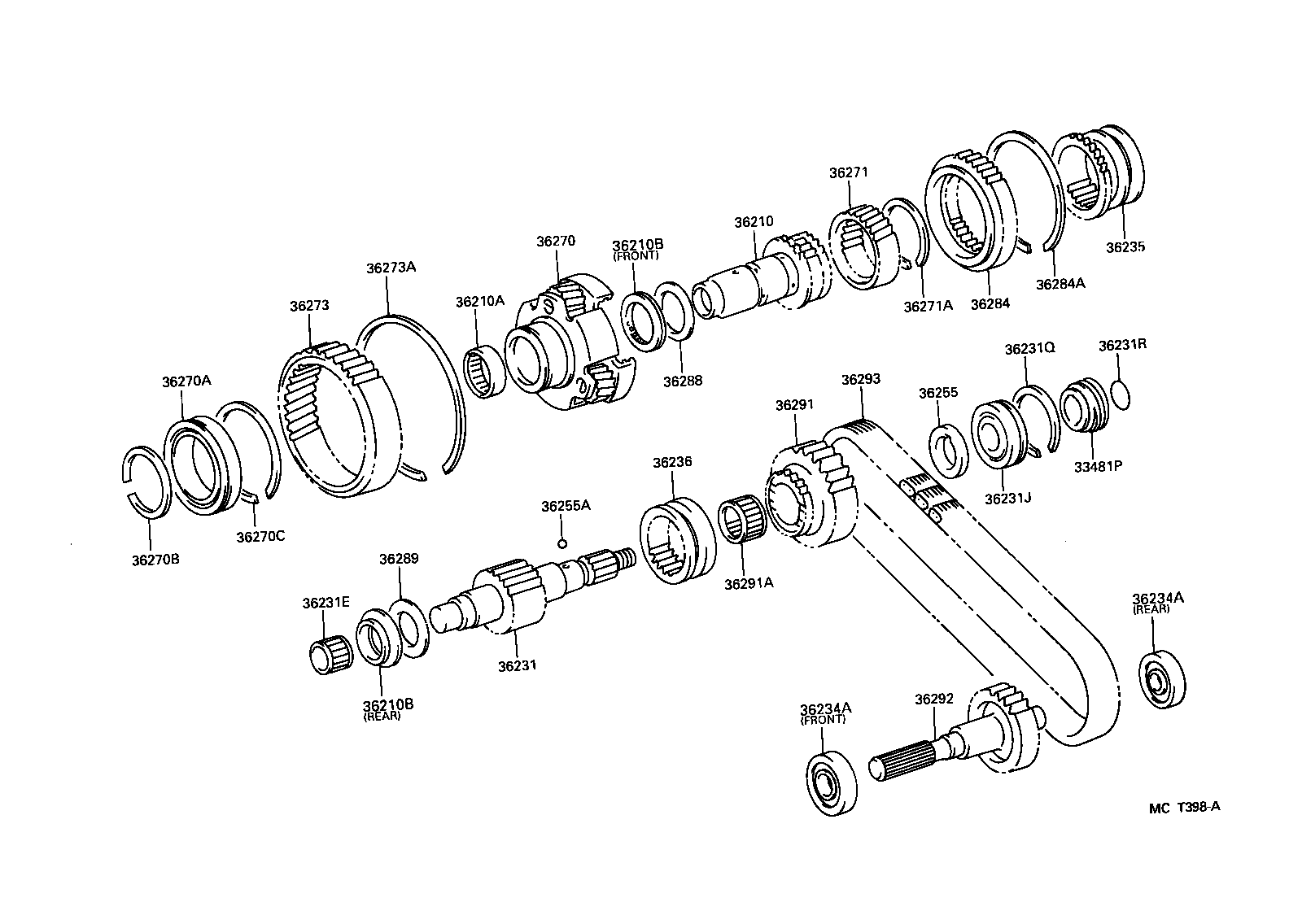

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-26080 |
LY151,161 歯数=6,ﾏｰｸ 1 |
1 | ||
| 36210 - SHAFT ASSY, TRANSFER INPUT | ||||
| 36210-28020 |
LY151,161 |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90364-47001 |
LY151,161 |
1 | ||
| 36210B - BEARING, THRUST (FOR TRANSFER INPUT SHAFT) | ||||
| 90374-49001 |
LY151,161 FRONT |
1 | ||
| 90374-39002 |
LY151,161 REAR |
1 | ||
| 36210B - BEARING, THRUST (FOR TRANSFER INPUT SHAFT) | ||||
| 90374-49001 |
LY151,161 FRONT |
1 | ||
| 90374-39002 |
LY151,161 REAR |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-28010 |
LY151,161 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
LY151,161 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32006 |
LY151,161 |
1 | ||
| 36231Q - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR BEARIN | ||||
| 90520-71221 |
LY151,161 |
1 | ||
| 36231R - RING, O (FOR TRANSFER OUTPUT SHAFT) | ||||
| 96721-24028 |
LY151,161 |
2 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-30064 |
LY151,161 FRONT |
1 | ||
| 90363-28004 |
LY151,161 REAR |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-30064 |
LY151,161 FRONT |
1 | ||
| 90363-28004 |
LY151,161 REAR |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-28010 |
LY151,161 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-28011 |
LY151,161 |
1 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35020 |
LY151,161 |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
LY151,161 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-28030 |
LY151,161 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90363-75001 |
LY151,161 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90520-72003 |
LY151,161 厚さ=1.55,ﾏｰｸ 3 |
1 | ||
| 90520-72004 |
LY151,161 厚さ=1.60,ﾏｰｸ 4 |
1 | ||
| 90520-72001 |
LY151,161 厚さ=1.45,ﾏｰｸ 1 |
1 | ||
| 90520-72005 |
LY151,161 厚さ=1.65,ﾏｰｸ 5 |
1 | ||
| 90520-72002 |
LY151,161 厚さ=1.50,ﾏｰｸ 2 |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99001 |
LY151,161 |
1 | ||
| 36271 - GEAR, TRANSFER LOW PLANETARY SUN | ||||
| 36271-28010 |
LY151,161 |
1 | ||
| 36271A - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY SUN GEAR) | ||||
| 90520-68001 |
LY151,161 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35010 |
LY151,161 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90521-99052 |
LY151,161 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-26010 |
LY151,161 |
1 | ||
| 36284A - RING, HOLE SNAP(FOR TRANSFER SPLINE PIECE) | ||||
| 90521-99056 |
LY151,161 |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
LY151,161 |
1 | ||
| 36289 - RACE, TRANSFER THRUST BEARING, NO.2 | ||||
| 36289-28010 |
LY151,161 |
1 | ||
| 36291 - SPROCKET, TRANSFER DRIVE | ||||
| 36291-25010 |
LY151,161 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37006 |
LY151,161 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-25010 |
LY151,161 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-25010 |
LY151,161 |
1 | ||
