LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY151,161

Click highlighted areas on diagram

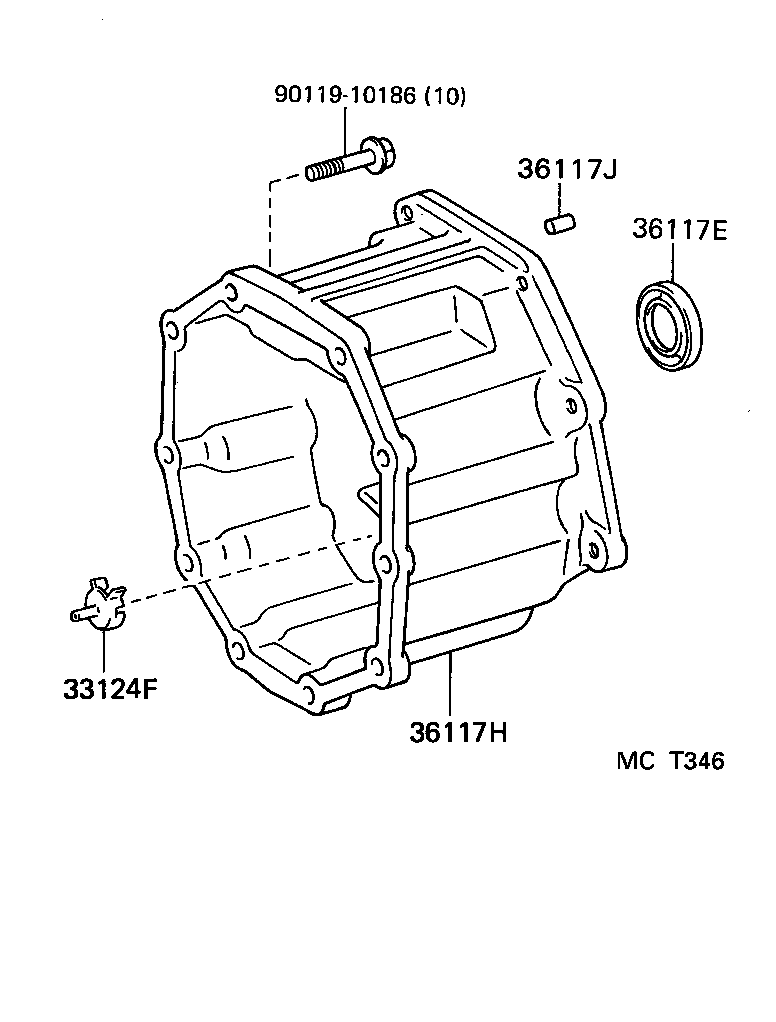

diagram 33124F 36117E 36117H 36117J 9011910186
Part # Description Qty Price
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35100

LY151,161

 1
36117E - SEAL, OIL(FOR TRANSFER ADAPTER)
90310-40003

LY151,161

 1
90310-40004

LY151,161

 1
36117H - ADAPTER SUB-ASSY, TRANSFER
36117-26030

LY151,161

 1
36117J - PIN, STRAIGHT
90250-10214

LY151,161

 2
Common parts
90119-10186
