LY151-TBMDS (1995)
Toyota Hiace Truck

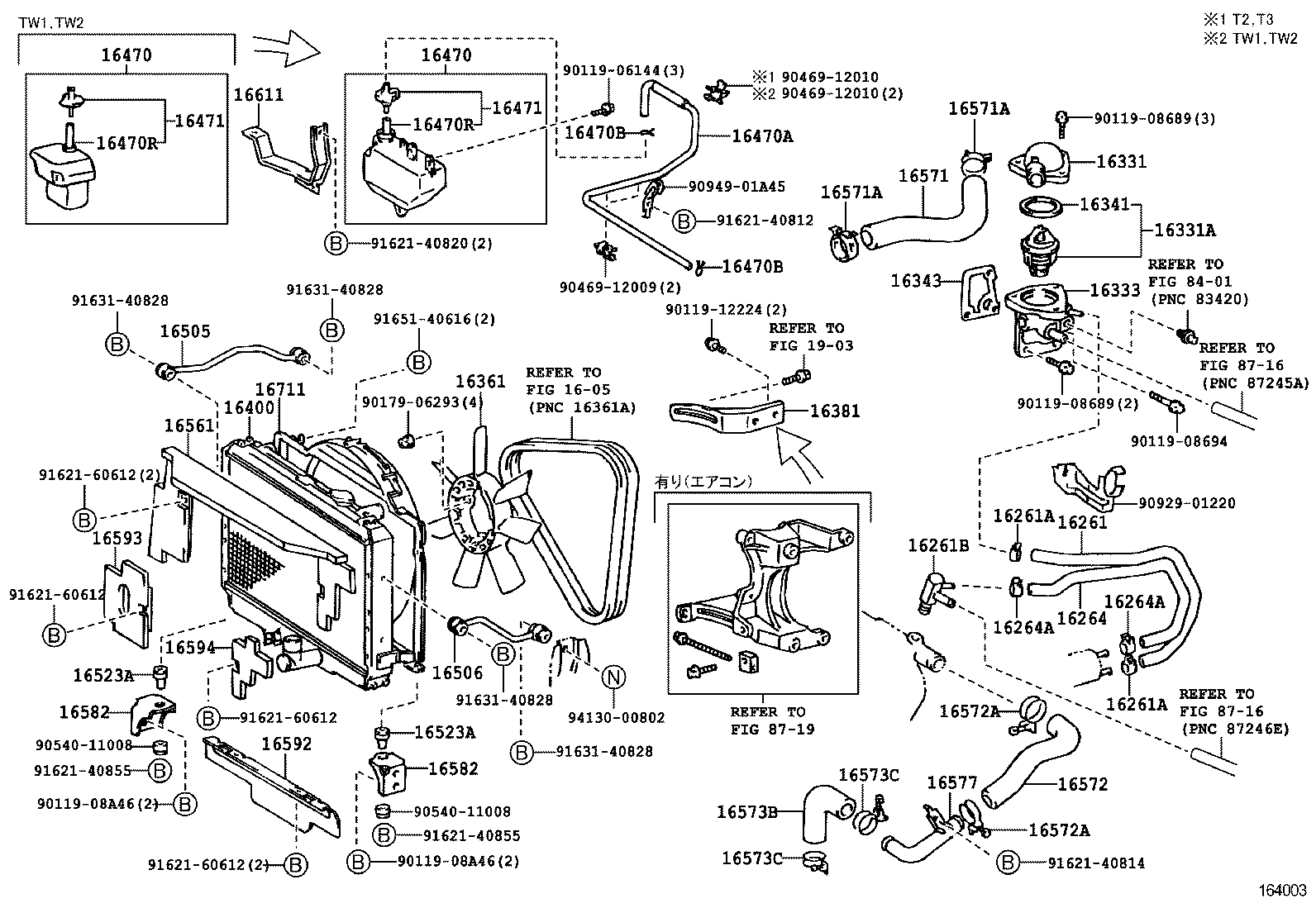

ILLUST NO. 1 OF 2(9505- )3L..LY151,161
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54090 |
3L..LY101,111,151,161 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
3L..LY101,111,151,161 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
3L..LY101,111,151,161 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
3L..LY101,111,151,161 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54080 |
3L..LY101,111,151,161 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3L..LY101,111,151,161 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3L..LY101,111,151,161 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54090 |
3L..LY101,111,151,161 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54010 |
3L..LY101,111,151,161 *WAX 88−100 |
1 | ||
| 16340-54010 |
3L..LY101,111,151,161 *WAX 88−100,MARK KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54113 |
3L..LY101,111,151,161..MTM |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
3L..LY101,111,151,161 |
2 | ||
| 16341-35010 |
3L..LY101,111,151,161 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
3L..LY101,111,151,161 |
1 | ||
| 16361 - FAN | ||||
| 16361-54070 |
3L..LY101,111,151,161..MTM |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54110 |
3L..LY151,161 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B210 |
3L..LY151,161 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54280 |
3L..LY101,111,151,161..T1,T2,T3 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54280 |
3L..LY101,111,151,161..T1,T2,T3 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-58010 |
3L..LY101,111,151,161..T1,T2,T3 長さ=1670 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3L..LY101,111,151,161 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3L..LY101,111,151,161 |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3L..LY101,111,151,161..T1,T2,T3 長さ=600 |
1 | ||
| 90445-12078 |
3L..LY101,111,151,161..T1,T2,T3 長さ=600 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3L..LY101,111,151,161..T1,T2,T3 長さ=600 |
1 | ||
| 90445-12078 |
3L..LY101,111,151,161..T1,T2,T3 長さ=600 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54250 |
3L..LY101,111,151,161..T1,T2,T3 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54250 |
3L..LY101,111,151,161..T1,T2,T3 |
1 | ||
| 16505 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 16505-54030 |
3L..LY151,161 |
1 | ||
| 16506 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 16506-54010 |
3L..LY101,111,151,161 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 53210-36010 |
3L..LY101,111,151,161 |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 53210-36010 |
3L..LY101,111,151,161 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-71010 |
3L..LY101,111,151,161 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54390 |
3L..LY101,111,151,161 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3L..LY101,111,151,161 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3L..LY101,111,151,161 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54440 |
3L..LY151,161 |
1 | ||
| 16572-54530 |
3L..LY151,161 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
3L..LY101,111,151,161 RADIATOR PIPE SIDE |
1 | ||
| 96111-10460 |
3L..LY101,111,151,161 ｴﾝｼﾞﾝ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
3L..LY101,111,151,161 RADIATOR PIPE SIDE |
1 | ||
| 96111-10460 |
3L..LY101,111,151,161 ｴﾝｼﾞﾝ側 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-54110 |
3L..LY101,111,151,161 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10460 |
3L..LY101,111,151,161 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10460 |
3L..LY101,111,151,161 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54170 |
3L..LY151,161 |
1 | ||
| 16577-54190 |
3L..LY151,161 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54040 |
3L..LY151,161 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54040 |
3L..LY151,161 |
2 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54050 |
3L..LY151,161 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54070 |
3L..LY101,111,151,161 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54090 |
3L..LY101,111,151,161 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54130 |
3L..LY101,111,151,161..T1,T2,T3 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-54480 |
3L..LY151,161 |
1 | ||
| 16711-54590 |
3L..LY151,161 |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-08A46 | ||||
| 90119-12224 | ||||
| 90179-06293 | ||||
| 90469-12009 | ||||
| 90469-12010 | ||||
| 90540-11008 | ||||
| 90929-01220 | ||||
| 90949-01A45 | ||||
| 91621-40812 | ||||
| 91621-40814 | ||||
| 91621-40820 | ||||
| 91621-40855 | ||||
| 91621-60612 | ||||
| 91631-40828 | ||||
| 91651-40616 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1903 | ||||
| 8401 | ||||
| 8716 | ||||
| 8719 | ||||

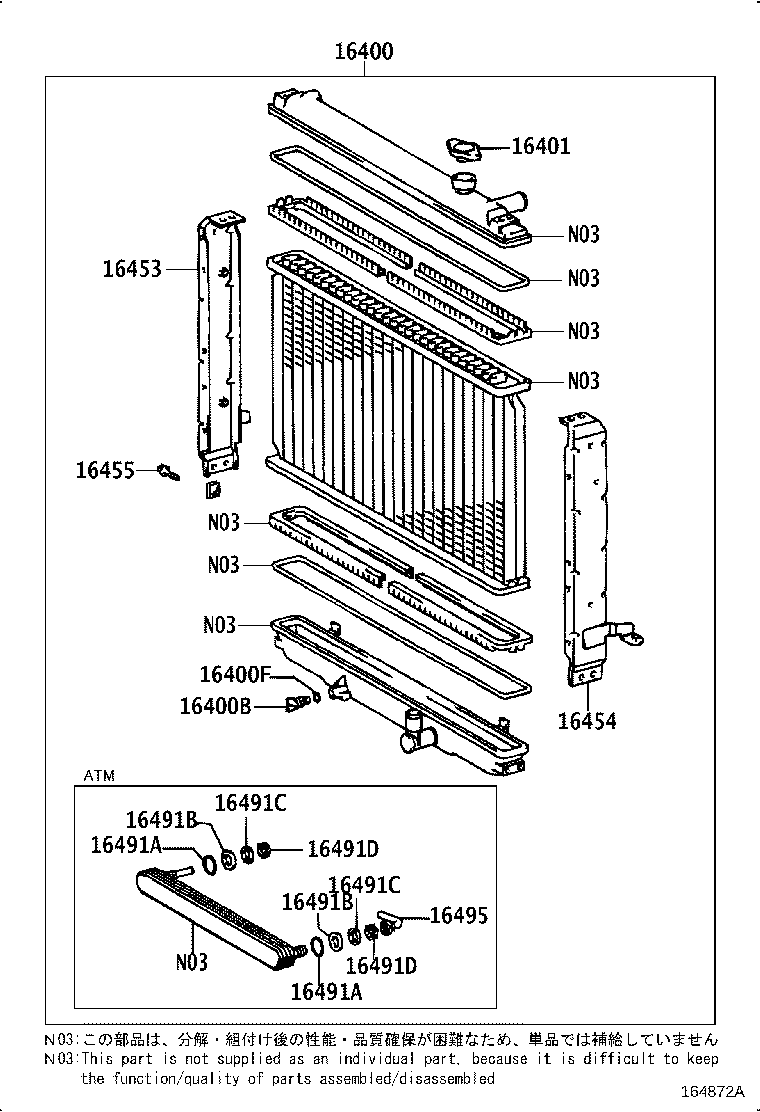

ILLUST NO. 2 OF 2(9505- )3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-5B210 |
3L..LY151,161 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
3L..LY101,111,151,161 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
3L..LY101,111,151,161 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
3L..LY101,111,151,161 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-5B210 |
3L..LY151,161 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-5B210 |
3L..LY151,161 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
3L..LY101,111,151,161 |
8 | ||

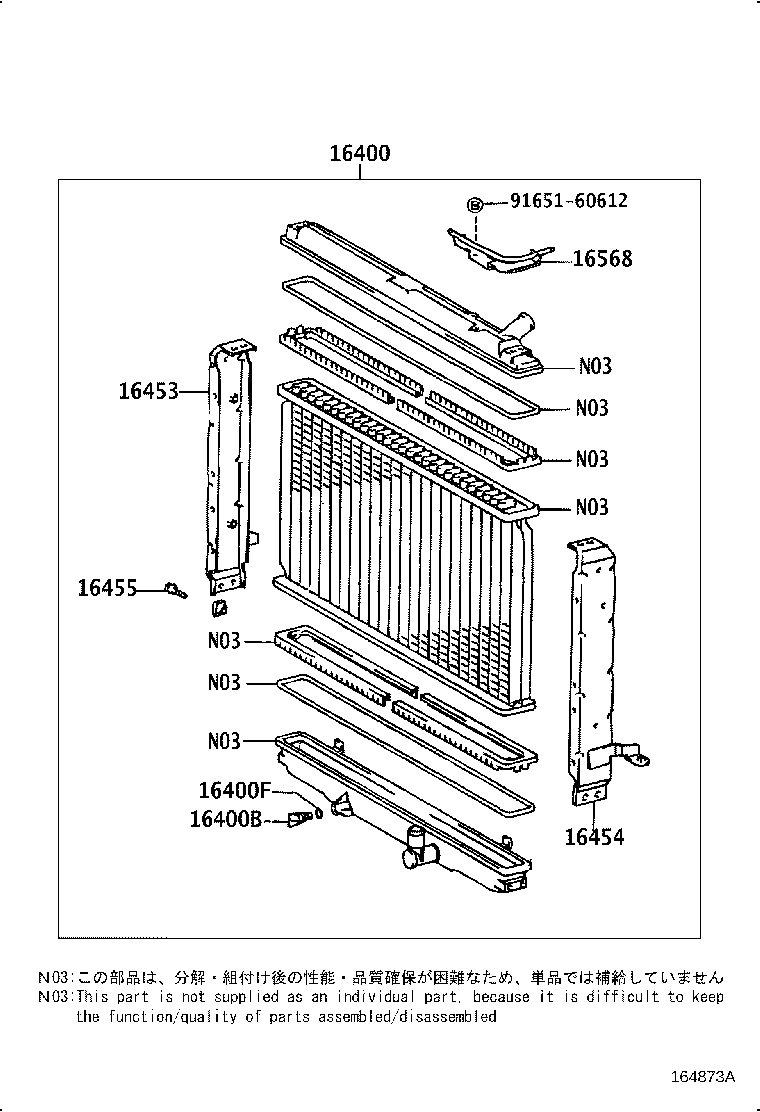

ILLUST NO. 2 OF 2(9505- )3L
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-5B210 |
3L..LY151,161 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
3L..LY101,111,151,161 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
3L..LY101,111,151,161 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-5B210 |
3L..LY151,161 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-5B210 |
3L..LY151,161 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
3L..LY101,111,151,161 |
8 | ||
| Common parts | ||||
| 91651-60612 | ||||
