LY151-PSMAS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

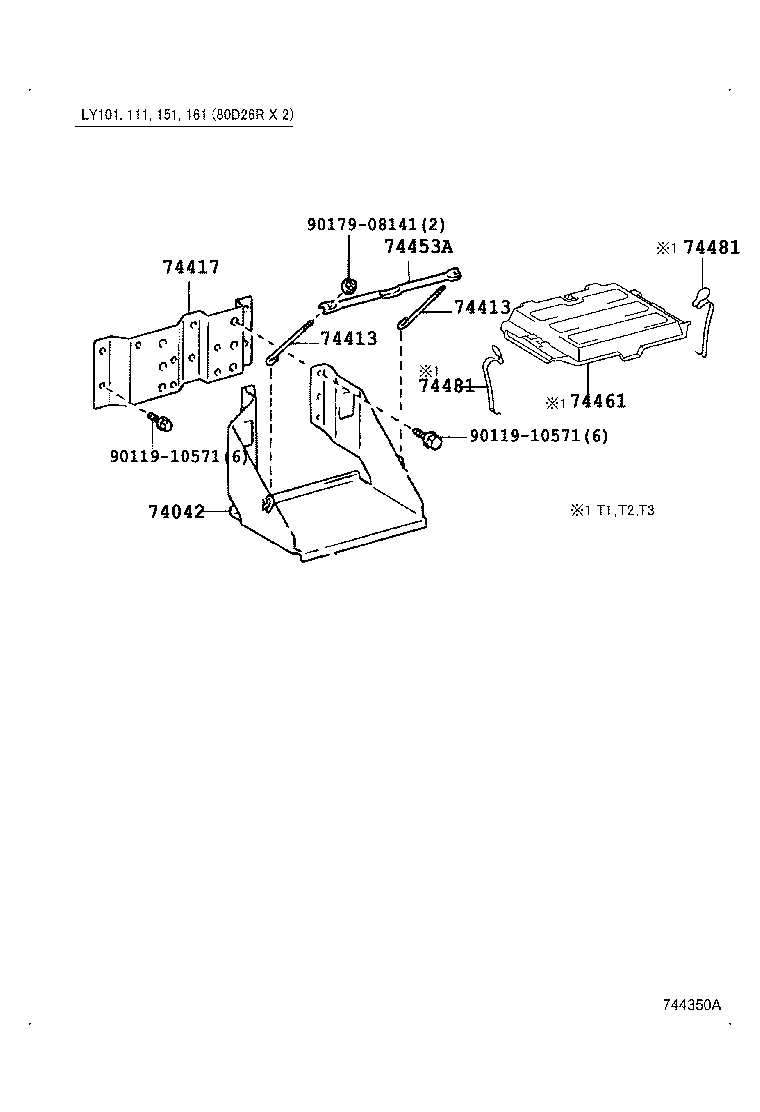

Click highlighted areas on diagram

diagram 74042 74413 74413 74417 74453A 74461 74481 74481 9011910571 9011910571 9017908141
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-26010

LY101,111,151,161

 1
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74417 - BRACKET, BATTERY CARRIER
74417-26101

LY101,111,151,161,YY101..TW1,TW2

 1
74453A - BAR, BATTERY SET PLATE
74453-36070

LY101,111,151,161

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 1
74453-25090

LY101,111,151,161,YY101..MTM

 1
Common parts
90119-10571
90179-08141

(9505- )

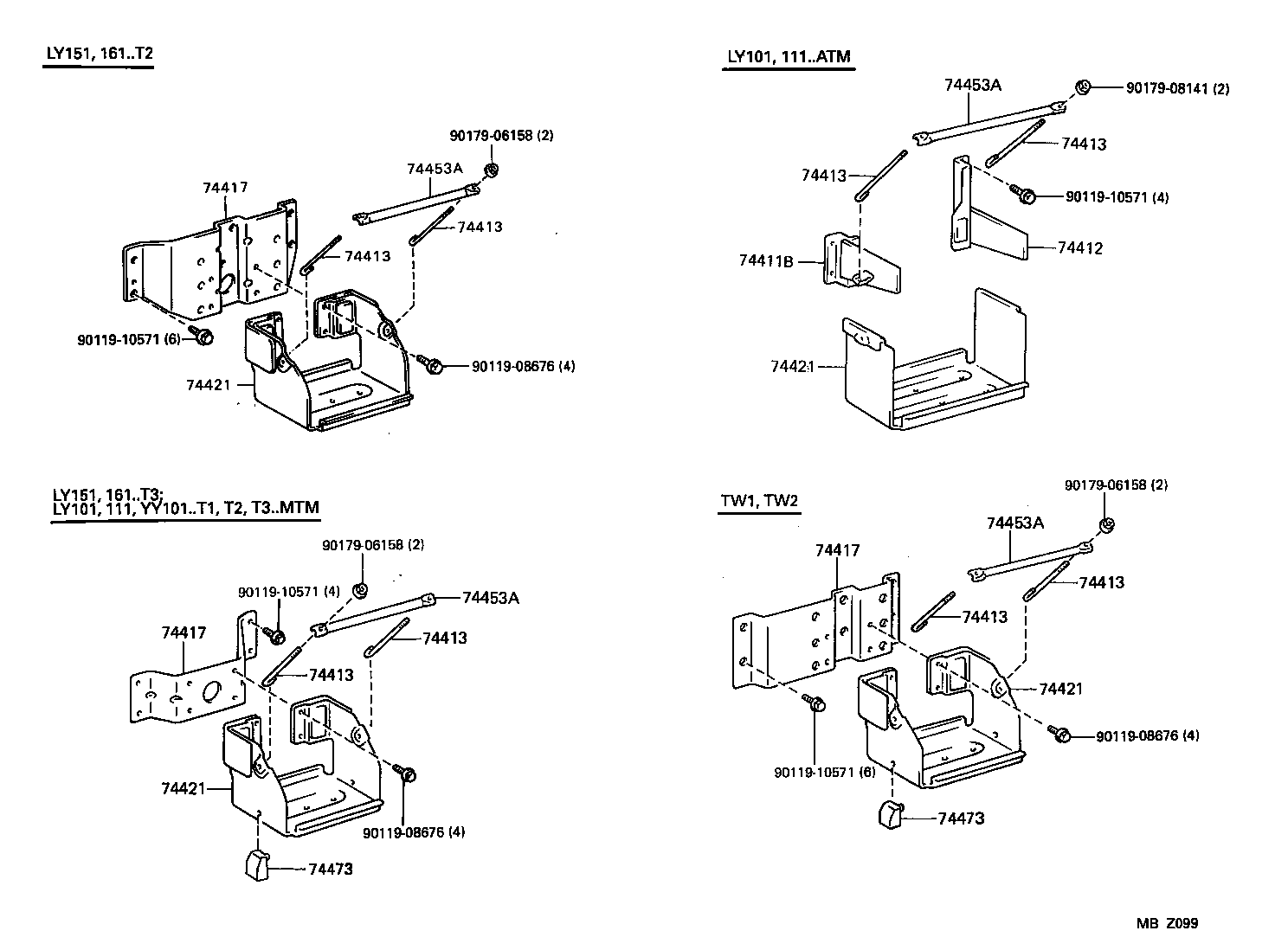

Click highlighted areas on diagram

diagram 74411B 74412 74413 74413 74413 74413 74413 74413 74413 74413 74417 74417 74417 74421 74421 74421 74421 74453A 74453A 74453A 74453A 74473 74473 9011908676 9011908676 9011908676 9011910571 9011910571 9011910571 9011910571 9017906158 9017906158 9017906158 9017908141
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

LY101,111,151,161..MTM

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 2
74451-25020

LY101,111,151,161,YY101..MTM

 2
74417 - BRACKET, BATTERY CARRIER
74417-26101

LY101,111,151,161,YY101..TW1,TW2

 1
74417 - BRACKET, BATTERY CARRIER
74417-26101

LY101,111,151,161,YY101..TW1,TW2

 1
74417 - BRACKET, BATTERY CARRIER
74417-26101

LY101,111,151,161,YY101..TW1,TW2

 1
74421 - HANGER, BATTERY
74421-26020

LY101,111,151,161,YY101..MTM

 1
74421 - HANGER, BATTERY
74421-26020

LY101,111,151,161,YY101..MTM

 1
74421 - HANGER, BATTERY
74421-26020

LY101,111,151,161,YY101..MTM

 1
74421 - HANGER, BATTERY
74421-26020

LY101,111,151,161,YY101..MTM

 1
74453A - BAR, BATTERY SET PLATE
74453-36070

LY101,111,151,161

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 1
74453-25090

LY101,111,151,161,YY101..MTM

 1
74453A - BAR, BATTERY SET PLATE
74453-36070

LY101,111,151,161

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 1
74453-25090

LY101,111,151,161,YY101..MTM

 1
74453A - BAR, BATTERY SET PLATE
74453-36070

LY101,111,151,161

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 1
74453-25090

LY101,111,151,161,YY101..MTM

 1
74453A - BAR, BATTERY SET PLATE
74453-36070

LY101,111,151,161

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 1
74453-25090

LY101,111,151,161,YY101..MTM

 1
Common parts
90119-08676
90119-10571
90179-06158
90179-08141
