LY111-TGMBS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )3L..LY101,111

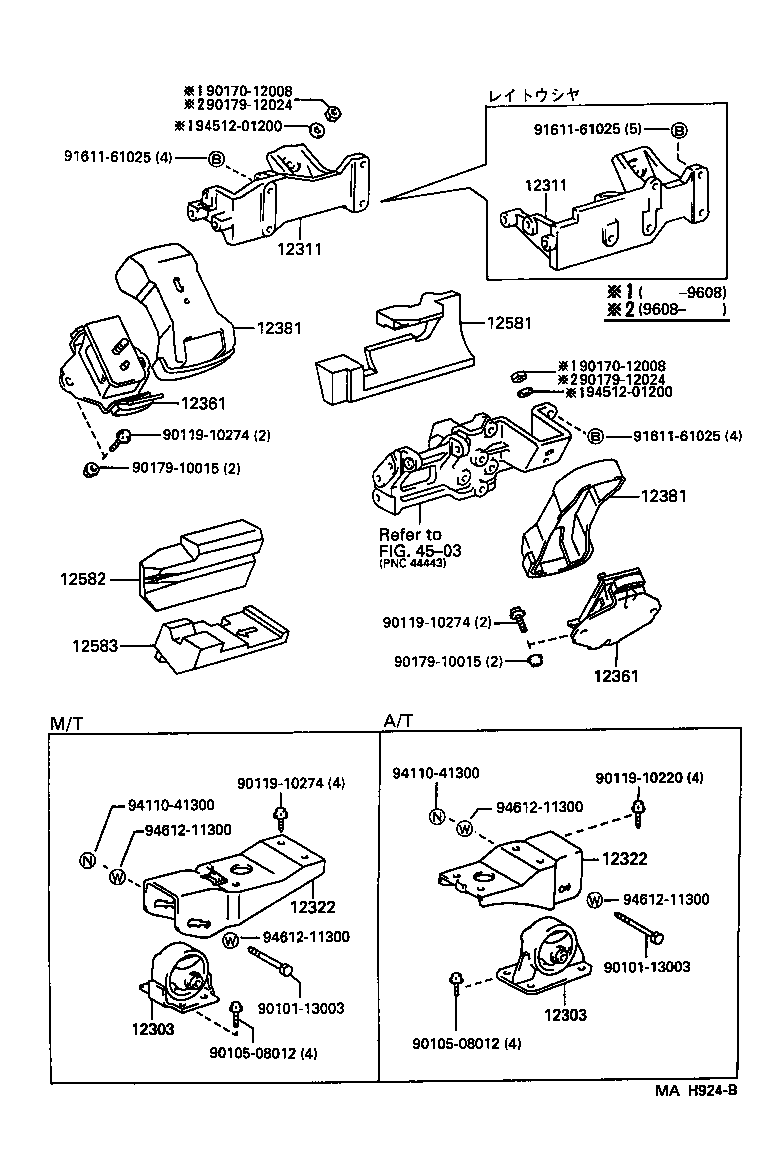

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-67020 |
3L..LY101,111..MTM |
1 | ||
| 12303-67021 |
3L..LY101,111..MTM |
1 | ||
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-67020 |
3L..LY101,111..MTM |
1 | ||
| 12303-67021 |
3L..LY101,111..MTM |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-54091 |
3L..LY101,111 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-54091 |
3L..LY101,111 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-54050 |
3L..LY101,111..MTM |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-54050 |
3L..LY101,111..MTM |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-54200 |
3L..LY101,111 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-54200 |
3L..LY101,111 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-54050 |
3L..LY101,111,151,161 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-54050 |
3L..LY101,111,151,161 |
2 | ||
| 12581 - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-54010 |
3L..LY101,111,151,161 |
1 | ||
| 12582 - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-54020 |
3L..LY101,111,151,161 |
1 | ||
| 12582-54021 |
3L..LY101,111,151,161 |
1 | ||
| 12583 - INSULATOR, CYLINDER BLOCK, NO.3 | ||||
| 12583-54030 |
3L..LY101,111,151,161 |
1 | ||
| Common parts | ||||
| 90101-13003 | ||||
| 90105-08012 | ||||
| 90119-10220 | ||||
| 90119-10274 | ||||
| 90170-12008 | ||||
| 90179-10015 | ||||
| 90179-12024 | ||||
| 91611-61025 | ||||
| 94110-41300 | ||||
| 94512-01200 | ||||
| 94612-11300 | ||||
| Linked diagrams | ||||
| 4503 | ||||
