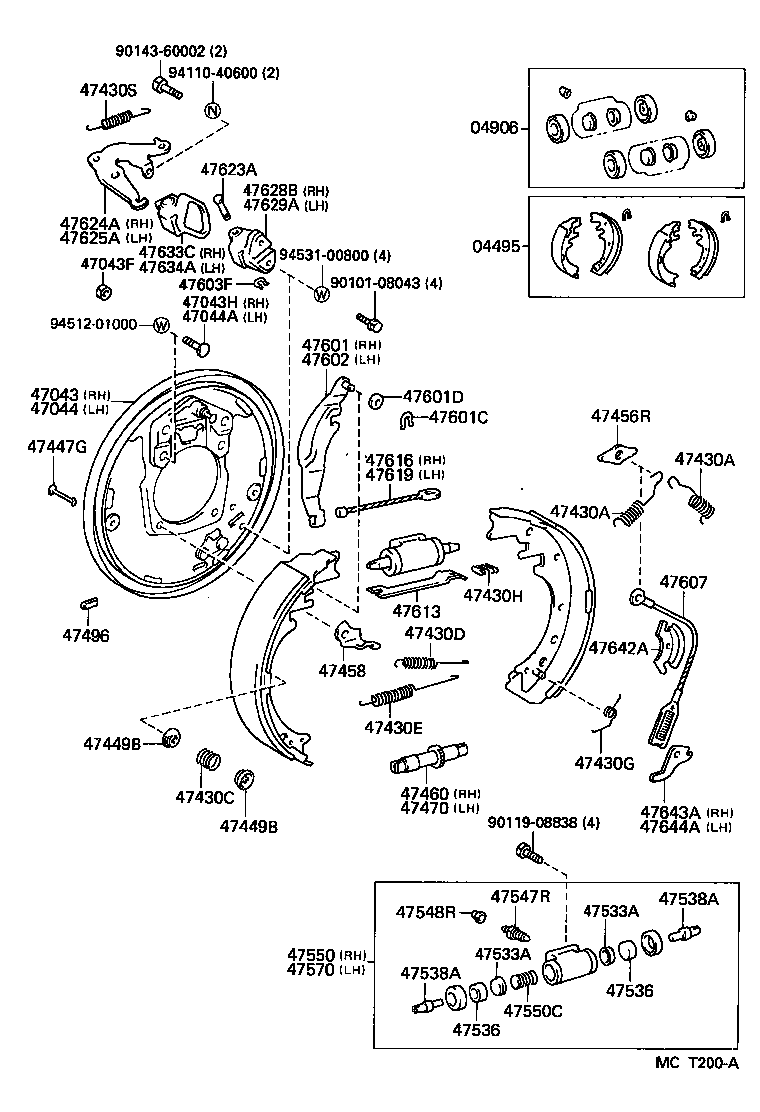

LY111-TBPBS (1995)
Toyota Hiace Truck
(9505- )LY151,161..T2 ; (9505- )LY101,111,YY101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35122 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35080 |
LY101,111,YY101..T1,T3,TW1,TW2 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26060 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LY101,111,151,161,YY101 |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10016 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 90114-10002 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26060 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10002 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 90114-10016 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
LY151,161..T2;LY101,111,YY101 |
4 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
LY151,161..T2;LY101,111,YY101 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
LY101,111,151,161,YY101 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12412 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-16343 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90508-20262 |
LY151,161..T2;LY101,111,YY101 左側 |
1 | ||
| 90508-20261 |
LY151,161..T2;LY101,111,YY101 右側 |
1 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-18012 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90506-18004 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LY151,161..T2;LY101,111,YY101 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY101,111,151,161,YY101 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY101,111,151,161,YY101 |
8 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-20010 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47458 - BRACKET, REAR BRAKE SHOE RETURN SPRING | ||||
| 47458-35020 |
LY151,161..T2;LY101,111,YY101 左側 |
1 | ||
| 47457-35020 |
LY151,161..T2;LY101,111,YY101 右側 |
1 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30020 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30020 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26070 |
LY101,111,YY101..T1,T3,TW1,TW2 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26070 |
LY101,111,YY101..T1,T3,TW1,TW2 |
4 | ||
| 47538A - LINK, WHEEL CYLINDER CONNECTING | ||||
| 47538-35010 |
LY151,161..T2;LY101,111,YY101 |
4 | ||
| 47538A - LINK, WHEEL CYLINDER CONNECTING | ||||
| 47538-35010 |
LY151,161..T2;LY101,111,YY101 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LY101,111,151,161,YY101 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-26090 |
LY101,111,YY101..T1,T3,TW1,TW2 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-20010 |
LY101,111,YY101..T1,T3,TW1,TW2 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-26090 |
LY101,111,YY101..T1,T3,TW1,TW2 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-26020 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LY101,111,151,161,YY101 厚さ=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-26020 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47603F - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) | ||||
| 90213-06013 |
LY101,111,151,161,YY101 |
2 | ||
| 47607 - CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST | ||||
| 47607-30010 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-35020 |
LY151,161..T2;LY101,111,YY101 右側 |
1 | ||
| 47614-35020 |
LY151,161..T2;LY101,111,YY101 左側 |
1 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-26030 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-26030 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47623A - PIN(FOR PARKING BRAKE BELL CRANK) | ||||
| 90249-08075 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47624A - CRANK, PARKING BRAKE BELL, RH | ||||
| 47624-26040 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47625A - CRANK, PARKING BRAKE BELL, LH | ||||
| 47625-26040 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47628B - BRACKET, REAR BRAKE BELLCRANK, RH | ||||
| 47628-26010 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47629A - BRACKET, REAR BRAKE BELLCRANK, LH | ||||
| 47628-26010 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47633C - BOOT, REAR BRAKE BELLCRANK, RH | ||||
| 47633-26010 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47634A - BOOT, REAR BRAKE BELLCRANK, LH | ||||
| 47633-26010 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47642A - GUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE | ||||
| 47642-20010 |
LY151,161..T2;LY101,111,YY101 |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-20011 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47643-20011 |
LY151,161..T2;LY101,111,YY101 |
1 | ||
| Common parts | ||||
| 90101-08043 | ||||
| 90119-08838 | ||||
| 90143-60002 | ||||
| 94110-40600 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
