LY111-TBMBS3 (1995)
Toyota Hiace Truck

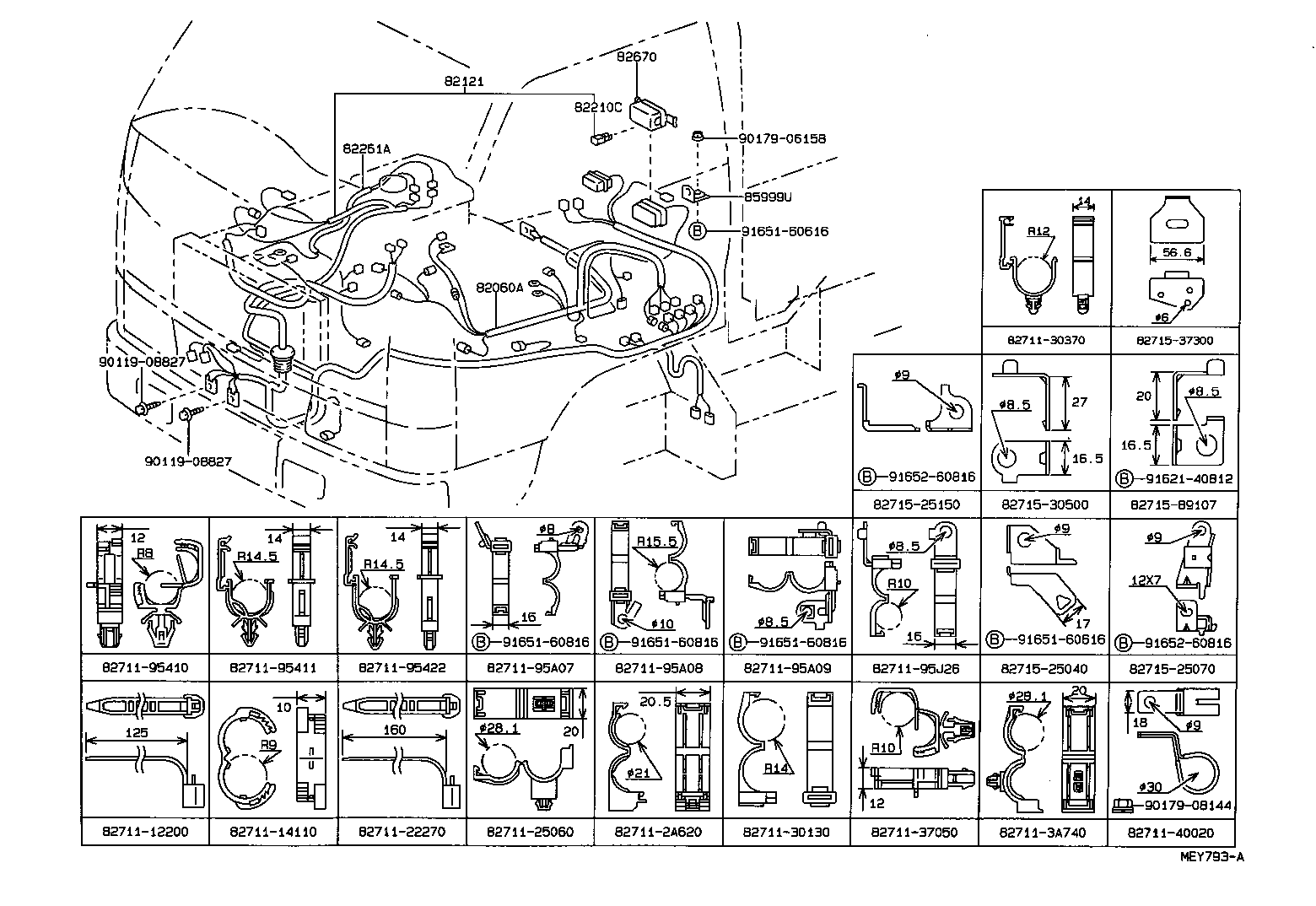

ILLUST NO. 1 OF 5(9505-9610)LY101,111,151,161
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82060A - WIRE ASSY, ENGINE, NO.2 | ||||
| 82060-26013 |
LY101,111,151,161..MTM |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-26291 |
LY101,111..MTM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LY101,111,151,161,YY101 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08189 |
LY101,111,151,161,YY101 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
LY101,111,151,161 80A,ｵｽ端子,黒 |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-25020 |
LY101,111 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-22270 | ||||
| 82711-25060 | ||||
| 82711-2A620 | ||||
| 82711-30130 | ||||
| 82711-30370 | ||||
| 82711-37050 | ||||
| 82711-3A740 | ||||
| 82711-40020 | ||||
| 82711-95410 | ||||
| 82711-95411 | ||||
| 82711-95422 | ||||
| 82711-95A07 | ||||
| 82711-95A08 | ||||
| 82711-95A09 | ||||
| 82711-95J26 | ||||
| 82715-25040 | ||||
| 82715-25070 | ||||
| 82715-25150 | ||||
| 82715-30500 | ||||
| 82715-37300 | ||||
| 82715-89107 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 90179-08144 | ||||
| 91621-40812 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91652-60816 | ||||

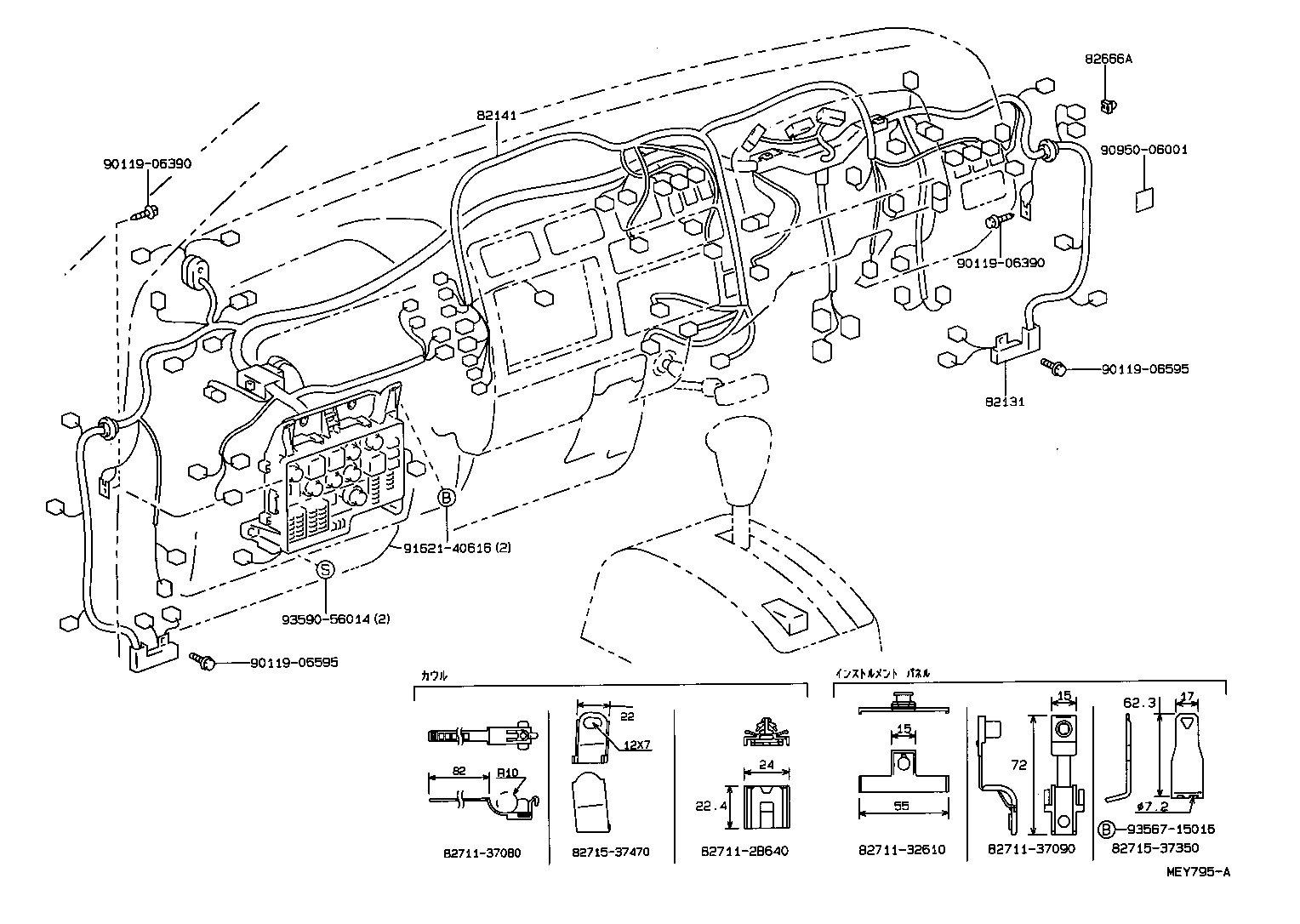

ILLUST NO. 2 OF 5(9505-9610)
COWL,INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-26034 |
LY101,111,151,161..MTM |
1 | ||
| 82131-26054 |
LY101,111,151,161..MTM ｱﾘ(*PW) OR ｱﾘ(*EL) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-25010 |
LY101,111,YY101 |
1 | ||
| 82141-37020 |
LY101,111,YY101 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-95D00 |
LY101,111,151,161,YY101 |
2 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 82711-32610 | ||||
| 82711-37080 | ||||
| 82711-37090 | ||||
| 82715-37350 | ||||
| 82715-37470 | ||||
| 90119-06390 | ||||
| 90119-06595 | ||||
| 90950-06001 | ||||
| 91621-40616 | ||||
| 93567-15016 | ||||
| 93590-56014 | ||||

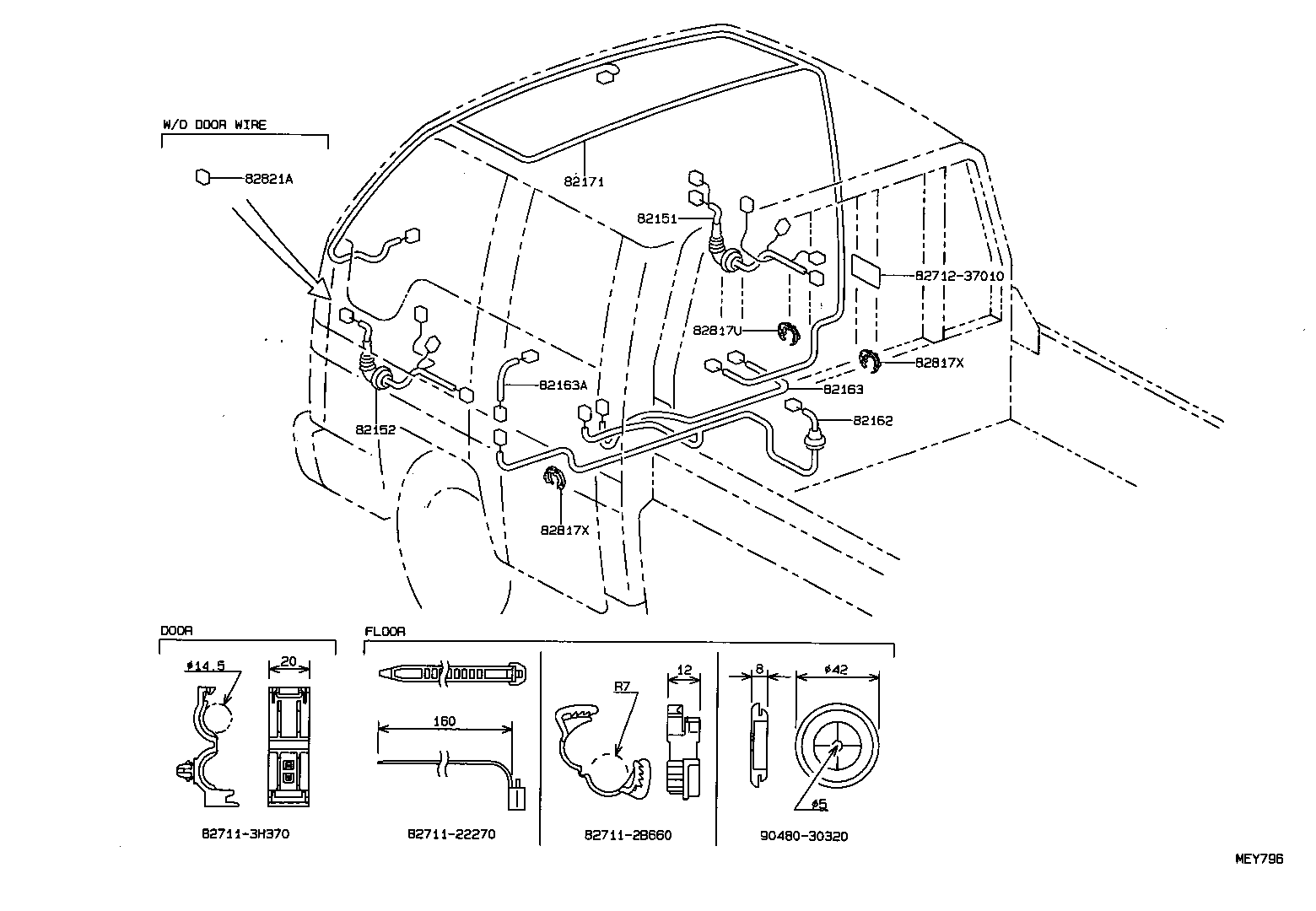

ILLUST NO. 3 OF 5(9505-9610)
DOOR,ROOF,FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-25080 |
LY101,111,151,161,YY101 ｱﾘ(*EL) |
1 | ||
| 82151-37090 |
LY101,111,151,161,YY101 ｱﾘ(*PW & *EL) |
1 | ||
| 82151-37080 |
LY101,111,151,161,YY101 ｱﾘ(*PW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37130 |
LY101,111,151,161,YY101 ｱﾘ(*PW) |
1 | ||
| 82152-25060 |
LY101,111,151,161,YY101 ｱﾘ(*EL) |
1 | ||
| 82152-37140 |
LY101,111,151,161,YY101 ｱﾘ(*PW & *EL) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37081 |
LY101,111,151,161,YY101..T1,T2,T3 |
1 | ||
| 82171-37061 |
LY101,111,151,161,YY101..T1,T2,T3 ｱﾘ(ｹｲｺｳﾄｳｼｷ ﾙ-ﾑﾗﾝﾌﾟ) |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-28640 |
LY101,111,151,161,YY101..T1,T2,T3 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-37020 |
LY101,111,151,161,YY101 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 82711-2B660 | ||||
| 82711-3H370 | ||||
| 82712-37010 | ||||
| 90480-30320 | ||||

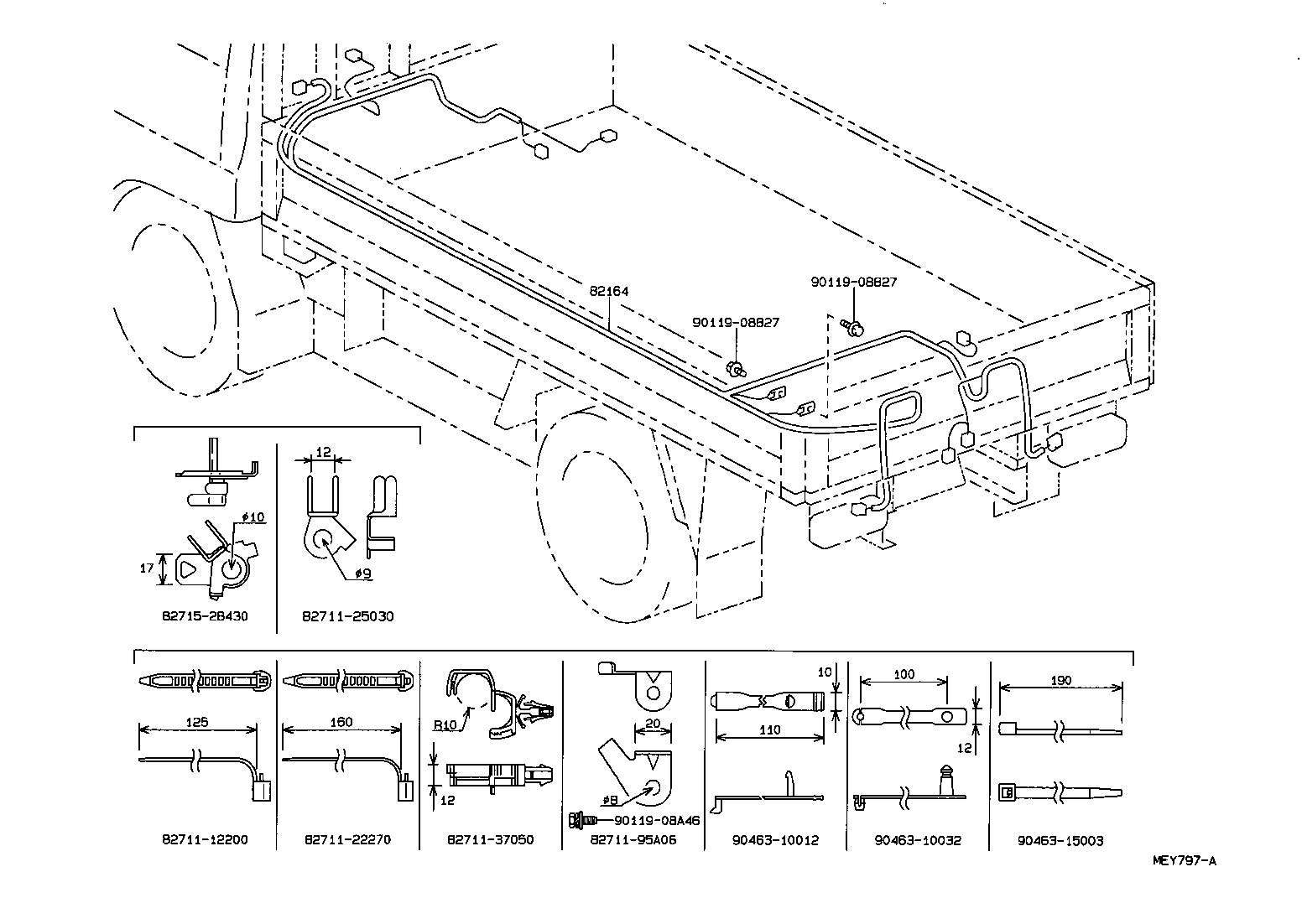

ILLUST NO. 4 OF 5(9505-9610)
BODY WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-26202 |
LY111..T3..MTM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 82711-25030 | ||||
| 82711-37050 | ||||
| 82711-95A06 | ||||
| 82715-28430 | ||||
| 90119-08827 | ||||
| 90119-08A46 | ||||
| 90463-10012 | ||||
| 90463-10032 | ||||
| 90463-15003 | ||||

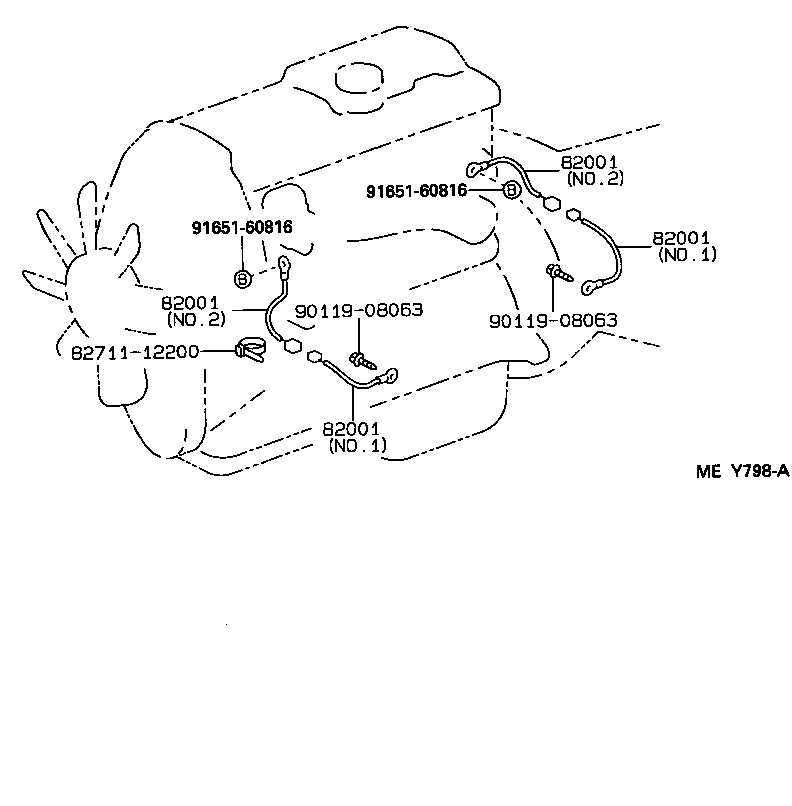

ILLUST NO. 5 OF 5(9505-9610)LY101,111,151,161
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08063 | ||||
| 91651-60816 | ||||
