LY111-PBMAS (1995)
Toyota Hiace Truck

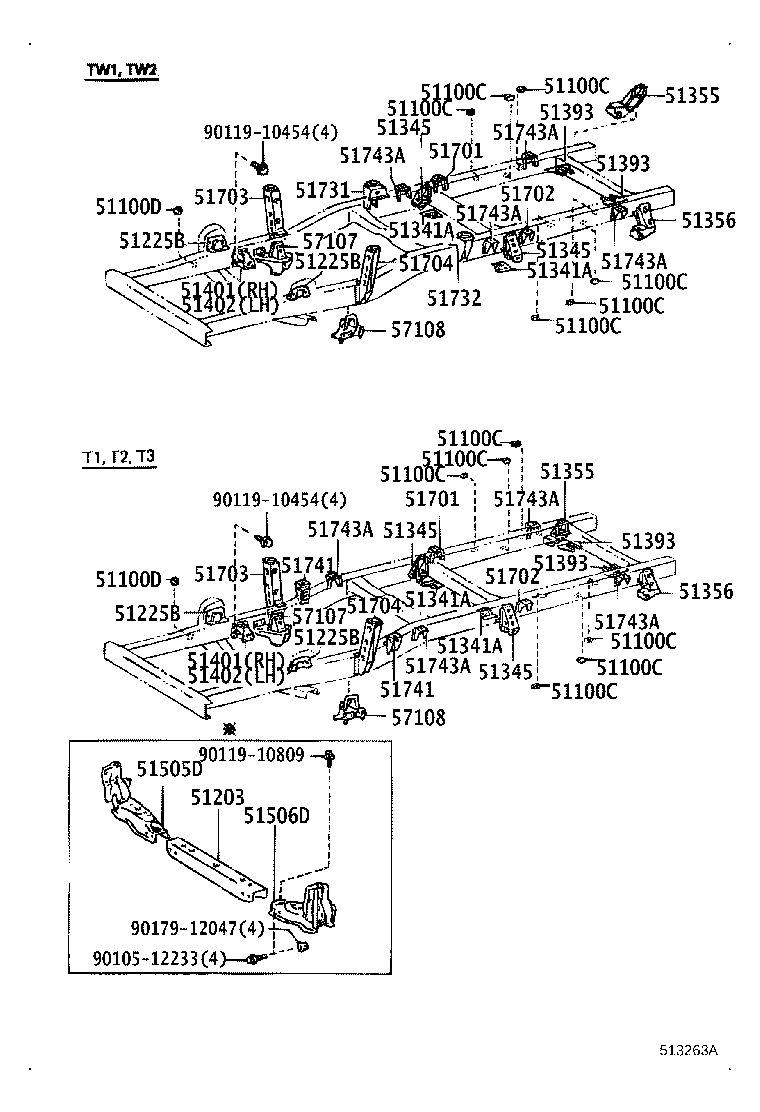

ILLUST NO. 2 OF 2(9505- )LY101,111,YY101..T1,T3,TW1,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY101,111,151,161,YY101 |
6 | ||
| 51100D - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01420 |
LY101,111,151,161,YY101 |
1 | ||
| 51100D - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01420 |
LY101,111,151,161,YY101 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51203-26112 |
LY101,111 |
1 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LY101,111,YY101 |
2 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LY101,111,YY101 |
2 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LY101,111,YY101 |
2 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LY101,111,YY101 |
2 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26012 |
LY101,111,151,161,YY101 |
2 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26012 |
LY101,111,151,161,YY101 |
2 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26012 |
LY101,111,151,161,YY101 |
2 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26012 |
LY101,111,151,161,YY101 |
2 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-26020 |
LY101,111,YY101..T1,T3,TW1,TW2 左側 |
1 | ||
| 51305-26020 |
LY101,111,YY101..T1,T3,TW1,TW2 右側 |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-26020 |
LY101,111,YY101..T1,T3,TW1,TW2 左側 |
1 | ||
| 51305-26020 |
LY101,111,YY101..T1,T3,TW1,TW2 右側 |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-26020 |
LY101,111,YY101..T1,T3,TW1,TW2 左側 |
1 | ||
| 51305-26020 |
LY101,111,YY101..T1,T3,TW1,TW2 右側 |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-26020 |
LY101,111,YY101..T1,T3,TW1,TW2 左側 |
1 | ||
| 51305-26020 |
LY101,111,YY101..T1,T3,TW1,TW2 右側 |
1 | ||
| 51355 - BRACKET, REAR SPRING, REAR RH | ||||
| 51301-25010 |
LY101,111,151,161,YY101 |
1 | ||
| 51355-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 51355 - BRACKET, REAR SPRING, REAR RH | ||||
| 51301-25010 |
LY101,111,151,161,YY101 |
1 | ||
| 51355-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 51356 - BRACKET, REAR SPRING, REAR LH | ||||
| 51356-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 51302-25010 |
LY101,111,151,161,YY101 |
1 | ||
| 51356 - BRACKET, REAR SPRING, REAR LH | ||||
| 51356-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 51302-25010 |
LY101,111,151,161,YY101 |
1 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LY101,111,151,161,YY101 |
2 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LY101,111,151,161,YY101 |
2 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LY101,111,151,161,YY101 |
2 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LY101,111,151,161,YY101 |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-26010 |
LY101,111,YY101 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-26010 |
LY101,111,YY101 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-26010 |
LY101,111,YY101 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-26010 |
LY101,111,YY101 |
1 | ||
| 51505D - SUPPORT ASSY, FRONT SUSPENSION RH | ||||
| 51505-26904 |
LY101,111,YY101 |
1 | ||
| 51506D - SUPPORT ASSY, FRONT SUSPENSION, LH | ||||
| 51506-26904 |
LY101,111,YY101 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51711-26080 |
LY101,111,151,161,YY101 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51711-26080 |
LY101,111,151,161,YY101 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51711-26080 |
LY101,111,151,161,YY101 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51711-26080 |
LY101,111,151,161,YY101 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-26012 |
LY101,111,151,161,YY101 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-26012 |
LY101,111,151,161,YY101 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51703-26012 |
LY101,111,151,161,YY101 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51703-26012 |
LY101,111,151,161,YY101 |
1 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51705-26043 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 51732 - BRACKET, CAB REAR MOUNTING, LH | ||||
| 51705-26043 |
LY101,111,151,161,YY101..TW1,TW2 |
1 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY101,111,151,161,YY101 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY101,111,151,161,YY101 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY101,111,151,161,YY101 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY101,111,151,161,YY101 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY101,111,151,161,YY101 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY101,111,151,161,YY101 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY101,111,151,161,YY101 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY101,111,151,161,YY101 |
4 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-26040 |
LY101,111,YY101 |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-26040 |
LY101,111,YY101 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-26040 |
LY101,111,YY101 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-26040 |
LY101,111,YY101 |
1 | ||
| Common parts | ||||
| 90105-12233 | ||||
| 90119-10454 | ||||
| 90119-10809 | ||||
| 90179-12047 | ||||

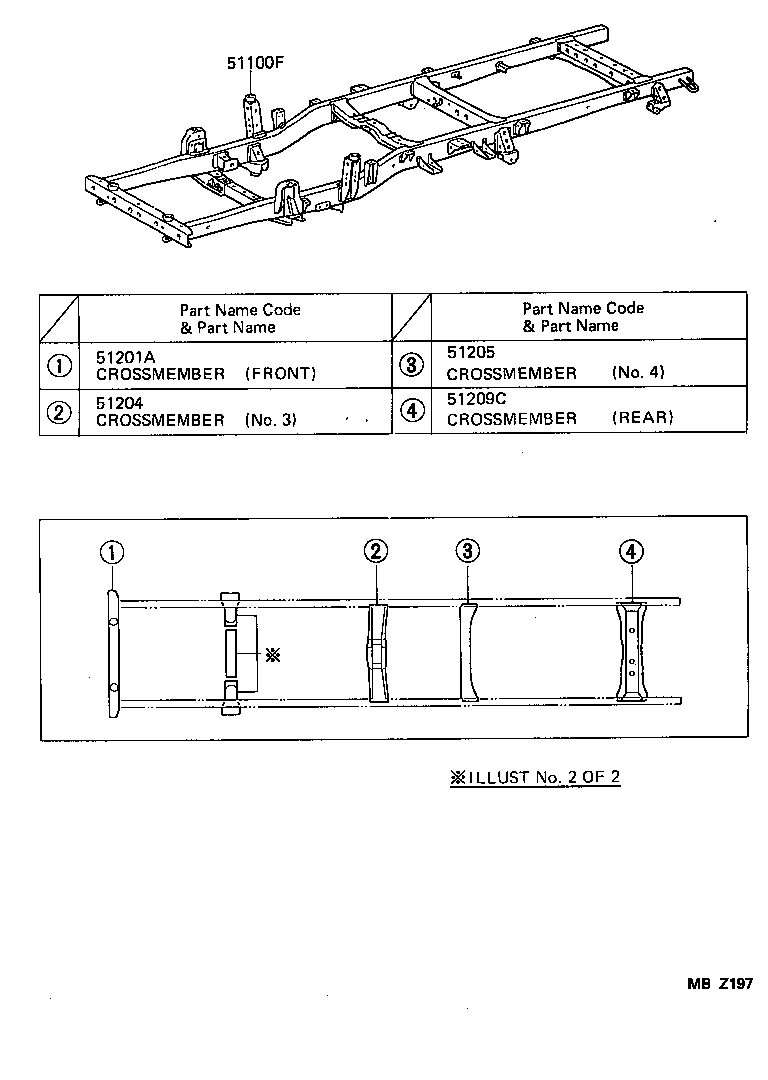

ILLUST NO. 1 OF 2(9505- )LY101,111,YY101..T1,T3,TW1,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-26561 |
LY111..TW1 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-25090 |
LY101,111,YY101 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-26120 |
LY101,111,YY101 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-26030 |
LY101,111,151,161,YY101 |
1 | ||
| 51204-26031 |
LY101,111,151,161,YY101 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-26030 |
LY101,111,151,161,YY101 |
1 | ||
