LY111-PBMAS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9610)

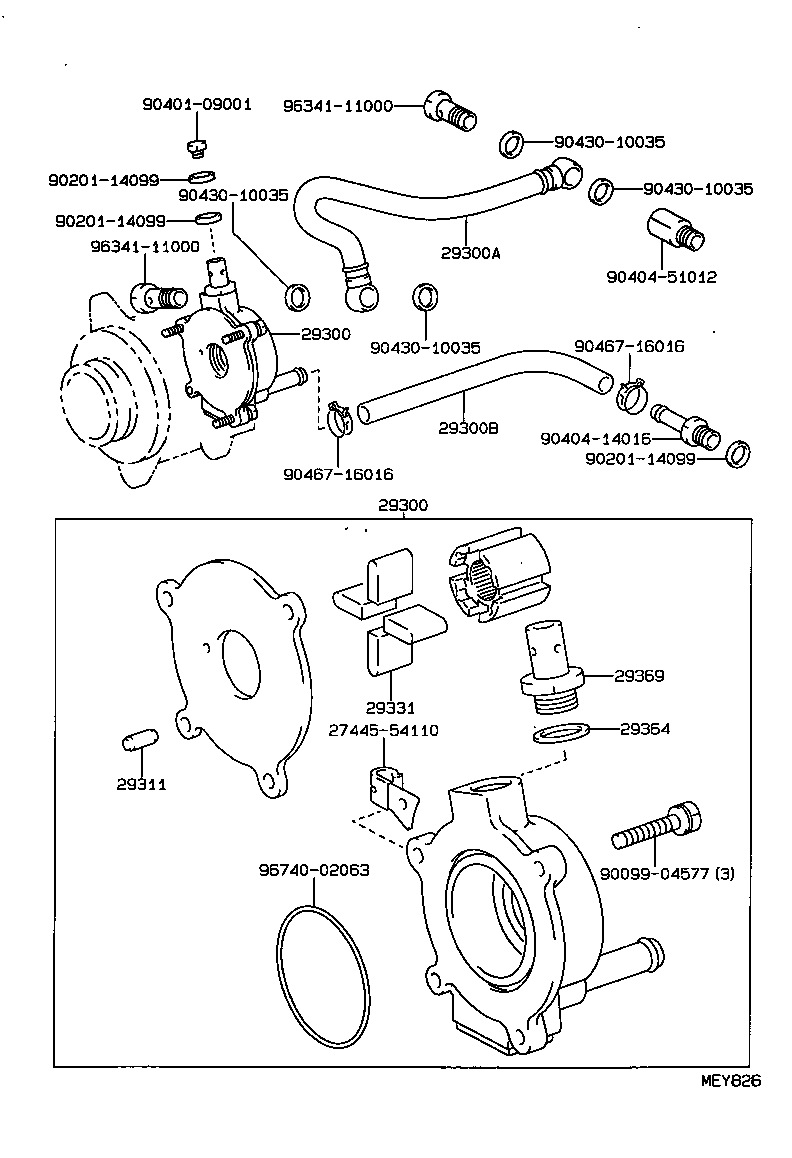

Click highlighted areas on diagram

diagram 2744554110 29300 29300 29300A 29300B 29311 29331 29364 29369 9009904577 9020114099 9020114099 9020114099 9040109001 9040414016 9040451012 9043010035 9043010035 9043010035 9043010035 9046715016 9046716016 9634111000 9634111000 9674002063
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54061

3L..LY101,111,151,161

 1
29300 - PUMP ASSY, VACUUM
29300-54061

3L..LY101,111,151,161

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02117

3L..LY101,111,151,161

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29611-54030

3L..LY101,111,151,161

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

3L..LY101,111,151,161

 1
29331 - BLADE, VACUUM PUMP, A
29331-78010

3L..LY101,111,151,161

 4
29364 - WASHER, VACUUM PUMP
29364-66010

3L..LY101,111,151,161

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

3L..LY101,111,151,161

 1
Common parts
27445-54110
90099-04577
90201-14099
90401-09001
90404-14016
90404-51012
90430-10035
90467-15016
90467-16016
96341-11000
96740-02063
