LY101-TGMBS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9610)YY101..T2..IV ; (9505-9610)LY101..T2..ATM..IV ; (9505- )T2..TB

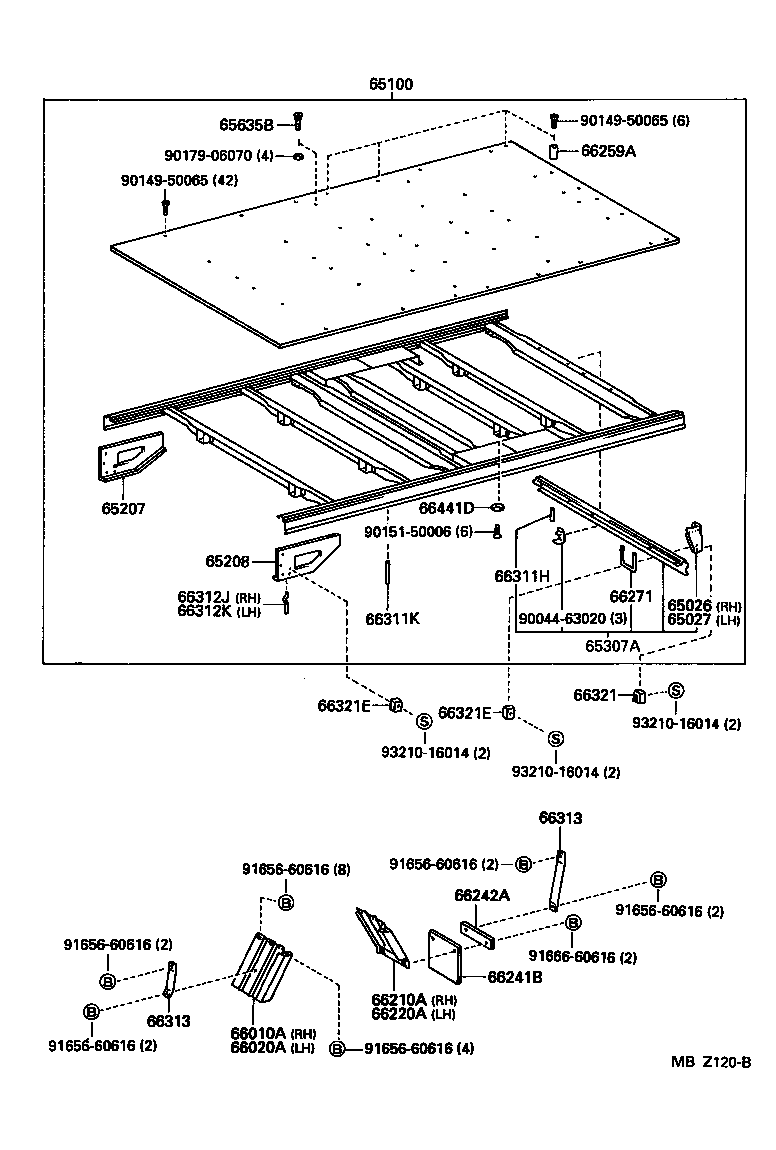

Click highlighted areas on diagram

diagram 65026 65027 65100 65207 65208 65307A 65635B 66010A 66020A 66210A 66220A 66241B 66242A 66259A 66271 66311H 66311K 66312J 66312K 66313 66313 66321 66321E 66321E 66441D 9004463020 9014950065 9014950065 9015150006 9017906070 9165660616 9165660616 9165660616 9165660616 9165660616 9165660616 9166660616 9321016014 9321016014 9321016014
Part # Description Qty Price
65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH
65026-37020

LY101,111,151..TB

 1
65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH
65027-37020

LY101,111,151..TB

 1
65100 - FLOOR ASSY, REAR BODY
65100-25340

LY101..T2..TB

 1
65100-25400

LY101..T2..TB

TECS=ﾊﾟﾜ- ｹﾞ-ﾄ

 1
65100-25410

LY101..T2..TB

TECS=ﾗﾂﾄ ｸﾘﾌ

 1
65207 - BRACKET SUB-ASSY, GUARD FRAME, RH
65413-37050

LY101,111,151..TB

 1
65208 - BRACKET SUB-ASSY, GUARD FRAME, LH
65415-37030

LY101,111,151..TB

 1
65307A - FRAME SUB-ASSY, FLOOR, REAR
65307-25030

LY101,111..TB

 1
65307-25080

LY101..T2..TB

TECS=ﾊﾟﾜ- ｹﾞｰﾄ

 1
65635B - BOLT, COUNTER SUNK HEAD SQUARE NECK
65635-92830

LY101,111,151..TB

 4
66010A - FENDER ASSY, REAR NO.2 RH
66010-25020

LY101,111,151..TB

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-25020

LY101,111,151..TB

 1
66210A - FENDER ASSY, REAR NO.1 RH
66210-25020

LY101,111,151..TB

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-25020

LY101,111,151..TB

 1
66241B - BAFFLE, RUBBER
66241-25040

LY101,111,151..T2..TB

 2
66241-25040

LY101,111,151..TB

 2
66242A - PLATE, BAFFLE RUBBER
66242-37070

LY101,111,151..TB

 2
66259A - COVER, REAR BODY FLOOR, REAR
66259-37010

LY101,111,151..TB

 6
66259-37010

LY101,111..T2..TB

TECS=ﾗﾂﾄ ｸﾘﾌ OR ﾊﾟﾜ-ｹﾞ-ﾄ

 4
66271 - STEP, REAR BODY
66271-25010

LY101,111,151..TB

 1
66311H - HOOK, ROPE
66311-37020

LY101,111,151..TB

 2
66311K - HOOK, ROPE
66311-37020

LY101,151..TB

 12
66311-37020

LY101..T2..TB

TECS=ﾗﾂﾄ ｸﾘﾌ

 10
66312J - HOOK, ROPE, NO.2
66312-37020

LY101,111,151..TB

 1
66312K - HOOK, ROPE, NO.2
66312-37020

LY101,111,151..TB

 1
66313 - SUPPORT, REAR FENDER
66235-25010

LY101,111,151..TB

ﾘﾔ

 2
66236-25020

LY101,111,151..TB

ﾌﾛﾝﾄ

 2
66313 - SUPPORT, REAR FENDER
66235-25010

LY101,111,151..TB

ﾘﾔ

 2
66236-25020

LY101,111,151..TB

ﾌﾛﾝﾄ

 2
66321 - BUMPER, GATE RUBBER
66321-92803

LY101,111,151..TB

 2
66321E - BUMPER, GATE RUBBER
66321-92805

LY101,111..T2..TB

TECS=ﾗﾂﾄ ｸﾘﾌ

 2
66321-92805

LY101,111,151..TB

 4
66321E - BUMPER, GATE RUBBER
66321-92805

LY101,111..T2..TB

TECS=ﾗﾂﾄ ｸﾘﾌ

 2
66321-92805

LY101,111,151..TB

 4
66441D - SHIM, MOUNTING, NO.1
66441-37010

LY101,151..T2..TB

 6
Common parts
90044-63020
90149-50065
90151-50006
90179-06070
91656-60616
91666-60616
93210-16014
