LY101-TBPBS3 (1995)
Toyota Hiace Truck

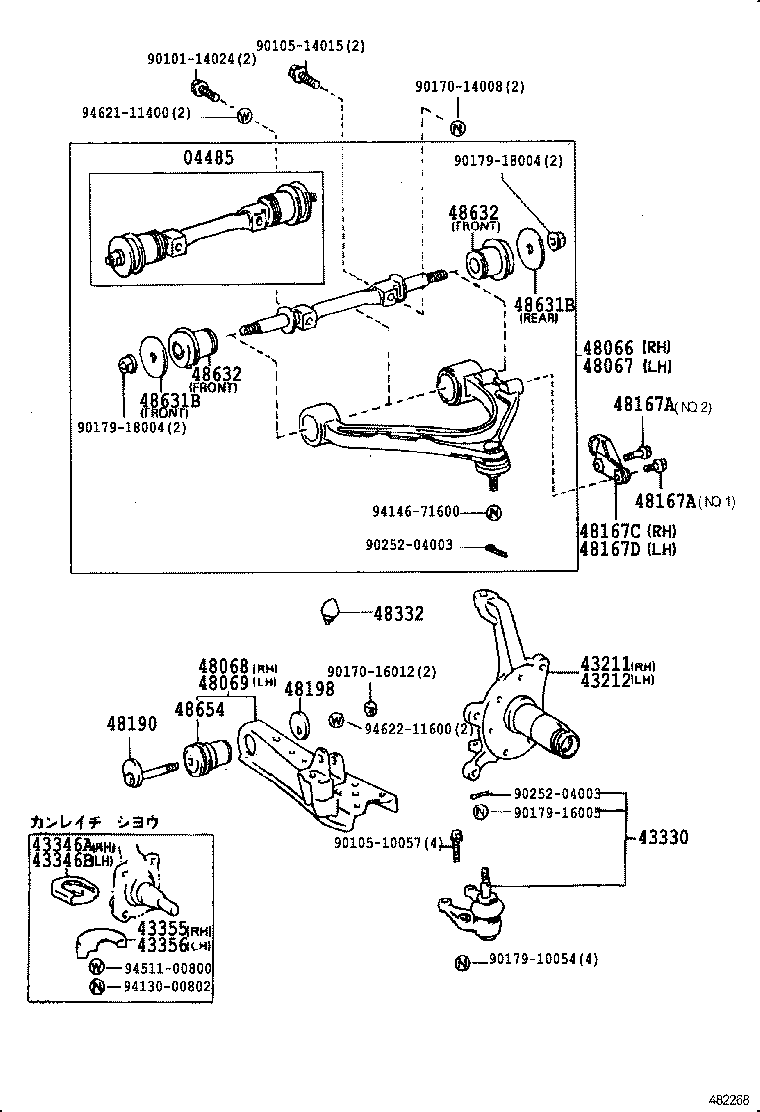

(9508- )LY101,111,YY101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-26050 |
LY101,111,YY101 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
LY101,111,YY101 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-26021 |
LY101,111,YY101 |
1 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29295 |
LY101,111,YY101 |
2 | ||
| 43346A - PROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH | ||||
| 43346-26010 |
LY101,111,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43346B - PROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH | ||||
| 43346-26010 |
LY101,111,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-26010 |
LY101,111,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43355-26010 |
LY101,111,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-29075 |
LY101,111,YY101 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-29075 |
LY101,111,YY101 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-26022 |
LY101,111,YY101 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-26022 |
LY101,111,YY101 |
1 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-12284 |
LY101,111,YY101 NO.1,*12−1.25PX33−23 |
2 | ||
| 90105-12285 |
LY101,111,YY101 NO.2,*12−1.25PX44−32 |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-12284 |
LY101,111,YY101 NO.1,*12−1.25PX33−23 |
2 | ||
| 90105-12285 |
LY101,111,YY101 NO.2,*12−1.25PX44−32 |
2 | ||
| 48167C - ARM, FRONT SUSPENSION TORQUE, RH | ||||
| 48106-26050 |
LY101,111,YY101 |
1 | ||
| 48167D - ARM, FRONT SUSPENSION TORQUE, LH | ||||
| 48106-26050 |
LY101,111,YY101 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
LY101,111,YY101 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
LY101,111,YY101 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
LY101,111,YY101 |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02142 |
LY101,111,YY101 REAR |
2 | ||
| 90948-02143 |
LY101,111,YY101 FRONT |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02142 |
LY101,111,YY101 REAR |
2 | ||
| 90948-02143 |
LY101,111,YY101 FRONT |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-26010 |
LY101,111,YY101 REAR |
2 | ||
| 48632-26010 |
LY101,111,YY101 FRONT |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-26010 |
LY101,111,YY101 REAR |
2 | ||
| 48632-26010 |
LY101,111,YY101 FRONT |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26010 |
LY101,111,YY101 |
2 | ||
| Common parts | ||||
| 90101-14024 | ||||
| 90105-10057 | ||||
| 90105-14015 | ||||
| 90170-14008 | ||||
| 90170-16012 | ||||
| 90179-10054 | ||||
| 90179-16005 | ||||
| 90179-18004 | ||||
| 90252-04003 | ||||
| 94130-00802 | ||||
| 94146-71600 | ||||
| 94511-00800 | ||||
| 94621-11400 | ||||
| 94622-11600 | ||||

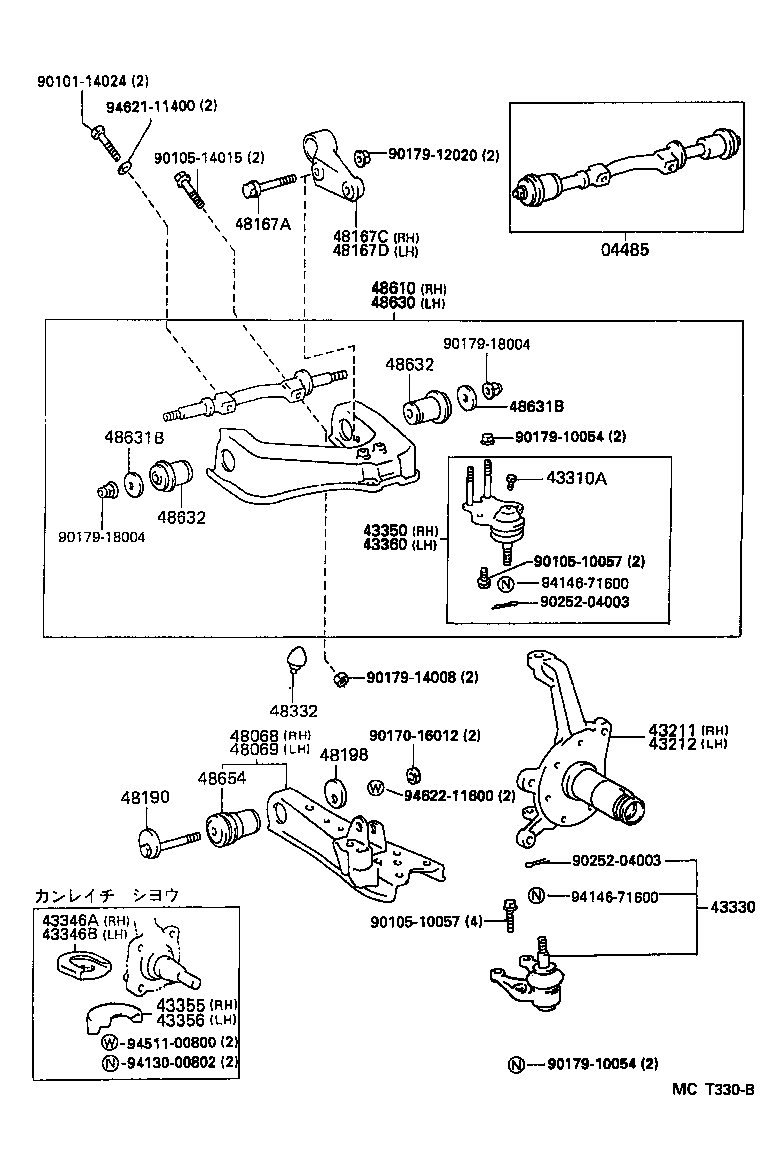

(9505-9508)LY101,111,YY101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-26050 |
LY101,111,YY101 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
LY101,111,YY101 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-26021 |
LY101,111,YY101 |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LY101,111,151,161,YY101 |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29295 |
LY101,111,YY101 |
2 | ||
| 43346A - PROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH | ||||
| 43346-26010 |
LY101,111,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43346B - PROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH | ||||
| 43346-26010 |
LY101,111,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43350-29105 |
LY101,111,YY101 |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-26010 |
LY101,111,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43355-26010 |
LY101,111,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43350-29105 |
LY101,111,YY101 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-26022 |
LY101,111,YY101 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-26022 |
LY101,111,YY101 |
1 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-12284 |
LY101,111,YY101 NO.1,*12−1.25PX33−23 |
2 | ||
| 90105-12285 |
LY101,111,YY101 NO.2,*12−1.25PX44−32 |
2 | ||
| 48167C - ARM, FRONT SUSPENSION TORQUE, RH | ||||
| 48106-26050 |
LY101,111,YY101 |
1 | ||
| 48167D - ARM, FRONT SUSPENSION TORQUE, LH | ||||
| 48106-26050 |
LY101,111,YY101 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
LY101,111,YY101 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
LY101,111,YY101 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
LY101,111,YY101 |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-29105 |
LY101,111,YY101 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-29095 |
LY101,111,YY101 |
1 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02142 |
LY101,111,YY101 REAR |
2 | ||
| 90948-02143 |
LY101,111,YY101 FRONT |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02142 |
LY101,111,YY101 REAR |
2 | ||
| 90948-02143 |
LY101,111,YY101 FRONT |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-26010 |
LY101,111,YY101 REAR |
2 | ||
| 48632-26010 |
LY101,111,YY101 FRONT |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-26010 |
LY101,111,YY101 REAR |
2 | ||
| 48632-26010 |
LY101,111,YY101 FRONT |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26010 |
LY101,111,YY101 |
2 | ||
| Common parts | ||||
| 90101-14024 | ||||
| 90105-10057 | ||||
| 90105-14015 | ||||
| 90170-16012 | ||||
| 90179-10054 | ||||
| 90179-12020 | ||||
| 90179-14008 | ||||
| 90179-18004 | ||||
| 90252-04003 | ||||
| 94130-00802 | ||||
| 94146-71600 | ||||
| 94511-00800 | ||||
| 94621-11400 | ||||
| 94622-11600 | ||||
