LH90-MDL (1991)
Toyota Hiace Truck

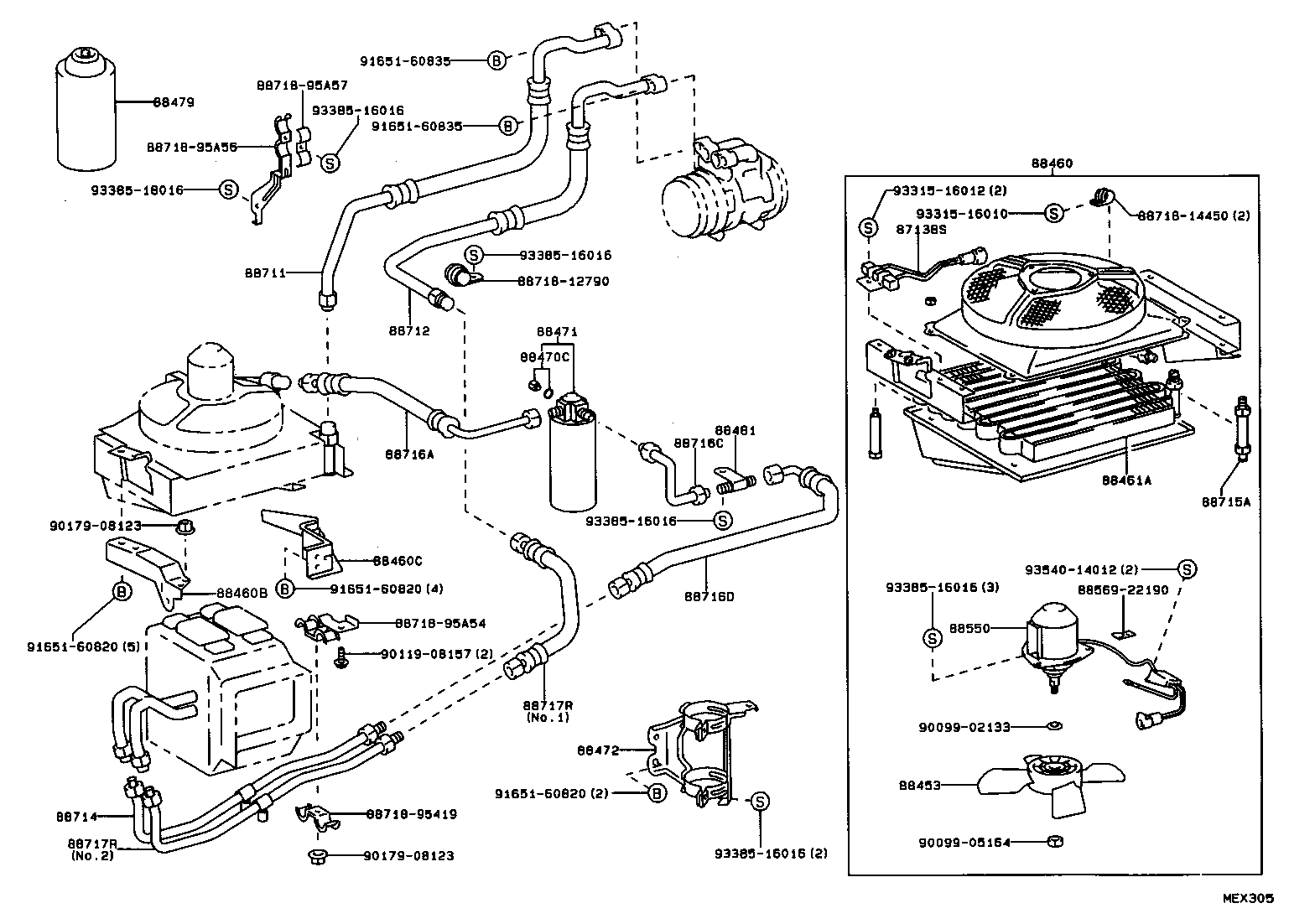

ILLUST NO. 1 OF 2(8708-9309)LH8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95410 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 87138-95410 |
LH8#,9#,YH81 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88453-95A01 |
LH8#,9#,YH81 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A15 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88460-26170 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95A60 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95A57 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95A04 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88461-26030 |
LH8#,9#,YH81 |
1 | ||
| 88461-95A04 |
LH8#,9#,YH81 |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16010 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88471-20050 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26070 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88472-95A10 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
LH80..CBU;LH85,9#,YH81 200G |
2 | ||
| 90986-02007 |
LH80..CBU;LH85,9#,YH81 250G |
1 | ||
| 90986-02004 |
LH80..CBU;LH85,9#,YH81 250G |
2 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95406 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 87104-95406 |
LH8#,9#,YH81 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26390 |
LH90;LH80..CBU |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-26340 |
LH90;LH80..CBU |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88716-26410 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88716-95A80 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95A03 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88715-26190 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88721-95A05 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88721-26120 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-26390 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88716-95A82 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88721-95A06 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88721-26140 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88717R - PIPE, COOLER REFRIGERANT SUCTION, R | ||||
| 88712-95A27 |
LH8#,9#,YH81 NO.1 |
1 | ||
| 88712-95A27 |
LH80..CBU;LH85,9#,YH81 NO.1 |
1 | ||
| 88717-95A40 |
LH80..CBU;LH85,9#,YH81 NO.2 |
1 | ||
| 88712-26320 |
LH8#,9#,YH81 NO.1 |
1 | ||
| 88717-95A40 |
LH8#,9#,YH81 NO.2 |
1 | ||
| 88717-26350 |
LH8#,9#,YH81 NO.2 |
1 | ||
| 88717R - PIPE, COOLER REFRIGERANT SUCTION, R | ||||
| 88712-95A27 |
LH8#,9#,YH81 NO.1 |
1 | ||
| 88712-95A27 |
LH80..CBU;LH85,9#,YH81 NO.1 |
1 | ||
| 88717-95A40 |
LH80..CBU;LH85,9#,YH81 NO.2 |
1 | ||
| 88712-26320 |
LH8#,9#,YH81 NO.1 |
1 | ||
| 88717-95A40 |
LH8#,9#,YH81 NO.2 |
1 | ||
| 88717-26350 |
LH8#,9#,YH81 NO.2 |
1 | ||
| Common parts | ||||
| 88569-22190 | ||||
| 88718-12790 | ||||
| 88718-14450 | ||||
| 88718-95419 | ||||
| 88718-95A54 | ||||
| 88718-95A56 | ||||
| 88718-95A57 | ||||
| 90099-02133 | ||||
| 90099-05164 | ||||
| 90119-08157 | ||||
| 90179-08123 | ||||
| 91651-60820 | ||||
| 91651-60835 | ||||
| 93315-16010 | ||||
| 93315-16012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93540-14012 | ||||

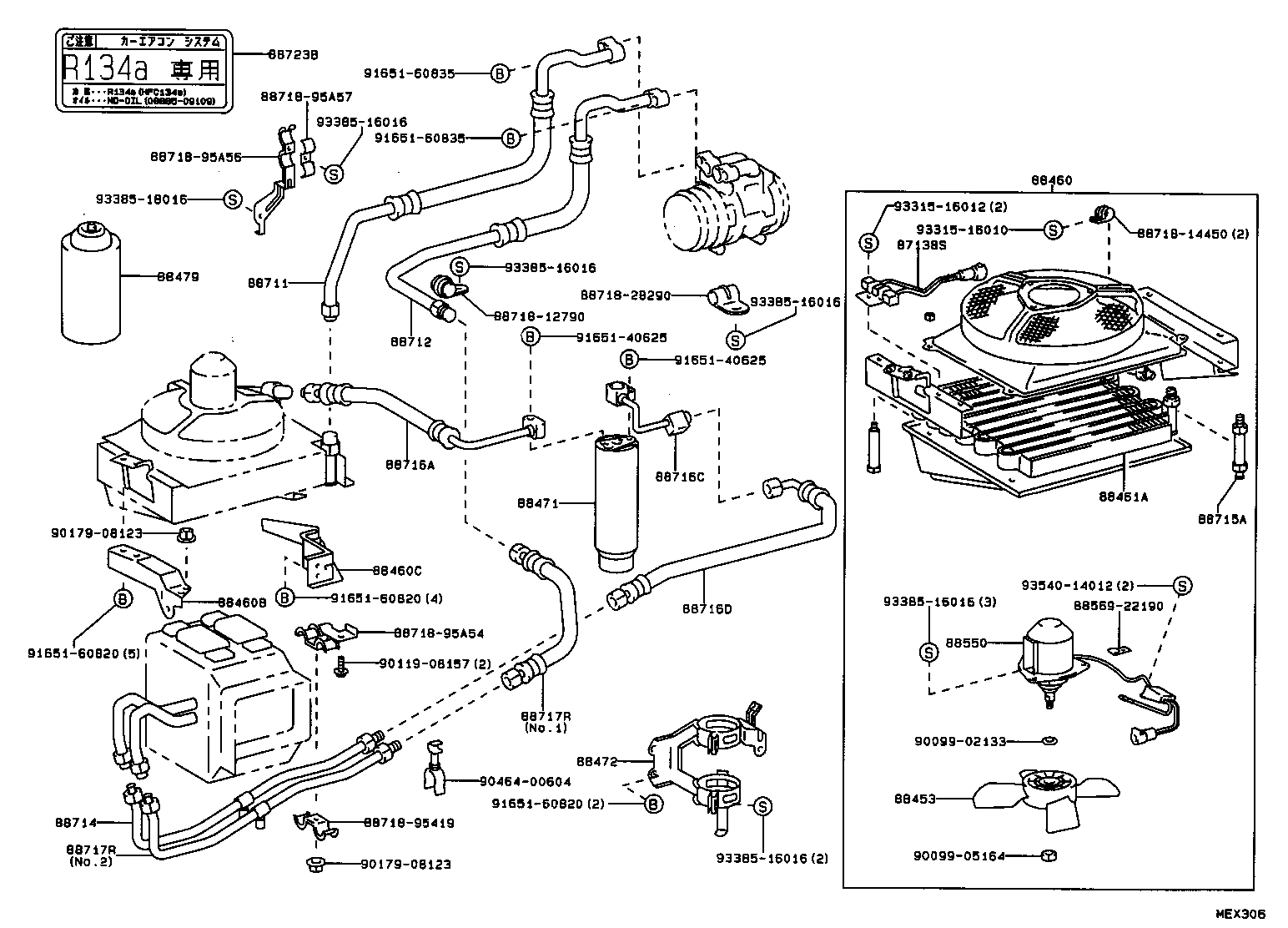

ILLUST NO. 1 OF 2(9309- )LH8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95410 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 87138-95410 |
LH8#,9#,YH81 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88453-95A01 |
LH8#,9#,YH81 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A15 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88460-26170 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95A60 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95A57 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95A04 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88461-26030 |
LH8#,9#,YH81 |
1 | ||
| 88461-95A04 |
LH8#,9#,YH81 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16010 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88471-20050 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26070 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88472-95A10 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
LH80..CBU;LH85,9#,YH81 200G |
2 | ||
| 90986-02007 |
LH80..CBU;LH85,9#,YH81 250G |
1 | ||
| 90986-02004 |
LH80..CBU;LH85,9#,YH81 250G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95406 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 87104-95406 |
LH8#,9#,YH81 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26390 |
LH90;LH80..CBU |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-26340 |
LH90;LH80..CBU |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88716-26410 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88716-95A80 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95A03 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88715-26190 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88721-95A05 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88721-26120 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-26390 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88716-95A82 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88721-95A06 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88721-26140 |
LH80..CBU;LH90,YH81 |
1 | ||
| 88717R - PIPE, COOLER REFRIGERANT SUCTION, R | ||||
| 88712-95A27 |
LH8#,9#,YH81 NO.1 |
1 | ||
| 88712-95A27 |
LH80..CBU;LH85,9#,YH81 NO.1 |
1 | ||
| 88717-95A40 |
LH80..CBU;LH85,9#,YH81 NO.2 |
1 | ||
| 88712-26320 |
LH8#,9#,YH81 NO.1 |
1 | ||
| 88717-95A40 |
LH8#,9#,YH81 NO.2 |
1 | ||
| 88717-26350 |
LH8#,9#,YH81 NO.2 |
1 | ||
| 88717R - PIPE, COOLER REFRIGERANT SUCTION, R | ||||
| 88712-95A27 |
LH8#,9#,YH81 NO.1 |
1 | ||
| 88712-95A27 |
LH80..CBU;LH85,9#,YH81 NO.1 |
1 | ||
| 88717-95A40 |
LH80..CBU;LH85,9#,YH81 NO.2 |
1 | ||
| 88712-26320 |
LH8#,9#,YH81 NO.1 |
1 | ||
| 88717-95A40 |
LH8#,9#,YH81 NO.2 |
1 | ||
| 88717-26350 |
LH8#,9#,YH81 NO.2 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
LH80..CBU;LH85,9#,YH81 |
1 | ||
| Common parts | ||||
| 88569-22190 | ||||
| 88718-12790 | ||||
| 88718-14450 | ||||
| 88718-2B290 | ||||
| 88718-95419 | ||||
| 88718-95A54 | ||||
| 88718-95A56 | ||||
| 88718-95A57 | ||||
| 90099-02133 | ||||
| 90099-05164 | ||||
| 90119-08157 | ||||
| 90179-08123 | ||||
| 90464-00604 | ||||
| 91651-40625 | ||||
| 91651-60820 | ||||
| 91651-60835 | ||||
| 93315-16010 | ||||
| 93315-16012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93540-14012 | ||||
