LH85-MDL (1987)
Toyota Hiace Truck

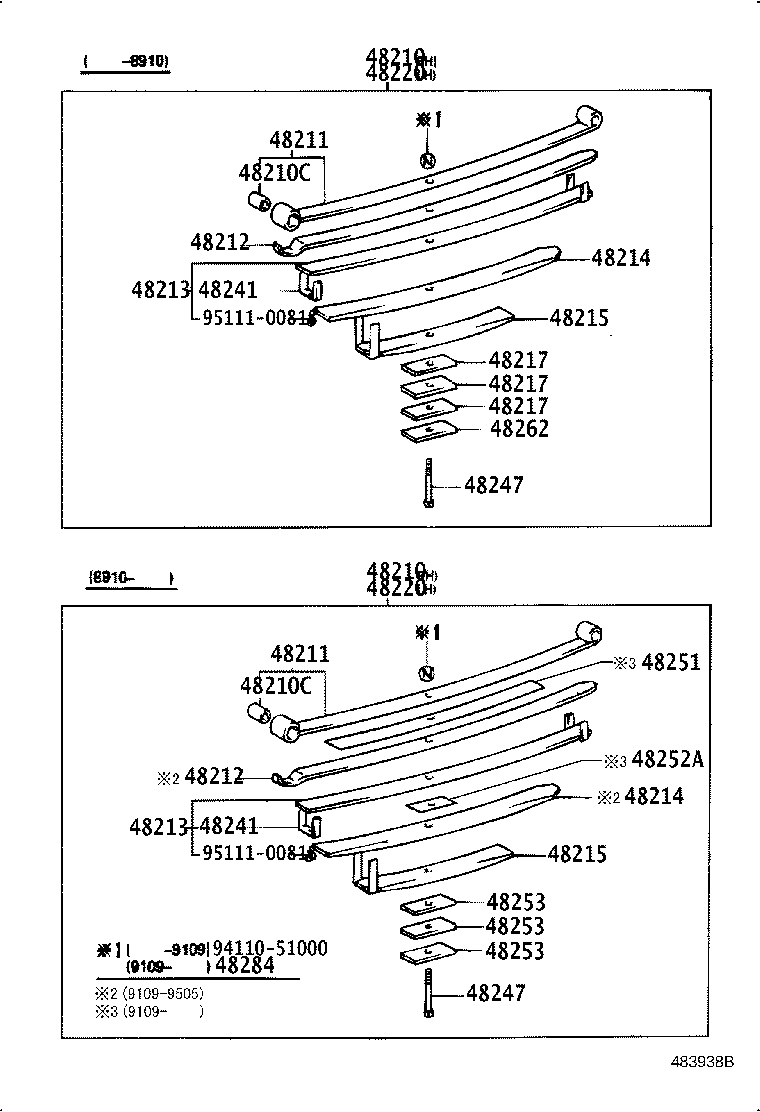

ILLUST NO. 2 OF 2(8710-9109)LH85..T2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26850 |
LH85,95..T2 # |
1 | ||
| 48210-26551 |
LH85..T2 # |
1 | ||
| 48210-26550 |
LH85..T2 # |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26850 |
LH85,95..T2 # |
1 | ||
| 48210-26551 |
LH85..T2 # |
1 | ||
| 48210-26550 |
LH85..T2 # |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LH8#,9#,YH81 |
2 | ||
| 48299-26540 |
LH85;LH80,YH81..WT;LH80,YH81..T1,T3,TW |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LH8#,9#,YH81 |
2 | ||
| 48299-26540 |
LH85;LH80,YH81..WT;LH80,YH81..T1,T3,TW |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26850 |
LH85,95..T2 |
2 | ||
| 48201-26551 |
LH85..T2 |
2 | ||
| 48201-26550 |
LH85..T2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26850 |
LH85,95..T2 |
2 | ||
| 48201-26551 |
LH85..T2 |
2 | ||
| 48201-26550 |
LH85..T2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26550 |
LH85..T2 |
2 | ||
| 48202-26850 |
LH85,95..T2 |
2 | ||
| 48212-26551 |
LH85..T2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26550 |
LH85..T2 |
2 | ||
| 48202-26850 |
LH85,95..T2 |
2 | ||
| 48212-26551 |
LH85..T2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26551 |
LH85..T2 |
2 | ||
| 48202-26550 |
LH85..T2 |
2 | ||
| 48203-26850 |
LH85,95..T2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26551 |
LH85..T2 |
2 | ||
| 48202-26550 |
LH85..T2 |
2 | ||
| 48203-26850 |
LH85,95..T2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-26550 |
LH85..T2 |
2 | ||
| 48214-26551 |
LH85..T2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-26550 |
LH85..T2 |
2 | ||
| 48214-26551 |
LH85..T2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-26551 |
LH85..T2 |
2 | ||
| 48203-26550 |
LH85..T2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-26551 |
LH85..T2 |
2 | ||
| 48203-26550 |
LH85..T2 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-26540 |
LH85..T2 |
6 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-26540 |
LH85..T2 |
6 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-26540 |
LH85..T2 |
6 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26551 |
LH85..T2 # |
1 | ||
| 48210-26550 |
LH85..T2 # |
1 | ||
| 48210-26850 |
LH85,95..T2 # |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26551 |
LH85..T2 # |
1 | ||
| 48210-26550 |
LH85..T2 # |
1 | ||
| 48210-26850 |
LH85,95..T2 # |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-26240 |
LH85..T2 |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-26240 |
LH85..T2 |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36720 |
LH85,95..T2 |
2 | ||
| 48247-36280 |
LH85..T2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36720 |
LH85,95..T2 |
2 | ||
| 48247-36280 |
LH85..T2 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26541 |
LH85..T2 |
6 | ||
| 48253-26561 |
LH85,95..T2 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26541 |
LH85..T2 |
6 | ||
| 48253-26561 |
LH85,95..T2 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26541 |
LH85..T2 |
6 | ||
| 48253-26561 |
LH85,95..T2 |
8 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-26550 |
LH85..T2 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
LH85,95 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
| 95111-00818 | ||||
ILLUST NO. 1 OF 2(8710- )LH85,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26010 |
LH8#,9#,YH81..ST |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
LH8#,9#,YH81..ST |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-26080 |
LH8#,9#,YH81..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14034 |
LH85..T2 長さ=206 |
4 | ||
| 90117-14049 |
LH85,95..T2 長さ=200 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-26080 |
LH8#,9#,YH81..ST |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LH8#,9#,YH81..ST |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LH8#,9#,YH81 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LH8#,9#,YH81 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LH8#,9#,YH81 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26200 |
LH85,95..T2 |
2 | ||
| 48341-26100 |
LH85..T2 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-26010 |
LH8#,9#,YH81 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-26010 |
LH8#,9#,YH81 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80126 |
LH85..T2 |
1 | ||
| 48531-80125 |
LH85..T2 |
1 | ||
| 48531-80107 |
LH85,95..T2 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LH8#,9#,YH81..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LH8#,9#,YH81..ST |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80107 |
LH85,95..T2 |
1 | ||
| 48531-80125 |
LH85..T2 |
1 | ||
| 48531-80126 |
LH85..T2 |
1 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 91611-60816 | ||||
| 91616-40820 | ||||
| 91616-60820 | ||||
| 94115-71200 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

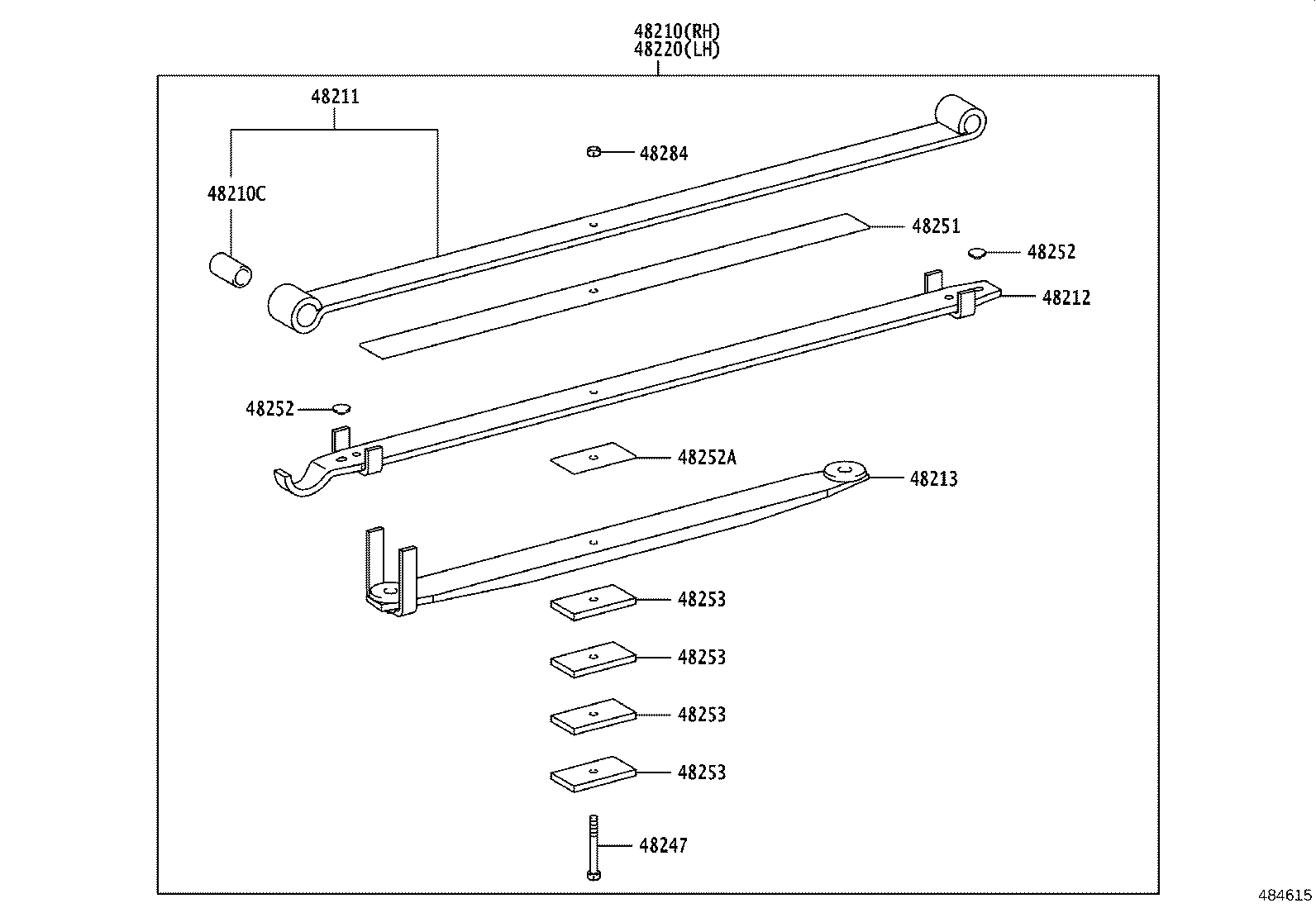

ILLUST NO. 2 OF 2(9109- )LH85,95..T2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26850 |
LH85,95..T2 # |
1 | ||
| 48210-26551 |
LH85..T2 # |
1 | ||
| 48210-26550 |
LH85..T2 # |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LH8#,9#,YH81 |
2 | ||
| 48299-26540 |
LH85;LH80,YH81..WT;LH80,YH81..T1,T3,TW |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26850 |
LH85,95..T2 |
2 | ||
| 48201-26551 |
LH85..T2 |
2 | ||
| 48201-26550 |
LH85..T2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26550 |
LH85..T2 |
2 | ||
| 48202-26850 |
LH85,95..T2 |
2 | ||
| 48212-26551 |
LH85..T2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26551 |
LH85..T2 |
2 | ||
| 48202-26550 |
LH85..T2 |
2 | ||
| 48203-26850 |
LH85,95..T2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26551 |
LH85..T2 # |
1 | ||
| 48210-26550 |
LH85..T2 # |
1 | ||
| 48210-26850 |
LH85,95..T2 # |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36720 |
LH85,95..T2 |
2 | ||
| 48247-36280 |
LH85..T2 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26541 |
LH85..T2 |
6 | ||
| 48253-26561 |
LH85,95..T2 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26541 |
LH85..T2 |
6 | ||
| 48253-26561 |
LH85,95..T2 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26541 |
LH85..T2 |
6 | ||
| 48253-26561 |
LH85,95..T2 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26541 |
LH85..T2 |
6 | ||
| 48253-26561 |
LH85,95..T2 |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
LH85,95 |
2 | ||
