LH85-MDL (1987)
Toyota Hiace Truck
(8708-8808)2L ; (8808-8910)2L..LH85
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-54010 |
2L..LH85 STD |
1 | ||
| 11802-54010 |
2L..LH8# STD |
1 | ||
| 11803-54010 |
2L..LH8# U/S 0.125 |
1 | ||
| 11804-54010 |
2L..LH8# U/S 0.25 |
1 | ||
| 11803-54010 |
2L..LH85 U/S 0.125 |
1 | ||
| 11804-54010 |
2L..LH85 U/S 0.25 |
1 | ||
| 11803-54020 |
2L..LH8#,9# U/S 0.125 |
1 | ||
| 11802-54020 |
2L..LH8#,9# STD |
1 | ||
| 11804-54020 |
2L..LH8#,9# U/S 0.25 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-54020 |
2L..LH8# |
1 | ||
| 13503-54020 |
2L..LH85 ﾅｼ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 13503-54030 |
2L..LH8#,9# ｱﾘ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-54010 |
2L..LH85 ﾅｼ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 13505-54021 |
2L..LH8#,9# |
1 | ||
| 13505-54010 |
2L..LH8# |
1 | ||
| 13505-54020 |
2L..LH8#,9# ｱﾘ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-14038 |
2L..LH85 |
1 | ||
| 90506-14038 |
2L..LH8# |
1 | ||
| 90506-18060 |
2L..LH8#,9# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-54020 |
2L..LH8# |
1 | ||
| 13501-54020 |
2L..LH85 |
1 | ||
| 13501-54050 |
2L..LH8#,9# |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
2L..LH8# 長さ=15,外径=5 |
1 | ||
| 90250-05121 |
2L..LH85 長さ=15,外径=5 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-54040 |
2L..LH8#,9# |
1 | ||
| 13523-54020 |
2L..LH8# |
1 | ||
| 13523-54020 |
2L..LH85 |
1 | ||
| 13558 - BRACKET, SPRING(FOR IDLER) | ||||
| 13558-54010 |
2L..LH85 |
1 | ||
| 13558-54020 |
2L..LH8#,9# |
1 | ||
| 13558-54010 |
2L..LH8# |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-59025 |
2L..LH8# 歯数=130 |
1 | ||
| 13568-59025 |
2L..LH85 歯数=130 |
1 | ||
| 13568-59065 |
2L..LH8#,9# |
1 | ||
| 13568-54070 |
2L..LH8#,9# 歯数=129 |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13603-54020 |
2L..LH8# |
1 | ||
| 13603-54020 |
2L..LH85 |
1 | ||
| 13603-54030 |
2L..LH8#,9# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-54020 |
2L..LH8#,9# |
4 | ||
| 13711-54010 |
2L..LH85 |
4 | ||
| 13711-54010 |
2L..LH8# |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02060 |
2L..LH8# |
8 | ||
| 90913-02053 |
2L..LH8#,9# |
8 | ||
| 90913-02060 |
2L..LH85 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02060 |
2L..LH8# |
8 | ||
| 90913-02053 |
2L..LH8#,9# |
8 | ||
| 90913-02060 |
2L..LH85 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-49001 |
2L..LH8#,9# |
8 | ||
| 90501-44002 |
2L..LH85 |
8 | ||
| 90501-44002 |
2L..LH8# |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-49001 |
2L..LH8#,9# |
8 | ||
| 90501-44002 |
2L..LH85 |
8 | ||
| 90501-44002 |
2L..LH8# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-20579 |
2L..LH8# |
8 | ||
| 90201-20579 |
2L..LH85 |
8 | ||
| 90201-23003 |
2L..LH8#,9# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-20579 |
2L..LH8# |
8 | ||
| 90201-20579 |
2L..LH85 |
8 | ||
| 90201-23003 |
2L..LH8#,9# |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-54010 |
2L..LH8# |
4 | ||
| 13715-54010 |
2L..LH85 |
4 | ||
| 13715-54040 |
2L..LH8# |
4 | ||
| 13715-17010 |
2L..LH8#,9# |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
2L..LH8#,9# |
8 | ||
| 13741-54010 |
2L..LH8# |
8 | ||
| 13741-54010 |
2L..LH85 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
2L..LH8#,9# |
8 | ||
| 13741-54010 |
2L..LH8# |
8 | ||
| 13741-54010 |
2L..LH85 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
2L..LH8#,9# |
16 | ||
| 90913-03016 |
2L..LH8# |
16 | ||
| 90913-03016 |
2L..LH85 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
2L..LH8#,9# |
16 | ||
| 90913-03016 |
2L..LH8# |
16 | ||
| 90913-03016 |
2L..LH85 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-54021 |
2L..LH8# |
4 | ||
| 13801-54021 |
2L..LH85 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08005 |
2L..LH8# |
8 | ||
| 90170-08005 |
2L..LH85 |
8 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08005 |
2L..LH8# |
8 | ||
| 90170-08005 |
2L..LH85 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
2L..LH85 |
8 | ||
| 90913-05019 |
2L..LH8# |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
2L..LH85 |
8 | ||
| 90913-05019 |
2L..LH8# |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2L..LH85 |
4 | ||
| 90501-16163 |
2L..LH8# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-54021 |
2L..LH85 |
4 | ||
| 13802-54021 |
2L..LH8# |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-54010 |
2L..LH85 |
1 | ||
| 13901-54010 |
2L..LH8# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-54020 |
2L..LH8# |
2 | ||
| 13951-54020 |
2L..LH85 |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-54020 |
2L..LH8# |
2 | ||
| 13951-54020 |
2L..LH85 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90119-08191 |
2L..LH8# |
4 | ||
| 90119-08191 |
2L..LH85 |
4 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 91611-60620 |
2L..LH8# |
2 | ||
| 91611-60620 |
2L..LH85 |
2 | ||
| Common parts | ||||
| 90099-05166 | ||||
| 90105-10061 | ||||
| 90109-08021 | ||||
| 90119-14036 | ||||
| 90201-08001 | ||||
| 90201-09562 | ||||
| 91611-60850 | ||||
| Linked diagrams | ||||
| 1709 | ||||

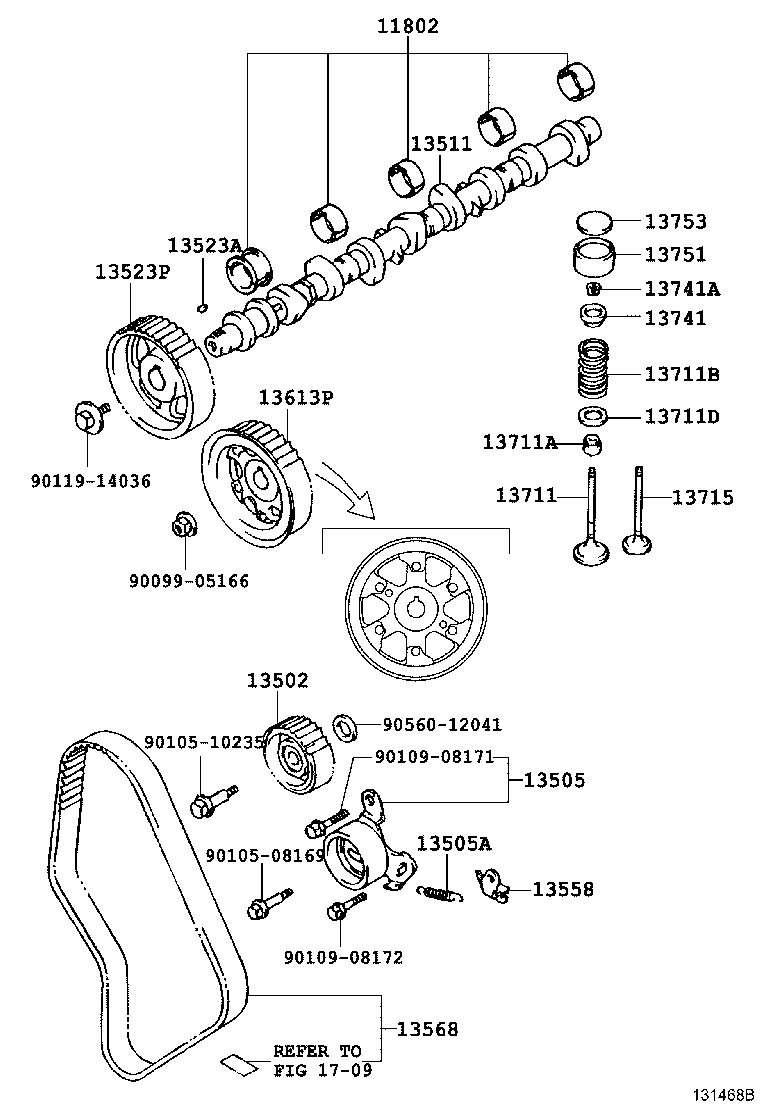

(8808- )2L..LH80 ; (8910- )2L..LH85,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-54010 |
2L..LH85 STD |
1 | ||
| 11802-54010 |
2L..LH8# STD |
1 | ||
| 11803-54010 |
2L..LH8# U/S 0.125 |
1 | ||
| 11804-54010 |
2L..LH8# U/S 0.25 |
1 | ||
| 11803-54010 |
2L..LH85 U/S 0.125 |
1 | ||
| 11804-54010 |
2L..LH85 U/S 0.25 |
1 | ||
| 11803-54020 |
2L..LH8#,9# U/S 0.125 |
1 | ||
| 11802-54020 |
2L..LH8#,9# STD |
1 | ||
| 11804-54020 |
2L..LH8#,9# U/S 0.25 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-54020 |
2L..LH8# |
1 | ||
| 13503-54020 |
2L..LH85 ﾅｼ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 13503-54030 |
2L..LH8#,9# ｱﾘ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-54010 |
2L..LH85 ﾅｼ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 13505-54021 |
2L..LH8#,9# |
1 | ||
| 13505-54010 |
2L..LH8# |
1 | ||
| 13505-54020 |
2L..LH8#,9# ｱﾘ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-14038 |
2L..LH85 |
1 | ||
| 90506-14038 |
2L..LH8# |
1 | ||
| 90506-18060 |
2L..LH8#,9# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-54020 |
2L..LH8# |
1 | ||
| 13501-54020 |
2L..LH85 |
1 | ||
| 13501-54050 |
2L..LH8#,9# |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05004 |
2L..LH8#,9# |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-54040 |
2L..LH8#,9# |
1 | ||
| 13523-54020 |
2L..LH8# |
1 | ||
| 13523-54020 |
2L..LH85 |
1 | ||
| 13558 - BRACKET, SPRING(FOR IDLER) | ||||
| 13558-54010 |
2L..LH85 |
1 | ||
| 13558-54020 |
2L..LH8#,9# |
1 | ||
| 13558-54010 |
2L..LH8# |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-59025 |
2L..LH8# 歯数=130 |
1 | ||
| 13568-59025 |
2L..LH85 歯数=130 |
1 | ||
| 13568-59065 |
2L..LH8#,9# |
1 | ||
| 13568-54070 |
2L..LH8#,9# 歯数=129 |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13603-54020 |
2L..LH8# |
1 | ||
| 13603-54020 |
2L..LH85 |
1 | ||
| 13603-54030 |
2L..LH8#,9# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-54020 |
2L..LH8#,9# |
4 | ||
| 13711-54010 |
2L..LH85 |
4 | ||
| 13711-54010 |
2L..LH8# |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02060 |
2L..LH8# |
8 | ||
| 90913-02053 |
2L..LH8#,9# |
8 | ||
| 90913-02060 |
2L..LH85 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-49001 |
2L..LH8#,9# |
8 | ||
| 90501-44002 |
2L..LH85 |
8 | ||
| 90501-44002 |
2L..LH8# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-20579 |
2L..LH8# |
8 | ||
| 90201-20579 |
2L..LH85 |
8 | ||
| 90201-23003 |
2L..LH8#,9# |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-54010 |
2L..LH8# |
4 | ||
| 13715-54010 |
2L..LH85 |
4 | ||
| 13715-54040 |
2L..LH8# |
4 | ||
| 13715-17010 |
2L..LH8#,9# |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
2L..LH8#,9# |
8 | ||
| 13741-54010 |
2L..LH8# |
8 | ||
| 13741-54010 |
2L..LH85 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
2L..LH8#,9# |
16 | ||
| 90913-03016 |
2L..LH8# |
16 | ||
| 90913-03016 |
2L..LH85 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-54010 |
2L..LH8#,9# |
8 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-54060 |
2L..LH8#,9# 厚さ=2.60,MARK=T06 |
1 | ||
| 13753-54010 |
2L..LH8#,9# 厚さ=2.50,MARK=T01 |
1 | ||
| 13753-54210 |
2L..LH8#,9# 厚さ=2.90,MARK=T21 |
1 | ||
| 13753-54440 |
2L..LH8#,9# 厚さ=2.75,MARK=T44 |
1 | ||
| 13753-54430 |
2L..LH8#,9# 厚さ=2.65,MARK=T43 |
1 | ||
| 13753-54310 |
2L..LH8#,9# 厚さ=3.10,MARK=T31 |
1 | ||
| 13753-54110 |
2L..LH8#,9# 厚さ=2.70,MARK=T11 |
1 | ||
| 13753-54160 |
2L..LH8#,9# 厚さ=2.80,MARK=T16 |
1 | ||
| 13753-54260 |
2L..LH8#,9# 厚さ=3.00,MARK=T26 |
1 | ||
| 13753-54480 |
2L..LH8#,9# 厚さ=3.15,MARK=T48 |
1 | ||
| 13753-54410 |
2L..LH8#,9# 厚さ=3.30,MARK=T41 |
1 | ||
| 13753-54360 |
2L..LH8#,9# 厚さ=3.20,MARK=T36 |
1 | ||
| 13753-54460 |
2L..LH8#,9# 厚さ=2.95,MARK=T46 |
1 | ||
| 13753-54450 |
2L..LH8#,9# 厚さ=2.85,MARK=T45 |
1 | ||
| 13753-54490 |
2L..LH8#,9# 厚さ=3.25,MARK=T49 |
1 | ||
| 13753-54420 |
2L..LH8#,9# 厚さ=2.55,MARK=T42 |
1 | ||
| 13753-54470 |
2L..LH8#,9# 厚さ=3.05,MARK=T47 |
1 | ||
| Common parts | ||||
| 90099-05166 | ||||
| 90105-08169 | ||||
| 90105-10235 | ||||
| 90109-08171 | ||||
| 90109-08172 | ||||
| 90119-14036 | ||||
| 90560-12041 | ||||
| Linked diagrams | ||||
| 1709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
