LH85-MDG (1987)

Toyota Hiace Truck

Production Oct 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

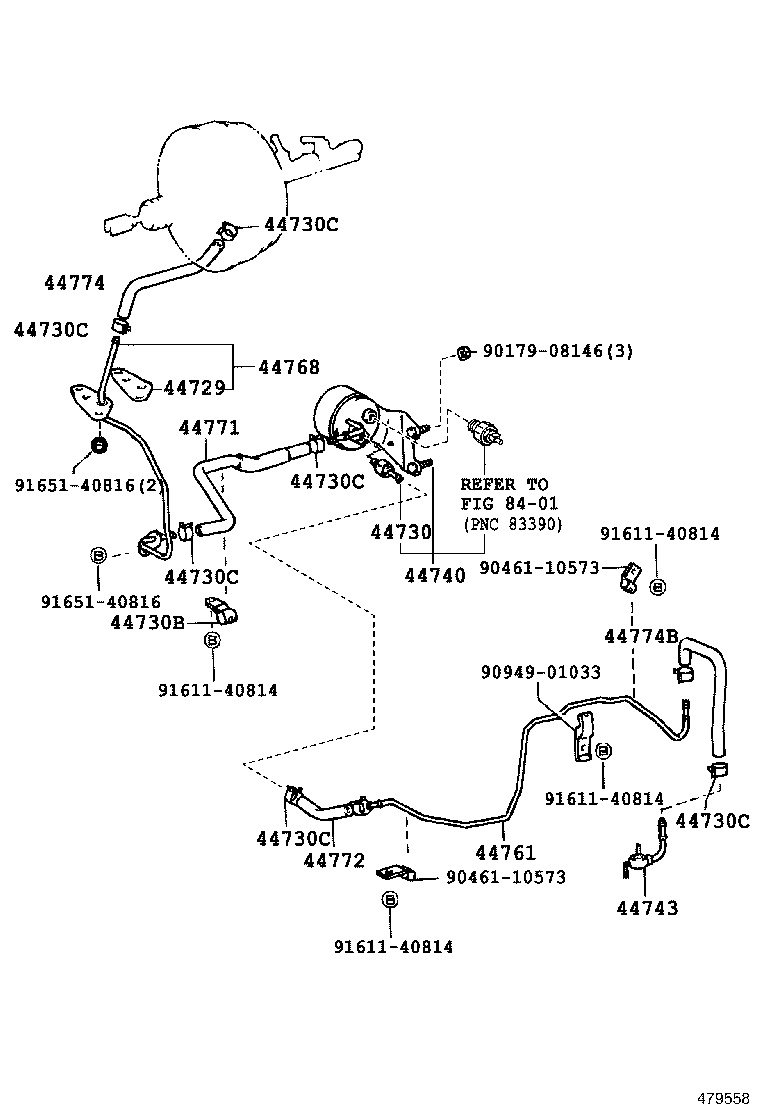

ILLUST NO. 2 OF 2(8710- )LH85,95

Click highlighted areas on diagram

diagram 44729 44730 44730B 44730C 44730C 44730C 44730C 44730C 44730C 44740 44743 44761 44768 44771 44772 44774 44774B 8401 9017908146 9046110573 9046110573 9094901033 9161140814 9161140814 9161140814 9161140814 9165140816 9165140816
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

LH8#,9#,YH81

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

LH8#

 1
44730-60050

LH8#,9#

 1
44730B - CLAMP, VACUUM HOSE
90461-08109

LH8#,9#,YH81

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH8#,9#,YH81

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH8#,9#,YH81

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH8#,9#,YH81

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH8#,9#,YH81

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH8#,9#,YH81

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH8#,9#,YH81

 8
44740 - RESERVOIR ASSY, VACUUM
44740-26071

LH8#,9#

 1
44740-26070

LH8#,9#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09070

LH8#,9#

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ-)

 1
90405-09071

LH8#,9#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25060

LH8#,9#

 1
44768 - TUBE, BOOSTER VACUUM
44768-26010

LH8#,9#,YH81

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26070

LH8#,9#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26060

LH8#,9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26150

LH85,95

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-26160

LH85,95

 1
Common parts
90179-08146
90461-10573
90949-01033
91611-40814
91651-40816
Linked diagrams
8401

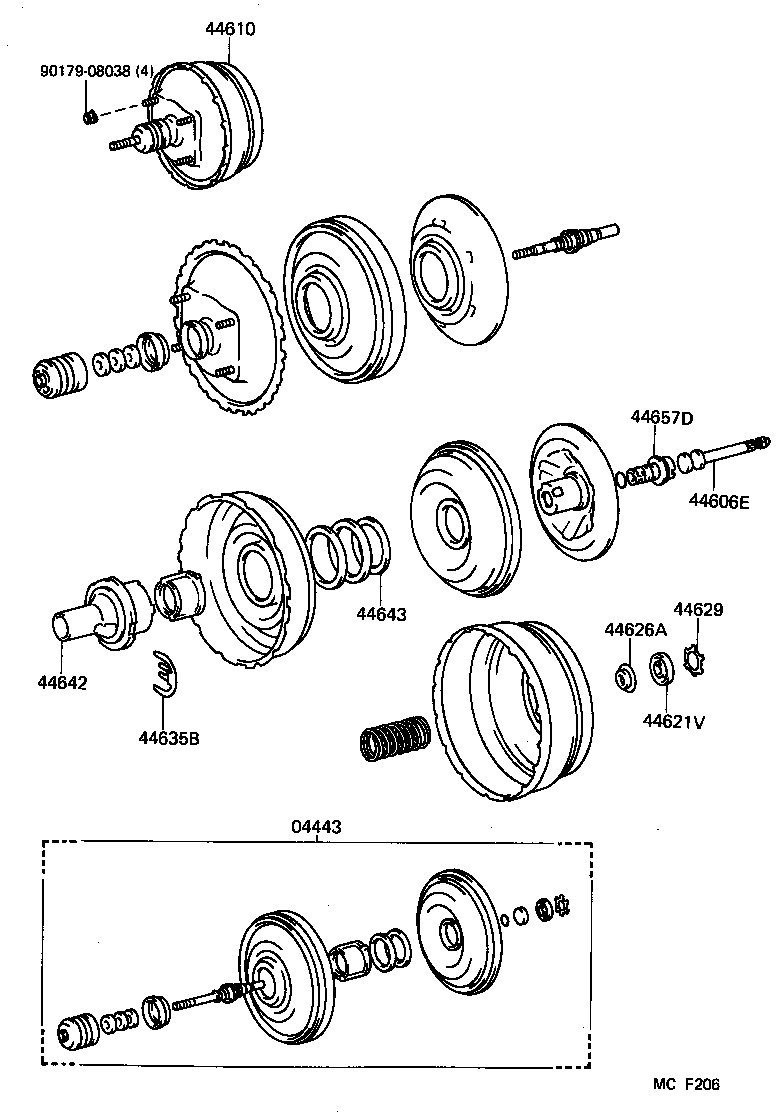

ILLUST NO. 1 OF 2(8710- )LH85,95

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44626A 44629 44635B 44642 44643 44657D 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26400

LH85,95

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800

LH85,95

 1
44610 - BOOSTER ASSY, BRAKE
44610-26390

LH85,95

 1
44621V - SEAL, BOOSTER BODY
44621-14030

LH85,95

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

LH85,95

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

LH85,95

 1
44635B - KEY, VALVE STOPPER
44635-20800

LH85,95

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

LH85,95

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

LH85,95

 1
44657D - CASE, REACTION DISC
44657-20800

LH85,95

 1
Common parts
90179-08038
