LH85-MDD (1987)

Toyota Hiace Truck

Production Oct 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )LH85,95

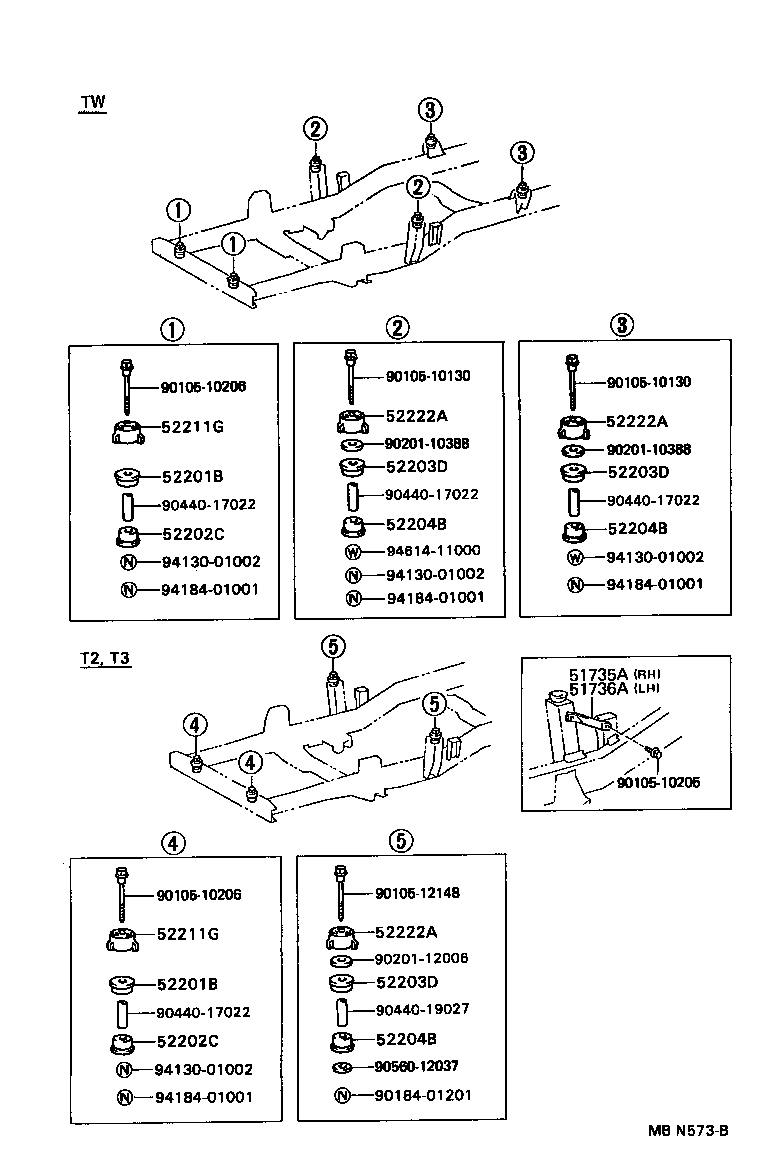

Click highlighted areas on diagram

diagram 51735A 51736A 52201B 52201B 52202C 52202C 52203D 52203D 52203D 52204B 52204B 52204B 52211G 52211G 52222A 52222A 52222A 9010510130 9010510130 9010510205 9010510206 9010510206 9010512148 9018401201 9020110388 9020110388 9020112006 9044017022 9044017022 9044017022 9044017022 9044019027 9056012037 9413001002 9413001002 9413001002 9413001002 9418401001 9418401001 9418401001 9418401001 9461411000
Part # Description Qty Price
51735A - REINFORCEMENT, CAB REAR MOUNTING, RH
51735-26020

LH8#,9#,YH81..T1,T2,T3

 1
51736A - REINFORCEMENT, CAB REAR MOUNTING, LH
51736-26020

LH8#,9#,YH81..T1,T2,T3

 1
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-26010

LH8#,9#,YH81

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-26010

LH8#,9#,YH81

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-26010

LH8#,9#,YH81

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-26010

LH8#,9#,YH81

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-26021

LH8#,9#,YH81..T1,T2,T3

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-26021

LH8#,9#,YH81..T1,T2,T3

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-26021

LH8#,9#,YH81..T1,T2,T3

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-26021

LH8#,9#,YH81..T1,T2,T3

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-26021

LH8#,9#,YH81..T1,T2,T3

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-26021

LH8#,9#,YH81..T1,T2,T3

 2
52211G - SPACER, CAB FRONT MOUNTING
52211-26010

LH85,95

 2
52211G - SPACER, CAB FRONT MOUNTING
52211-26010

LH85,95

 2
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-26010

LH85,95..T2,T3

 2
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-26010

LH85,95..T2,T3

 2
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-26010

LH85,95..T2,T3

 2
Common parts
90105-10130
90105-10205
90105-10206
90105-12148
90184-01201
90201-10388
90201-12006
90440-17022
90440-19027
90560-12037
94130-01002
94184-01001
94614-11000
