LH85-MDD (1987)

Toyota Hiace Truck

Production Oct 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

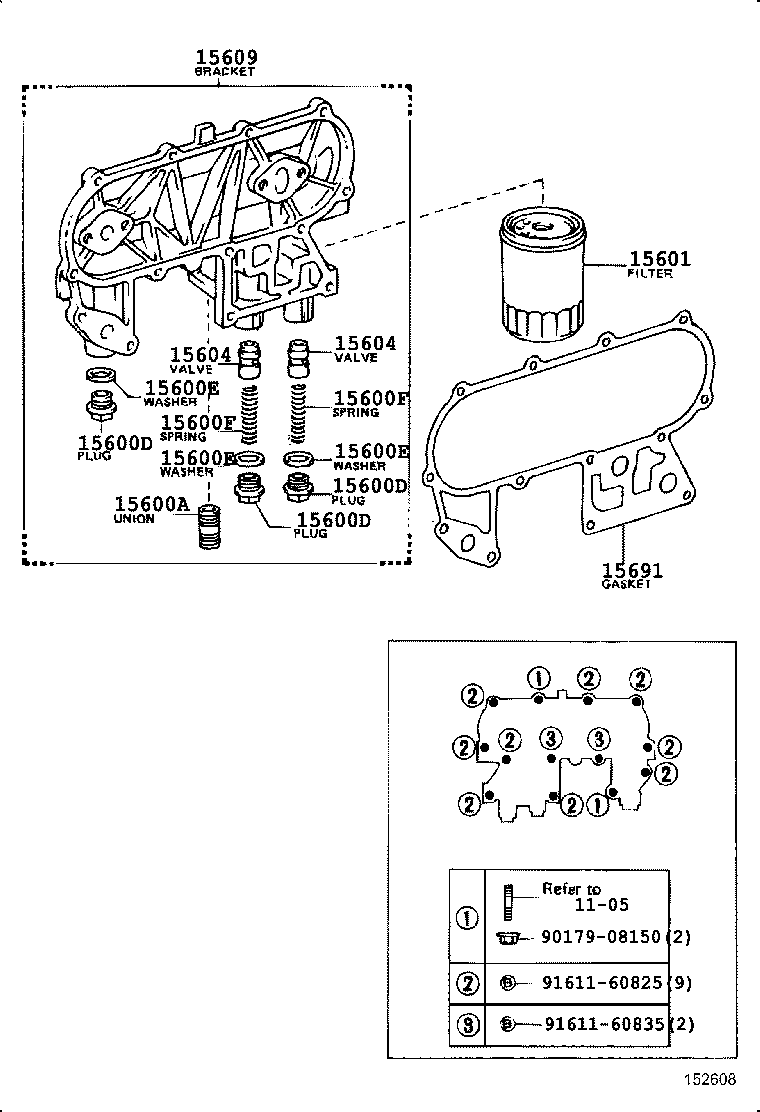

(8808- )2L..LH80 ; (8910- )2L..LH85,9#

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908150 9161160825 9161160835
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19011

2L..LH8#,9#

 1
15116-54010

2L..LH8#

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L..LH8#,9#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L..LH8#,9#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L..LH8#,9#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH8#

 3
90430-18021

2L..LH8#,9#

 3
90430-18029

2L..LH8#,9#

 3
90430-18001

2L..LH8#,9#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH8#

 3
90430-18021

2L..LH8#,9#

 3
90430-18029

2L..LH8#,9#

 3
90430-18001

2L..LH8#,9#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH8#

 3
90430-18021

2L..LH8#,9#

 3
90430-18029

2L..LH8#,9#

 3
90430-18001

2L..LH8#,9#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L..LH8#,9#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L..LH8#,9#

 2
15601 - FILTER SUB-ASSY, OIL
15600-41010

2L..LH8#,9#

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L..LH8#,9#

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L..LH8#,9#

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54013

2L..LH8#,9#

 1
15609-54012

2L..LH8#

 1
15691 - GASKET, OIL FILTER
15692-54020

2L..LH8#

 1
15692-54030

2L..LH8#,9#

 1
Common parts
90179-08150
91611-60825
91611-60835
Linked diagrams
1105

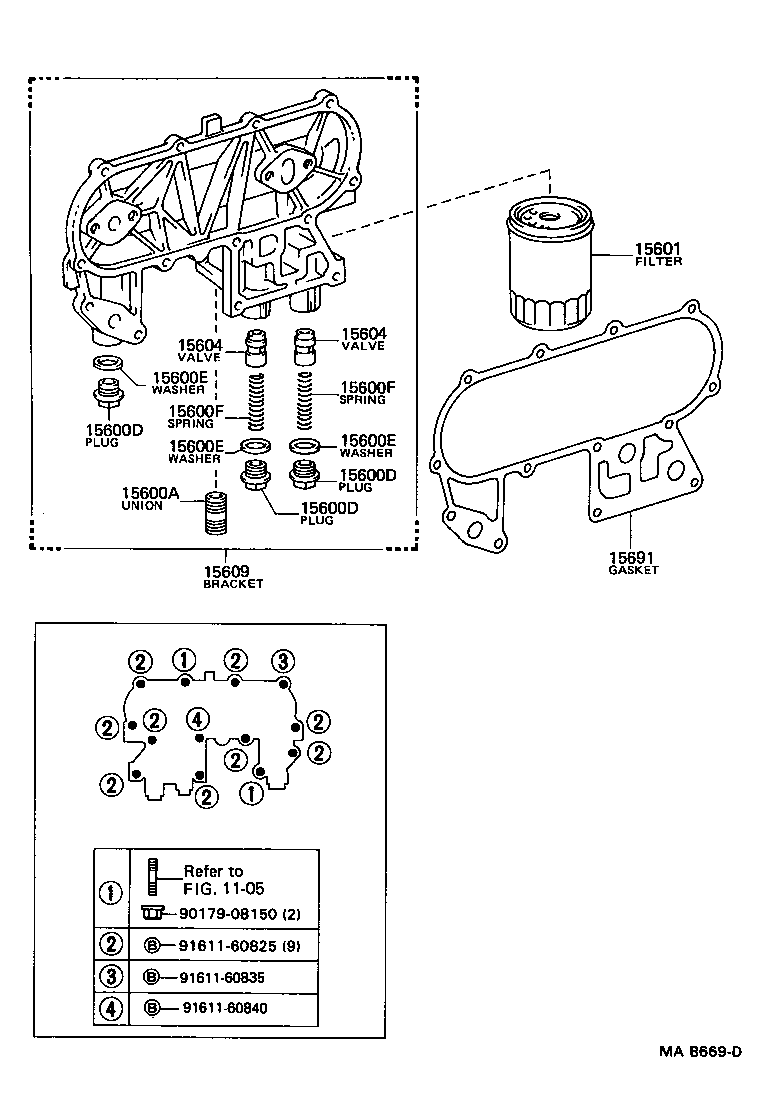

(8708-8808)2L ; (8808-8910)2L..LH85

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908150 9161160825 9161160835 9161160840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19011

2L..LH8#,9#

 1
15116-54010

2L..LH8#

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L..LH8#,9#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L..LH8#,9#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L..LH8#,9#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH8#

 3
90430-18021

2L..LH8#,9#

 3
90430-18029

2L..LH8#,9#

 3
90430-18001

2L..LH8#,9#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH8#

 3
90430-18021

2L..LH8#,9#

 3
90430-18029

2L..LH8#,9#

 3
90430-18001

2L..LH8#,9#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH8#

 3
90430-18021

2L..LH8#,9#

 3
90430-18029

2L..LH8#,9#

 3
90430-18001

2L..LH8#,9#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L..LH8#,9#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L..LH8#,9#

 2
15601 - FILTER SUB-ASSY, OIL
15600-41010

2L..LH8#,9#

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L..LH8#,9#

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L..LH8#,9#

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54013

2L..LH8#,9#

 1
15609-54012

2L..LH8#

 1
15691 - GASKET, OIL FILTER
15692-54020

2L..LH8#

 1
15692-54030

2L..LH8#,9#

 1
Common parts
90179-08150
91611-60825
91611-60835
91611-60840
Linked diagrams
1105
