LH85-MDB3 (1987)

Toyota Hiace Truck

Production Oct 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )LH85,95

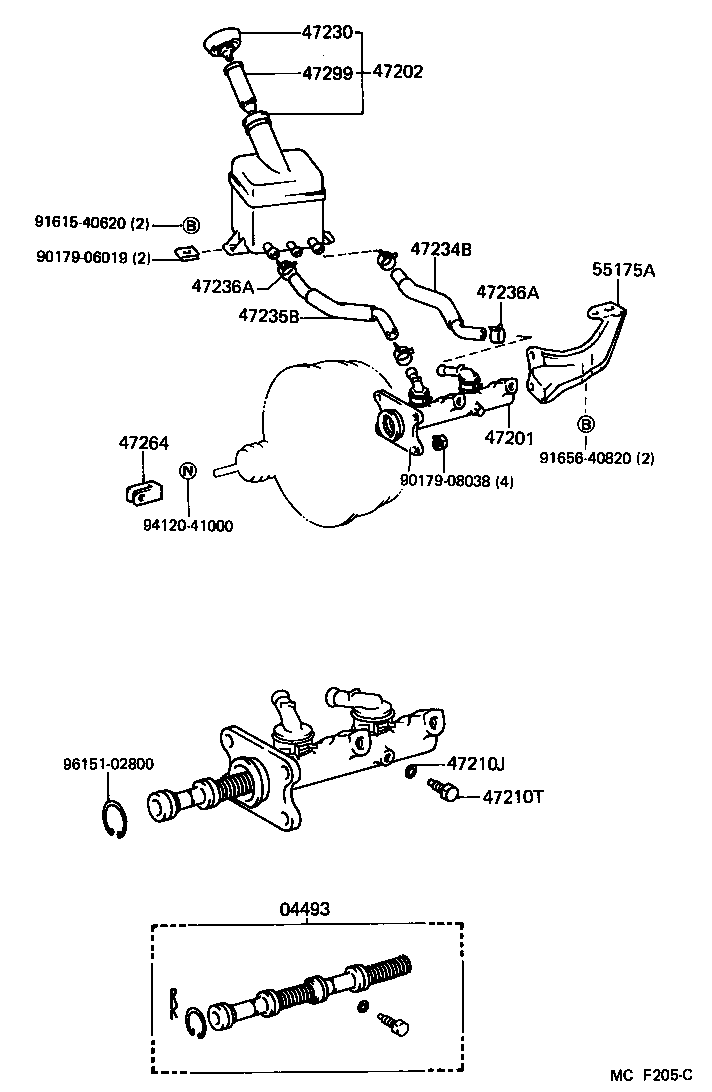

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47234B 47235B 47236A 47236A 47264 47299 55175A 9017906019 9017908038 9161540620 9165640820 9412041000 9615102800
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-26140

LH85,95

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-26480

LH85,95

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-36040

LH8#,9#,YH81..5F

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

LH8#,9#,YH81

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

LH8#,9#,YH81

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-28010

LH8#,9#,YH81

 1
47234B - TUBE, RESERVOIR, NO.1
47234-26180

LH85,95

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-26170

LH85,95

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

LH8#,9#,YH81

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

LH8#,9#,YH81

 4
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

LH8#,9#,YH81

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-26020

LH8#,9#,YH81

 1
55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55175-95A04

LH85,95

 1
Common parts
90179-06019
90179-08038
91615-40620
91656-40820
94120-41000
96151-02800
