LH80-PDLT (1985)
Toyota Hiace Truck
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

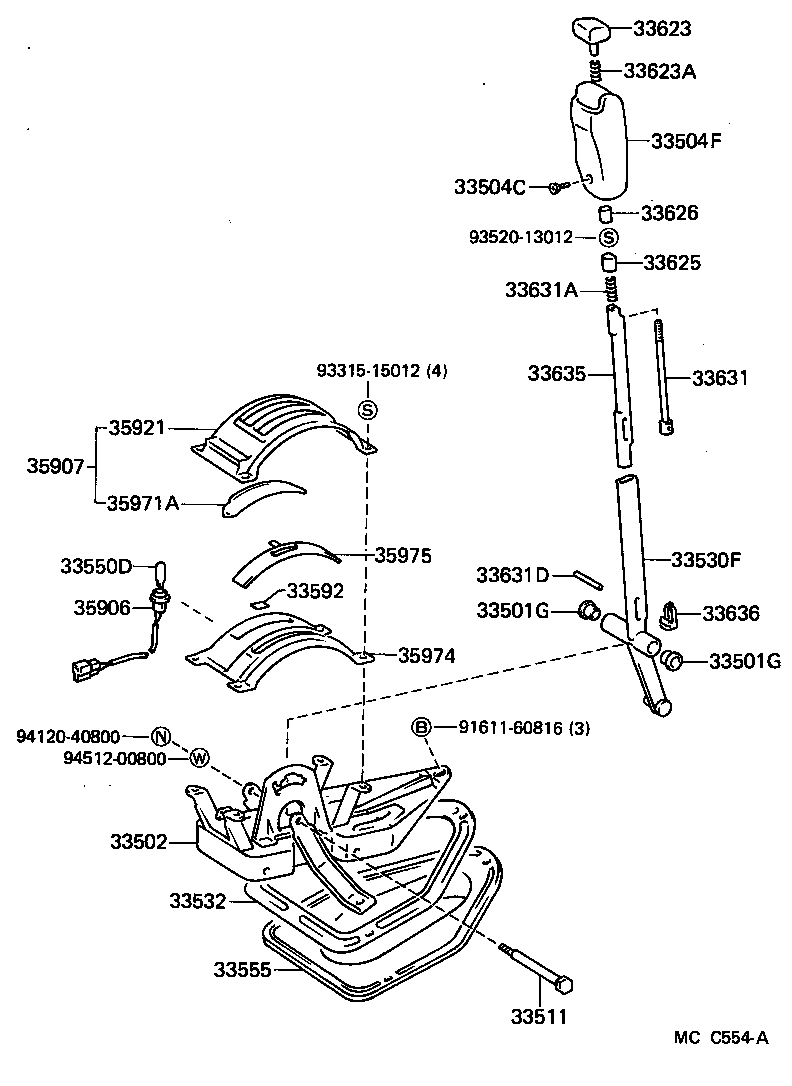

ILLUST NO. 1 OF 2(8508- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
LH80..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
LH80..4FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-26020 |
LH80..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
LH80..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1701004 |
LH80..4FC BLUE,BLUE |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22160 |
LH80..4FC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33501-26200 |
LH80..4FC |
1 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-26010 |
LH80..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
LH80..4FC 12V 1.7W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-26010 |
LH80..4FC |
1 | ||
| 33592 - REFLECTOR, SHIFT POSITION LAMP | ||||
| 33592-26010 |
LH80..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1701004 |
LH80..4FC BLUE,BLUE |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07037 |
LH80..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-17010 |
LH80..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-17010 |
LH80..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-26020 |
LH80..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
LH80..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
LH80..4FC |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-26020 |
LH80..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
LH80..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-26010 |
LH80..4FC |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-26060 |
LH80..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-26050 |
LH80..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-22040 |
LH80..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-26010 |
LH80..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-26040 |
LH80..4FC |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 93315-15012 | ||||
| 93520-13012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 2(8508- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-26010 |
LH80..4FC |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94611-10800 |
LH80..4FC |
2 | ||
| 90201-08050 |
LH80..4FC 外径=18,内径=8 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94611-10800 |
LH80..4FC |
2 | ||
| 90201-08050 |
LH80..4FC 外径=18,内径=8 |
2 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01255 |
LH80..4FC |
1 | ||
| 90949-01403 |
LH80..4FC |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08146 |
LH80..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-26010 |
LH80..4FC |
1 | ||
| Common parts | ||||
| 90468-10015 | ||||
| 90468-14007 | ||||
| 90468-14011 | ||||
(8708-8808)4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60816 | ||||
| 93315-15012 | ||||
| 93520-13012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
