8719 - HEATING & AIR CONDITIONING - COMPRESSOR

LH80-PDL (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995

Engine 2L

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

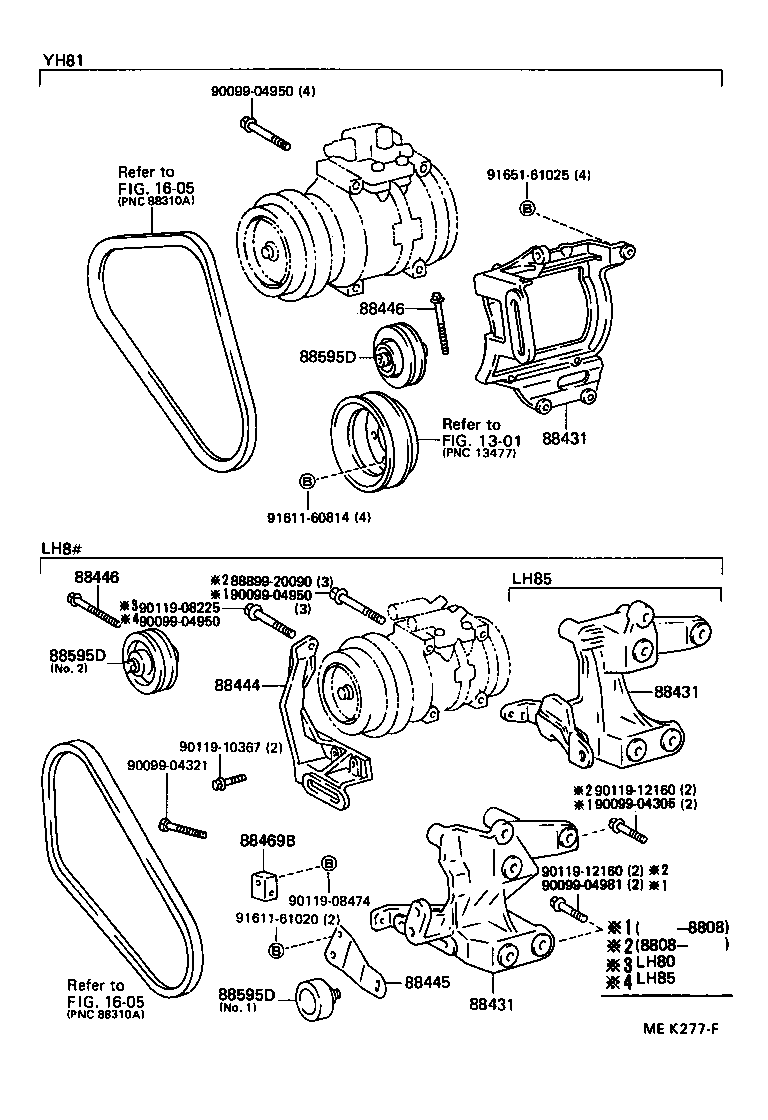

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88444 - BRACKET, IDLE PULLEY
88444-35050	LH90;LH80..CBU	08/1988 - 05/1995	1
88444-26100	LH80..CBU	08/1987 - 08/1988	1
88445 - BRACKET, IDLE PULLEY
88444-26070	LH80	08/1987 - 08/1988	1
88446 - BOLT, IDLE PULLEY
88446-35010	LH85,9#;LH80..CBU	08/1988 - 12/1992	1
88446-35010	LH8#	08/1987 - 08/1988	1
88446-35010	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU	12/1992 - 05/1995	1
88446 - BOLT, IDLE PULLEY
88446-35010	LH85,9#;LH80..CBU	08/1988 - 12/1992	1
88446-35010	LH8#	08/1987 - 08/1988	1
88446-35010	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU	12/1992 - 05/1995	1
88469B - COLLAR
88469-30280	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU	12/1992 - 05/1995	1
88469-30280	LH8#,9#	08/1987 - 12/1992	1
88595D - PULLEY ASSY, IDLE
88440-26070	LH85,9#;LH80..CBU NO.1	08/1987 - 12/1992	1
88440-35010	LH85,9#;LH80..CBU NO.2	08/1987 - 12/1992	1
88440-35010	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.2	12/1992 - 05/1995	1
88440-26070	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.1	12/1992 - 05/1995	1
88595D - PULLEY ASSY, IDLE
88440-26070	LH85,9#;LH80..CBU NO.1	08/1987 - 12/1992	1
88440-35010	LH85,9#;LH80..CBU NO.2	08/1987 - 12/1992	1
88440-35010	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.2	12/1992 - 05/1995	1
88440-26070	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.1	12/1992 - 05/1995	1
88595D - PULLEY ASSY, IDLE
88440-26070	LH85,9#;LH80..CBU NO.1	08/1987 - 12/1992	1
88440-35010	LH85,9#;LH80..CBU NO.2	08/1987 - 12/1992	1
88440-35010	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.2	12/1992 - 05/1995	1
88440-26070	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.1	12/1992 - 05/1995	1
Common parts
88899-20090
90099-04305
90099-04321
90099-04950
90099-04981
90119-08225
90119-08474
90119-10367
90119-12160
91611-60814
91611-61020
91651-61025
Linked diagrams
1301
1605

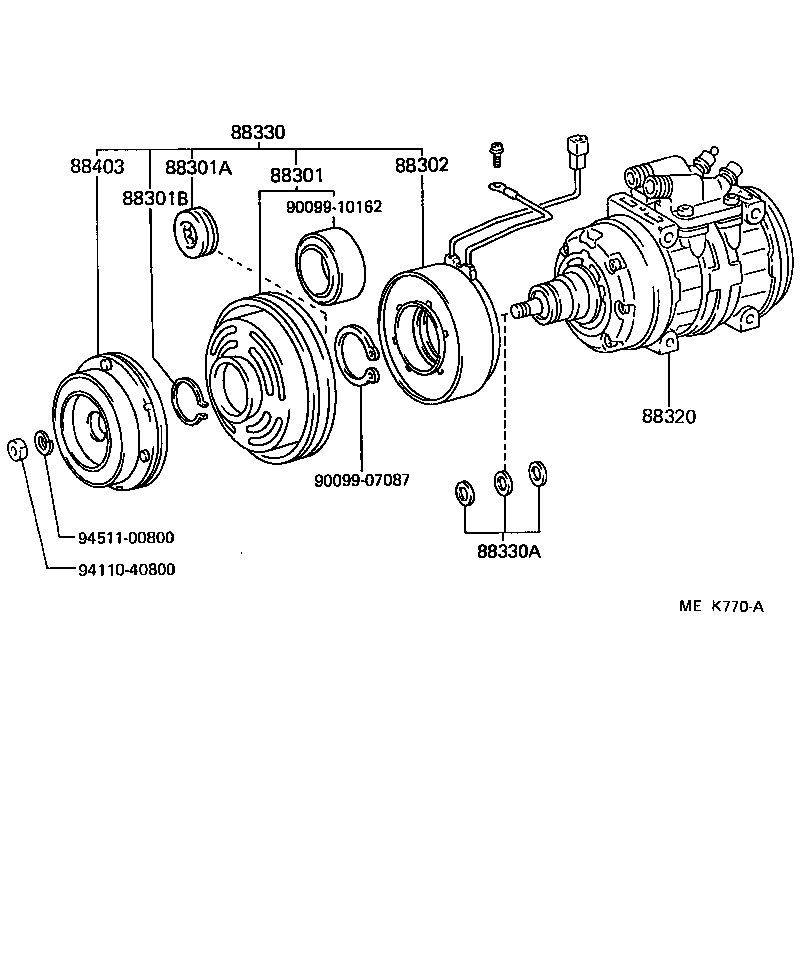

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030	LH80,YH81	08/1987 - 08/1988	1
88412-27010	LH80..CBU	08/1988 - 08/1989	1
88412-27010	LH85,9#;LH80..CBU	08/1989 - 09/1993	1
88301A - BEARING (FOR MAGNET CLUTCH)
90099-10133	LH80,YH81	08/1987 - 08/1988	1
88301B - RING, SNAP (FOR MAGNET CLUTCH)
90099-07114	LH80,YH81	08/1987 - 08/1988	1
90099-07114	LH80,YH81	08/1988 - 09/1993	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050	LH80,YH81	08/1987 - 08/1988	1
88411-60020	LH90;LH80..CBU	08/1988 - 09/1993	1
88320 - COMPRESSOR ASSY, COOLER
88320-26300	LH80..CBU	08/1987 - 08/1988	1
88320-26480	LH85,9#;LH80..CBU	09/1993 - 05/1995	1
88320-26290	LH85,9#;LH80..CBU	08/1988 - 09/1993	1
88330 - CLUTCH ASSY, MAGNET
88410-25040	LH80..CBU	08/1988 - 02/1991	1
88410-22080	YH81;LH80..CBU	08/1987 - 08/1988	1
88410-25060	LH80..CBU	02/1991 - 09/1993	1
88410-25070	LH90;LH80..CBU	09/1993 - 05/1995	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	LH8#,9#	08/1988 - 09/1993	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030	LH80,YH81	08/1987 - 08/1988	1
88403-16011	LH85,9#;LH80..CBU	08/1989 - 09/1993	1
88403-16011	LH80..CBU	08/1988 - 08/1989	1
Common parts
90099-07087
90099-10162
94110-40800
94511-00800

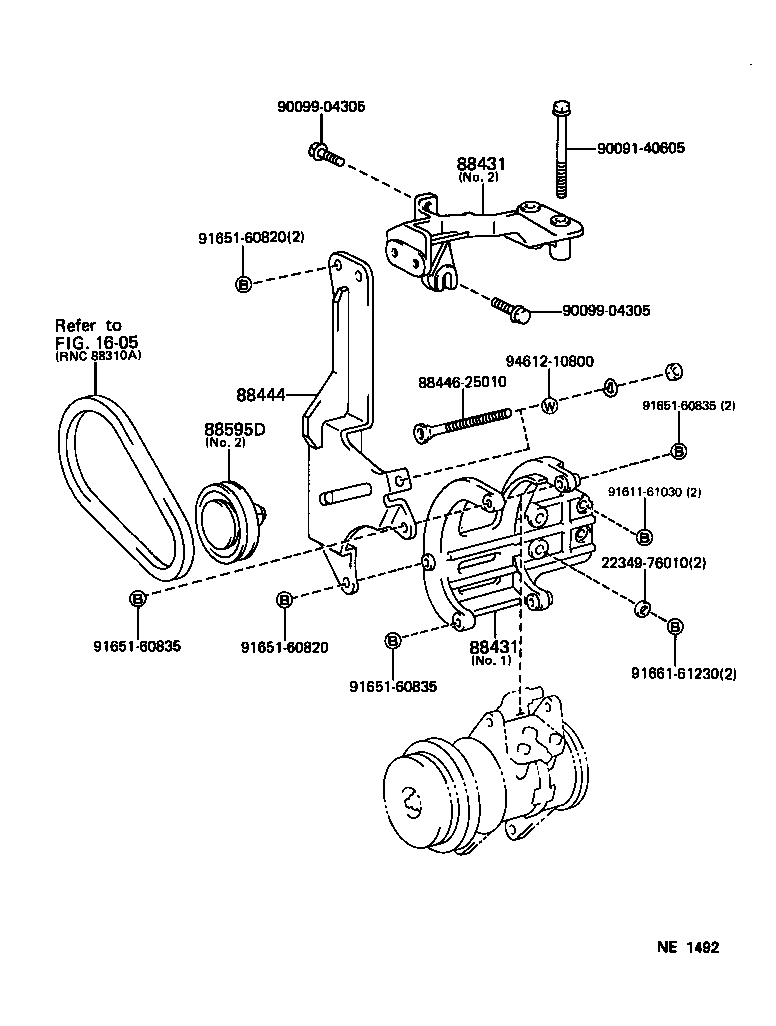

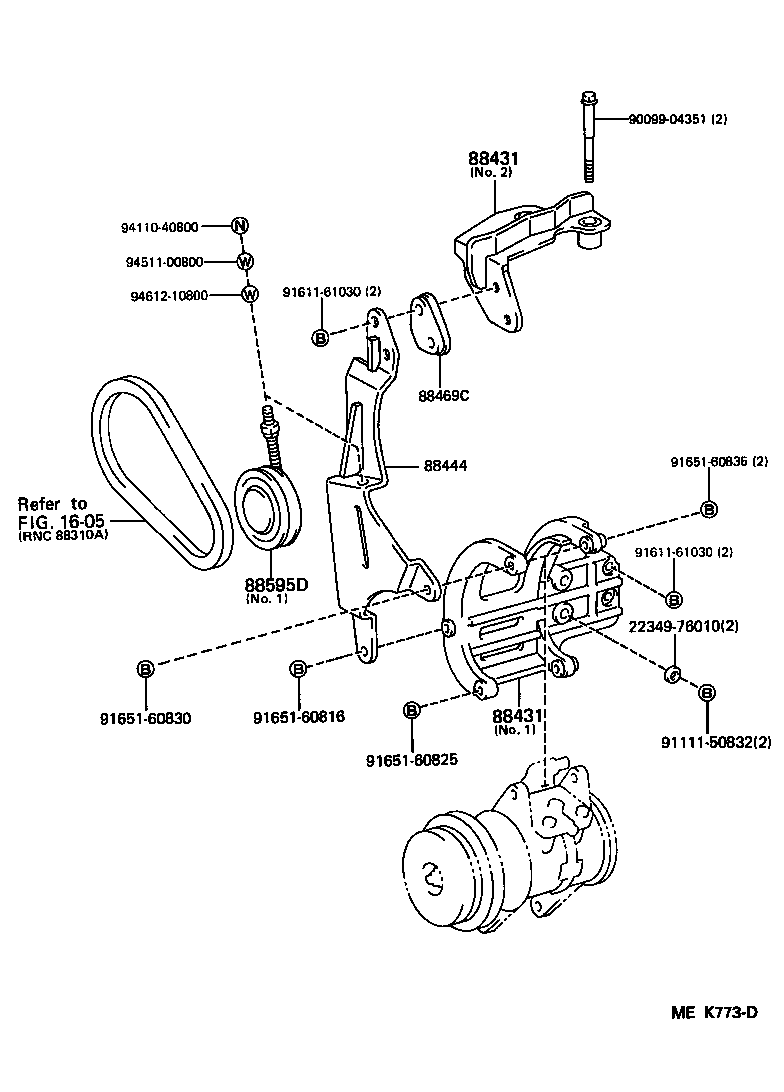

ILLUST NO. 2 OF 2(8708-8808)

Click highlighted areas on diagram

W/TRUCK FREZZER

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88444 - BRACKET, IDLE PULLEY
88444-35050	LH90;LH80..CBU	08/1988 - 05/1995	1
88444-26100	LH80..CBU	08/1987 - 08/1988	1
88595D - PULLEY ASSY, IDLE
88440-26070	LH85,9#;LH80..CBU NO.1	08/1987 - 12/1992	1
88440-35010	LH85,9#;LH80..CBU NO.2	08/1987 - 12/1992	1
88440-35010	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.2	12/1992 - 05/1995	1
88440-26070	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.1	12/1992 - 05/1995	1
Common parts
22349-76010
90099-04351
91111-50832
91611-61030
91651-60816
91651-60825
91651-60830
91651-60835
94110-40800
94511-00800
94612-10800
Linked diagrams
1605

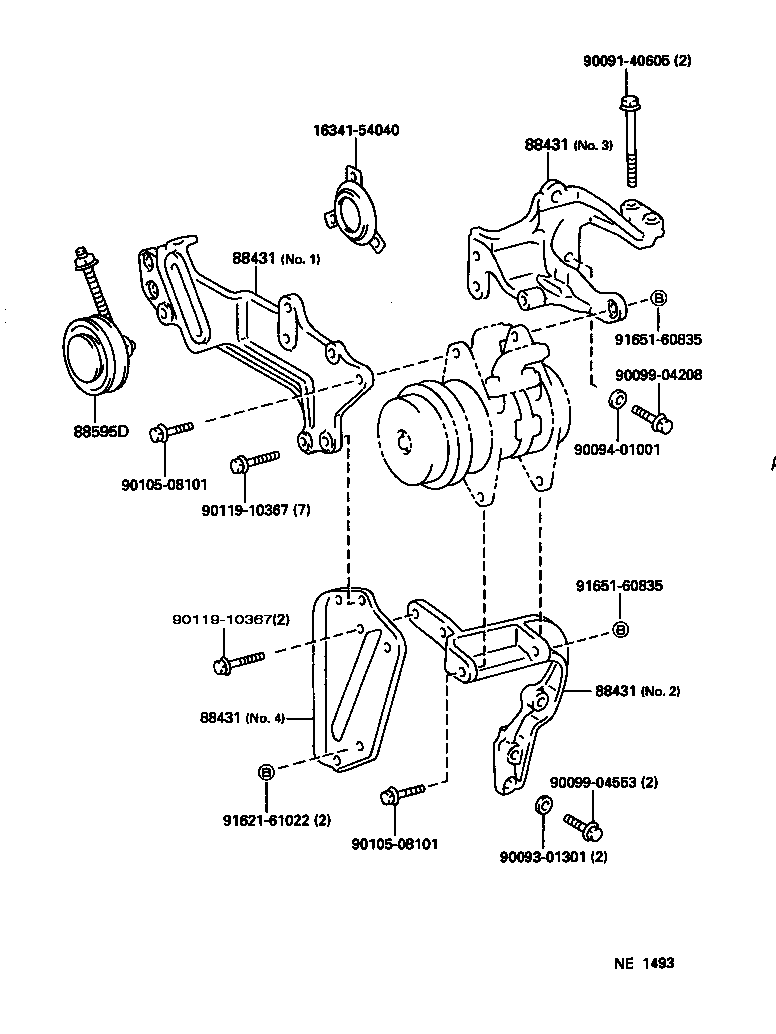

ILLUST NO. 2 OF 2(8808-9301)

Click highlighted areas on diagram

W/TRUCK FREZZER

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88444 - BRACKET, IDLE PULLEY
88444-35050	LH90;LH80..CBU	08/1988 - 05/1995	1
88444-26100	LH80..CBU	08/1987 - 08/1988	1
88595D - PULLEY ASSY, IDLE
88440-26070	LH85,9#;LH80..CBU NO.1	08/1987 - 12/1992	1
88440-35010	LH85,9#;LH80..CBU NO.2	08/1987 - 12/1992	1
88440-35010	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.2	12/1992 - 05/1995	1
88440-26070	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.1	12/1992 - 05/1995	1
Common parts
22349-76010
88446-25010
90091-40605
90099-04305
91611-61030
91651-60820
91651-60835
91661-61230
94612-10800
Linked diagrams
1605

ILLUST NO. 2 OF 2(9301- )

Click highlighted areas on diagram

W/TRUCK FREZZER

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100	LH80..CBU	08/1987 - 08/1988	1
88431-35170	LH90;LH80..CBU	08/1988 - 05/1995	1
88595D - PULLEY ASSY, IDLE
88440-26070	LH85,9#;LH80..CBU NO.1	08/1987 - 12/1992	1
88440-35010	LH85,9#;LH80..CBU NO.2	08/1987 - 12/1992	1
88440-35010	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.2	12/1992 - 05/1995	1
88440-26070	LH9#;LH80..CBU;LH85..T2,TW;LH85..T3..CBU NO.1	12/1992 - 05/1995	1
Common parts
16341-54040
90091-40605
90093-01301
90094-01001
90099-04208
90099-04553
90105-08101
90119-10367
91621-61022
91651-60835
