LH80-PDL (1987)
Toyota Hiace Truck
Production
Aug 1987
-
May 1995
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8708- )LH80,90,YH81
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-26270 |
LH80..TS;LH80..TB..ST |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
LH80,90,YH81 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26280 |
LH80,90,YH81 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
LH80,90,YH81 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
LH80,90,YH81 |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-28120 |
LH80,90,YH81 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
LH80,90,YH81 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

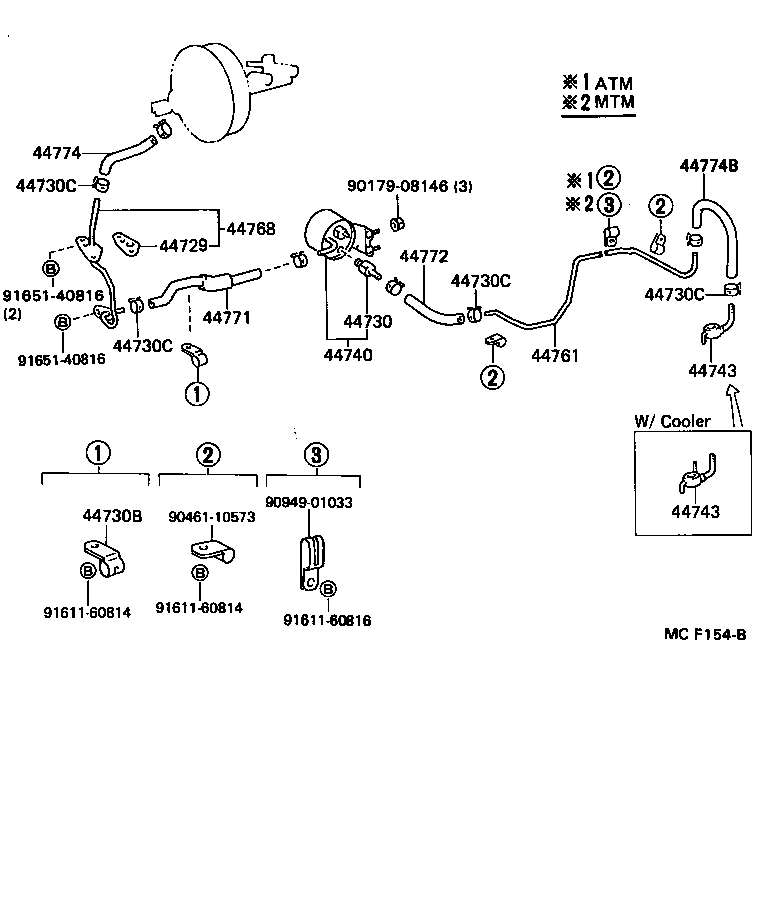

ILLUST NO. 2 OF 2(8708- )LH80,90
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
LH8#,9#,YH81 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LH8# |
1 | ||
| 44730-60050 |
LH8#,9# |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 90461-08109 |
LH8#,9#,YH81 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH8#,9#,YH81 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH8#,9#,YH81 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH8#,9#,YH81 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH8#,9#,YH81 |
8 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-26071 |
LH8#,9# |
1 | ||
| 44740-26070 |
LH8#,9# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09070 |
LH8#,9# ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ-) |
1 | ||
| 90405-09071 |
LH8#,9# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09070 |
LH8#,9# ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ-) |
1 | ||
| 90405-09071 |
LH8#,9# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-25060 |
LH8#,9# |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-26010 |
LH8#,9#,YH81 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-26070 |
LH8#,9# |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-26060 |
LH8#,9# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26100 |
LH80,90,YH81 |
1 | ||
| 44774B - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26110 |
LH80,90 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-10573 | ||||
| 90949-01033 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
