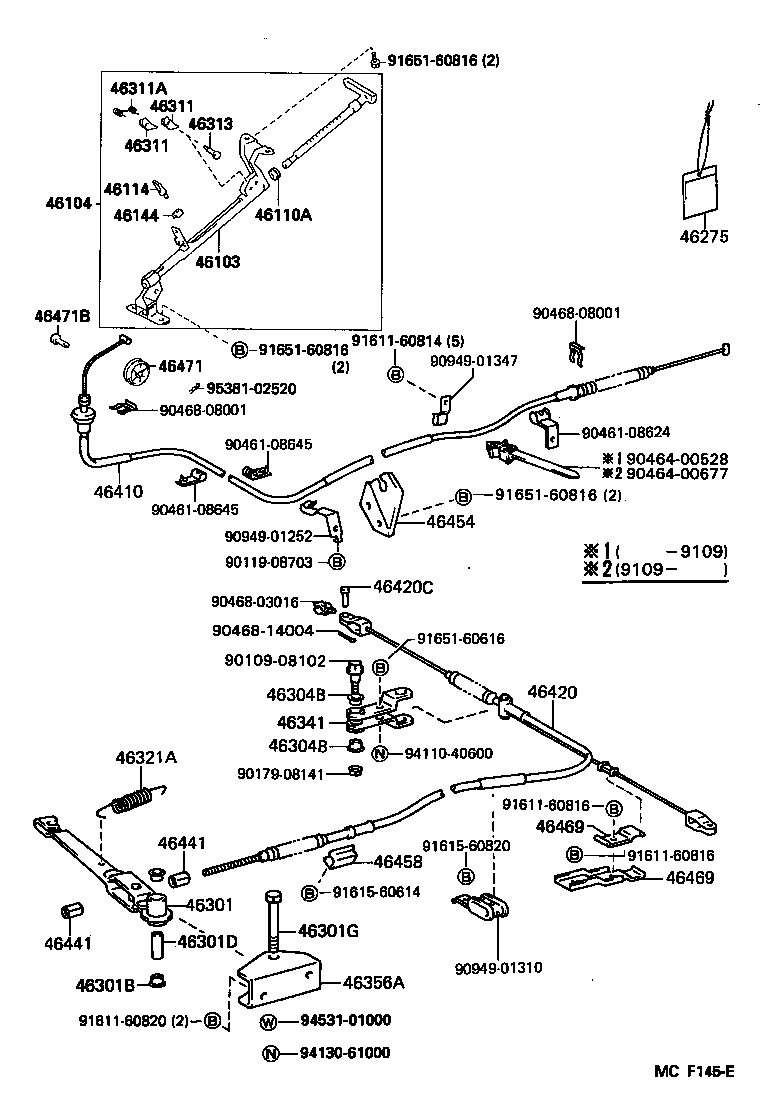

LH80-PDL (1987)
Toyota Hiace Truck
(8708- )LH80,90,YH81..T2..ST ; (8710-8910)LH85 ; (8910- )LH85,95..T2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26120 |
LH8#,YH81 |
1 | ||
| 46103-26120 |
LH85,95..T2;LH80,90,YH81 |
1 | ||
| 46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46104-26080 |
LH85..T2;LH80,YH81 |
1 | ||
| 46104-26170 |
LH85,95..T2;LH80,90,YH81 |
1 | ||
| 46104-26080 |
LH8#,YH81 |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
LH8#,9#,YH81 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LH8#,9#,YH81 |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
LH8#,9#,YH81 |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
LH8#,9#,YH81 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-26030 |
LH8#,9#,YH81..T2..ST |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13192 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 90386-13007 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10003 |
LH85,95;LH80,90,YH81..T2..ST |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 90101-10039 |
LH85,95;LH80,90,YH81..T2..ST |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
LH8#,9#,YH81 |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
LH8#,9#,YH81 |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
LH8#,9#,YH81 |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
LH8#,9#,YH81 |
2 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-18058 |
LH85;LH80,YH81..T2..ST |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26090 |
LH85,95;LH80,90,YH81..T2..ST |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26250 |
LH85;LH80,YH81..T2..ST F.NO.YH81-0009500,LH80-0030673,LH85-0006027ﾏﾃﾞ |
1 | ||
| 46410-26250 |
LH8#,9#,YH81..T2..ST |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26211 |
LH8#,YH81..T2..ST |
1 | ||
| 46420-26210 |
LH8#,YH81..T2..ST |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH85,95;LH80,90,YH81..T2..ST |
2 | ||
| 46454 - BRACKET, CABLE RETAINER, FRONT | ||||
| 46454-26051 |
LH85,95;LH80,90,YH81..T2..ST |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LH85,95;LH80,90,YH81..T2..ST |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-25010 |
LH85,95;LH80,90,YH81..T2..ST NO.1 |
1 | ||
| 46469-60020 |
LH85,95;LH80,90,YH81..T2..ST NO.2 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-25010 |
LH85,95;LH80,90,YH81..T2..ST NO.1 |
1 | ||
| 46469-60020 |
LH85,95;LH80,90,YH81..T2..ST NO.2 |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
LH8#,9#,YH81 |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
LH8#,9#,YH81 |
1 | ||
| Common parts | ||||
| 90109-08102 | ||||
| 90119-08703 | ||||
| 90179-08141 | ||||
| 90461-08624 | ||||
| 90461-08645 | ||||
| 90464-00528 | ||||
| 90464-00677 | ||||
| 90468-03016 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90949-01252 | ||||
| 90949-01310 | ||||
| 90949-01347 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91615-60614 | ||||
| 91615-60820 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 94110-40600 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| 95381-02520 | ||||
