LH80-PDL (1985)
Toyota Hiace Truck
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

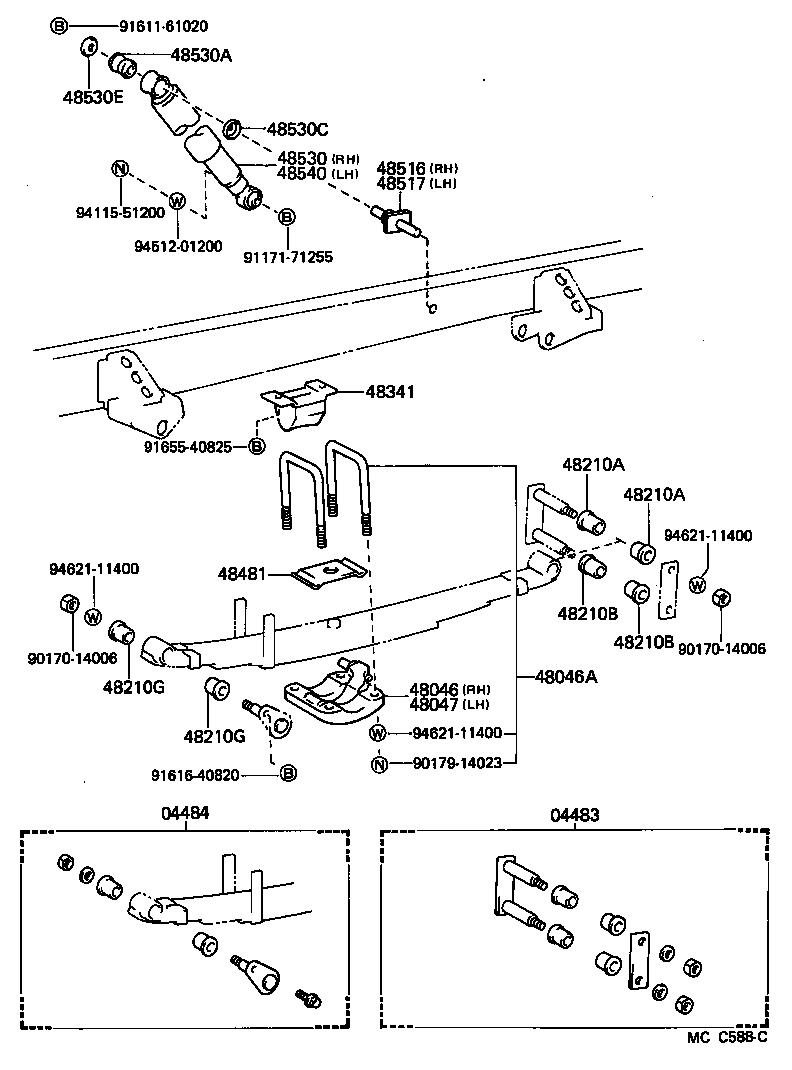

ILLUST NO. 1 OF 2(8508- )ST
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26010 |
LH80,YH80..ST |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
LH80,YH80 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-26080 |
LH80,YH80..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14232 |
LH80..ST |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-26080 |
LH80,YH80..ST |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LH80,YH80..ST |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LH80,YH80..ST |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LH80,YH80 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LH80,YH80 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LH80,YH80 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LH80,YH80 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26070 |
LH80,YH80..T2..ST |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-26010 |
LH80,YH80..ST |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-26010 |
LH80,YH80 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-26010 |
LH80,YH80 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-26170 |
LH80,YH80..T2..ST |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
LH80,YH80 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LH80,YH80 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03007 |
LH80,YH80..ST |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-26170 |
LH80,YH80..T2..ST |
1 | ||
| Common parts | ||||
| 90170-14006 | ||||
| 90179-14023 | ||||
| 91171-71255 | ||||
| 91611-61020 | ||||
| 91616-40820 | ||||
| 91655-40825 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

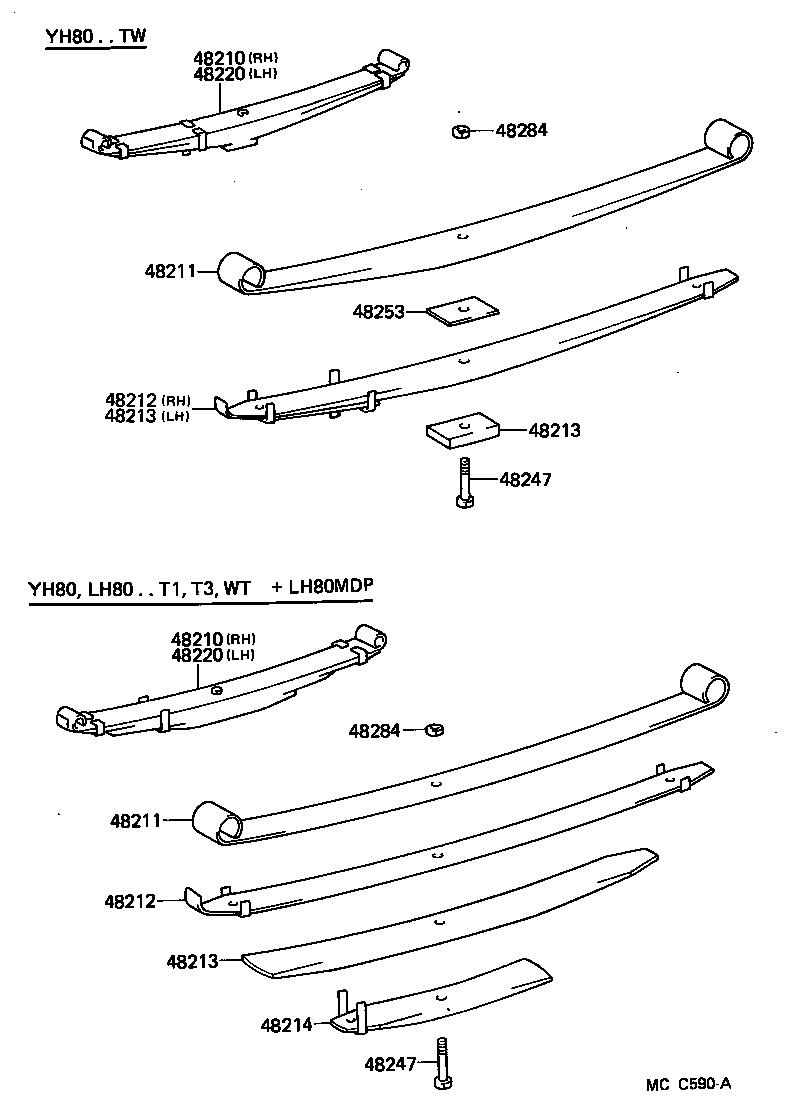

ILLUST NO. 2 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26400 |
LH80,YH80..T2..ST # |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26400 |
LH80,YH80..T2..ST # |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26400 |
LH80,YH80..T2..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26400 |
LH80,YH80..T2..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26400 |
LH80,YH80..T2..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26400 |
LH80,YH80..T2..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-26400 |
LH80,YH80..T2..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-26400 |
LH80,YH80..T2..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-26400 |
LH80,YH80..T2..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-26400 |
LH80,YH80..T2..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26400 |
LH80,YH80..T2..ST # |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26400 |
LH80,YH80..T2..ST # |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36450 |
LH80 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36450 |
LH80 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 94110-51000 |
LH80,YH80 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 94110-51000 |
LH80,YH80 |
2 | ||
ILLUST NO. 2 OF 2(8708-8910)LH80,YH81 ; (8910- )WT ; (8910-)LH80,90,YH81..T1,T3,TW
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
