LH80-MDP (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

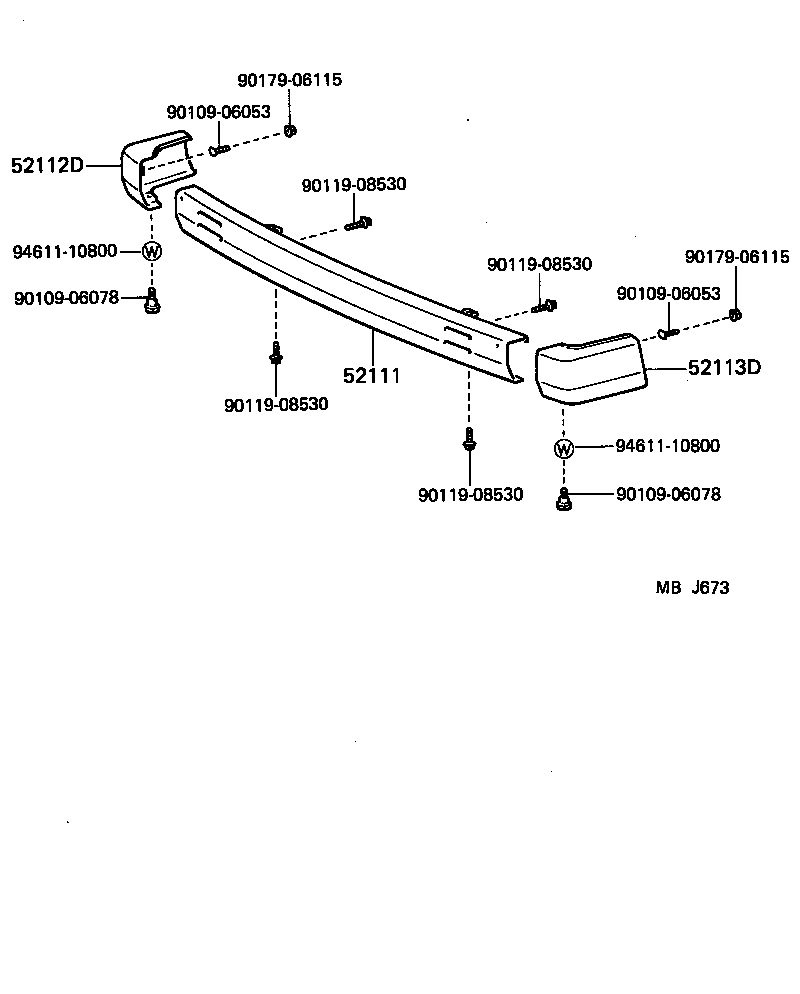

diagram 52111 52112D 52113D 9010906053 9010906053 9010906078 9010906078 9011908530 9011908530 9011908530 9011908530 9017906115 9017906115 9461110800 9461110800
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52101-95A22

LH80,YH80

 1
52101-95A23

LH80,YH80

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95A00

LH80,YH80

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95A03

LH80,YH80

 1
Common parts
90109-06053
90109-06078
90119-08530
90179-06115
94611-10800

(8708-9109)

Click highlighted areas on diagram

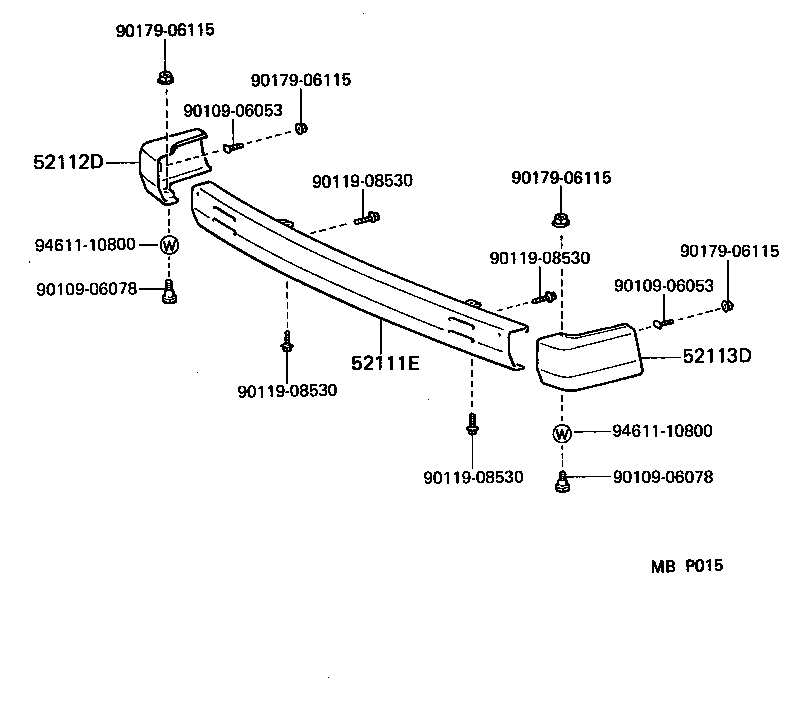

diagram 52111E 52112D 52113D 9010906053 9010906053 9010906078 9010906078 9011908530 9011908530 9011908530 9011908530 9017906115 9017906115 9017906115 9017906115 9461110800 9461110800
Part # Description Qty Price
Common parts
90109-06053
90109-06078
90119-08530
90179-06115
94611-10800
