LH80-MDP (1985)
Toyota Hiace Truck
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

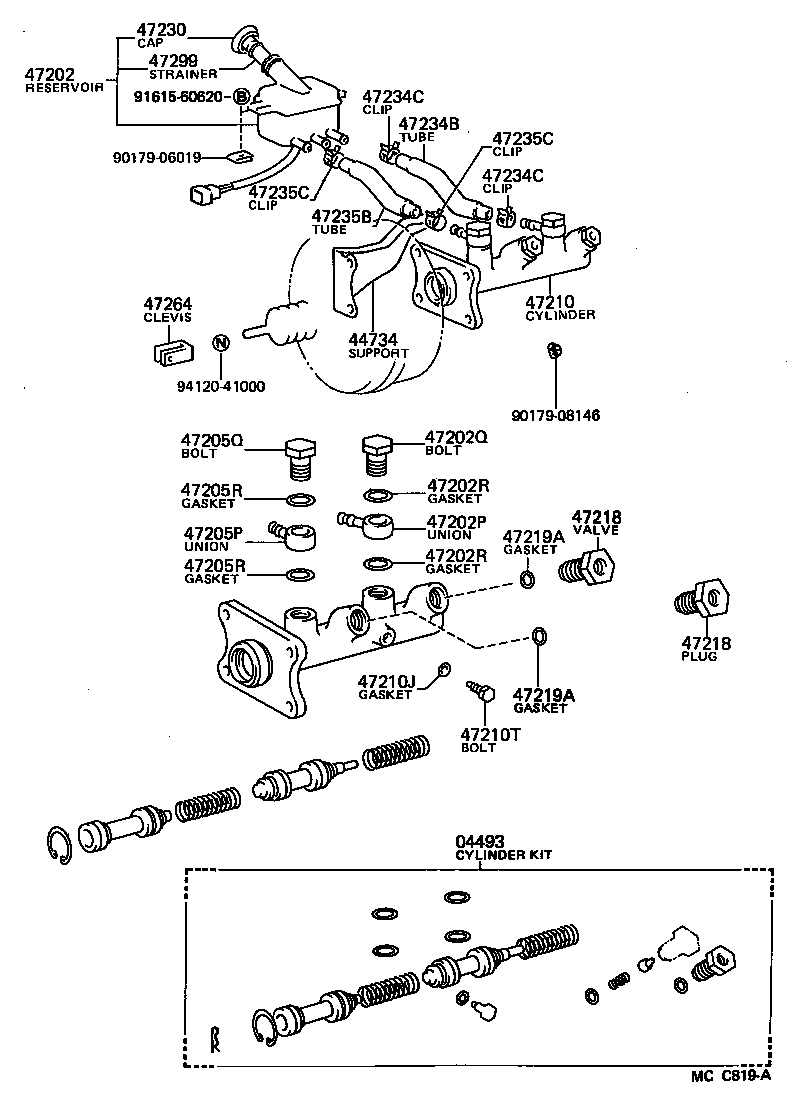

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-26120 |
LH80,YH80 |
1 | ||
| 44734 - BRACKET, BOOSTER SUPPORT OR ROD SUPPORT | ||||
| 55175-95A03 |
LH80,YH80 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36040 |
LH80,YH80..MTM |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-13137 |
LH80,YH80 |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
LH80,YH80 |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LH80,YH80 |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LH80,YH80 |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-13137 |
LH80,YH80 |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16002 |
LH80,YH80 |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
LH80,YH80 |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
LH80,YH80 |
2 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-26300 |
LH80,YH80 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LH80,YH80 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LH80,YH80 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26040 |
LH80,YH80 |
2 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26040 |
LH80,YH80 |
2 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
LH80,YH80 |
2 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
LH80,YH80 |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
LH80,YH80 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-26100 |
LH80,YH80 |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16002 |
LH80,YH80 |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16002 |
LH80,YH80 |
2 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-26100 |
LH80,YH80 |
1 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16002 |
LH80,YH80 |
2 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16002 |
LH80,YH80 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LH80,YH80 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
LH80,YH80 |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 91615-60620 | ||||
| 94120-41000 | ||||
