LH80-MDLT3 (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH80,90,YH81

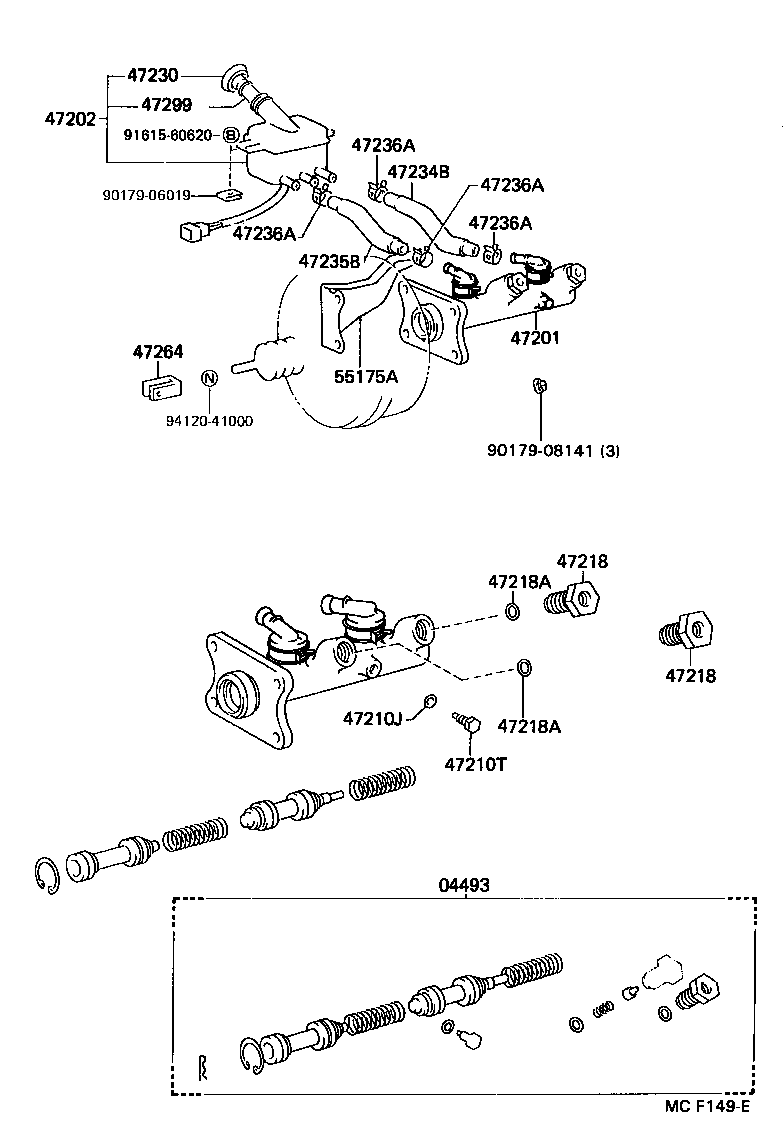

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47218 47218 47218A 47218A 47230 47234B 47235B 47236A 47236A 47236A 47236A 47264 47299 55175A 9017906019 9017908141 9161560620 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-26150

LH80,90,YH81

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-26470

LH80,90,YH81

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-36040

LH8#,9#,YH81..5F

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

LH8#,9#,YH81

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

LH8#,9#,YH81

 1
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-26050

LH80,90,YH81

 2
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-26050

LH80,90,YH81

 2
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-05014

LH80,90,YH81

 2
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-05014

LH80,90,YH81

 2
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-28010

LH8#,9#,YH81

 1
47234B - TUBE, RESERVOIR, NO.1
47234-26100

LH80,90,YH81

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-26100

LH80,90,YH81

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

LH8#,9#,YH81

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

LH8#,9#,YH81

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

LH8#,9#,YH81

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

LH8#,9#,YH81

 4
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

LH8#,9#,YH81

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-26020

LH8#,9#,YH81

 1
55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55175-95A03

LH80,90,YH81

 1
Common parts
90179-06019
90179-08141
91615-60620
94120-41000
