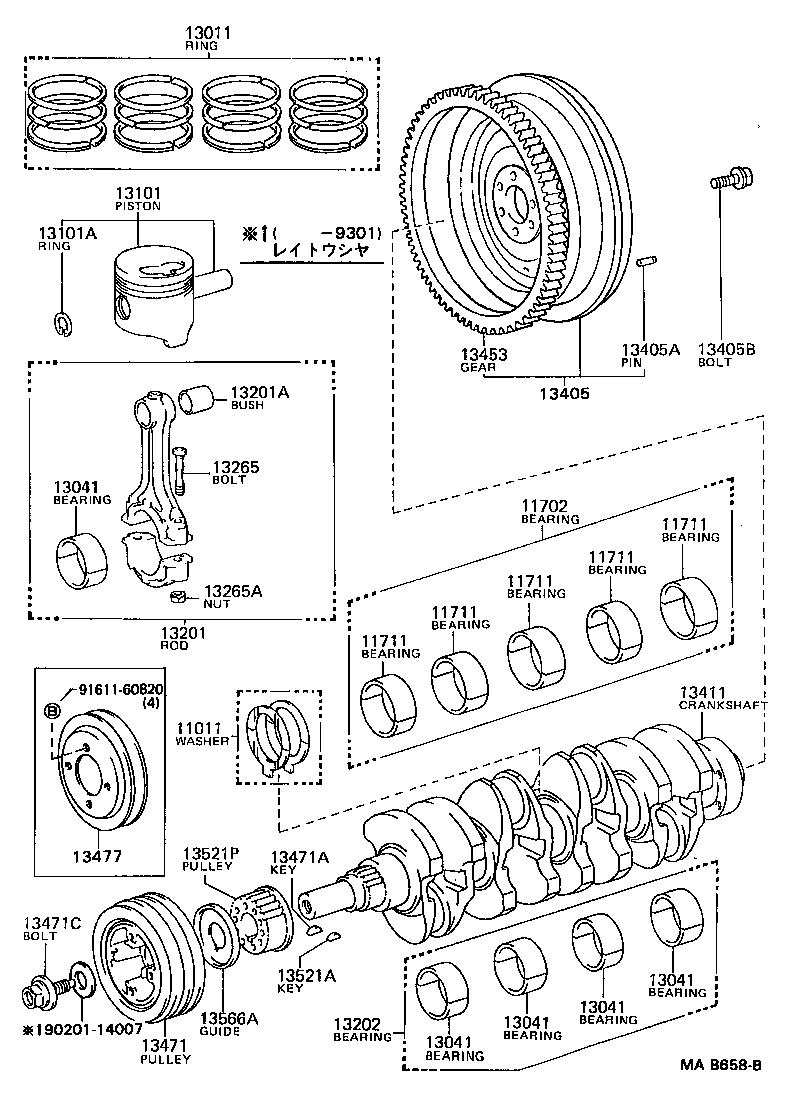

LH80-MDLT3 (1987)
Toyota Hiace Truck
(8708-8808)2L ; (8808-8910)2L..LH85
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-54020 |
2L..LH8#,9# STD |
1 | ||
| 11012-54020 |
2L..LH8#,9# O/S 0.125 |
1 | ||
| 11011-54010 |
2L..LH8# STD |
1 | ||
| 11013-54010 |
2L..LH8# O/S 0.250 |
1 | ||
| 11013-54020 |
2L..LH8#,9# O/S 0.250 |
1 | ||
| 11012-54010 |
2L..LH8# O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54061 |
2L..LH8#,9# U/S 0.25 |
1 | ||
| 11705-54060 |
2L..LH8# U/S 0.50 |
1 | ||
| 11705-54061 |
2L..LH8#,9# U/S 0.50 |
1 | ||
| 11704-54060 |
2L..LH8# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-54100 |
2L..LH80 O/S 0.75 |
1 | ||
| 13011-54061 |
2L..LH8# STD |
1 | ||
| 13011-54062 |
2L..LH8# STD |
1 | ||
| 13014-54062 |
2L..LH8# O/S 0.75 |
1 | ||
| 13013-54062 |
2L..LH8# O/S 0.50 |
1 | ||
| 13013-54061 |
2L..LH80 O/S 0.50 |
1 | ||
| 13015-54062 |
2L..LH8# O/S 1.00 |
1 | ||
| 13011-54100 |
2L..LH8#,9# STD |
1 | ||
| 13011-54100 |
2L..LH80 STD |
1 | ||
| 13014-54100 |
2L..LH8#,9# O/S 0.75 |
1 | ||
| 13013-54100 |
2L..LH80 O/S 0.50 |
1 | ||
| 13013-54100 |
2L..LH8#,9# O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-54060 |
2L..LH8# STD |
4 | ||
| 13101-54060 |
2L..LH8# STD |
4 | ||
| 13101-5406002 |
2L..LH8# STD,MARK 2 |
4 | ||
| 13103-54060 |
2L..LH8# O/S 0.50 |
4 | ||
| 13105-54060 |
2L..LH8# O/S 1.00 |
4 | ||
| 13104-54070 |
2L..LH80 O/S 0.75 |
4 | ||
| 13101-5406003 |
2L..LH8# STD,MARK 3 |
4 | ||
| 13101-5406001 |
2L..LH8# STD,MARK 1 |
4 | ||
| 13101-5407001 |
2L..LH80 STD,MARK 1 |
4 | ||
| 13101-5407003 |
2L..LH80 STD,MARK 3 |
4 | ||
| 13104-54060 |
2L..LH8# O/S 0.75 |
4 | ||
| 13101-5407002 |
2L..LH80 STD,MARK 2 |
4 | ||
| 13103-54070 |
2L..LH80 O/S 0.50 |
4 | ||
| 13105-54070 |
2L..LH80 O/S 1.00 |
4 | ||
| 13104-54070 |
2L..LH8#,9# O/S 0.75 |
4 | ||
| 13103-54070 |
2L..LH8#,9# O/S 0.50 |
4 | ||
| 13101-5407002 |
2L..LH8#,9# STD,MARK 2 |
4 | ||
| 13101-5407001 |
2L..LH8#,9# STD,MARK 1 |
4 | ||
| 13101-5407003 |
2L..LH8#,9# STD,MARK 3 |
4 | ||
| 13105-54070 |
2L..LH8#,9# O/S 1.00 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
2L..LH8#,9# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59016 |
2L..LH8# |
4 | ||
| 13201-59095 |
2L..LH8#,9# |
4 | ||
| 13201-59017 |
2L..LH8# |
4 | ||
| 13201-59095 |
2L..LH80 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73083 |
2L..LH8# |
4 | ||
| 90999-73114 |
2L..LH80 |
4 | ||
| 90999-73117 |
2L..LH8# |
4 | ||
| 90999-73114 |
2L..LH8#,9# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54024 |
2L..LH8#,9# U/S 0.25 |
1 | ||
| 13204-54013 |
2L..LH8# U/S 0.25 |
1 | ||
| 13205-54024 |
2L..LH8#,9# U/S 0.50 |
1 | ||
| 13205-54013 |
2L..LH8# U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-54011 |
2L..LH8# |
8 | ||
| 13265-54020 |
2L..LH8#,9# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10005 |
2L..LH8# |
8 | ||
| 90179-10123 |
2L..LH8#,9# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-54060 |
2L..LH8#,9#..5F |
1 | ||
| 13405-59035 |
2L..LH80..5F |
1 | ||
| 13405-54011 |
2L..LH80..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2L..LH8#,9#..5F 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12109 |
2L..LH8#..5F |
6 | ||
| 90105-12109 |
2L..LH8#,9#..5F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54030 |
2L..LH8# |
1 | ||
| 13401-54040 |
2L..LH8#,9# |
1 | ||
| 13401-54031 |
2L..LH8# |
1 | ||
| 13401-54040 |
2L..LH80 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-54010 |
2L..LH8#,9#..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54020 |
2L..LH8# |
1 | ||
| 13408-54070 |
2L..LH8#,9# ｱﾘ(ｵｲﾙﾚﾍﾞﾙｾﾝｻ) |
1 | ||
| 13408-54070 |
2L..LH80 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
2L..LH80..IV;2L..LH85..T3..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 95161-20622 |
2L..LH8#,9# |
1 | ||
| 95161-30622 |
2L..LH8#,9# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14002 |
2L..LH80..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 90901-19024 |
2L..LH80..IV;2L..LH85..T3..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 90119-14005 |
2L..LH8# |
1 | ||
| 90119-14031 |
2L..LH8#,9# |
1 | ||
| 90105-14002 |
2L..LH80..IV;2L..LH85..T3..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 90901-19028 |
2L..LH8#,9# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
2L..LH80..IV;2L..LH85..T3..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 95161-20622 |
2L..LH8#,9# |
1 | ||
| 95161-30622 |
2L..LH8#,9# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54030 |
2L..LH8#,9# |
1 | ||
| 13521-54020 |
2L..LH8# |
1 | ||
| 13521-54030 |
2L..LH80 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54040 |
2L..LH8#,9# |
1 | ||
| 13566-54010 |
2L..LH8# |
1 | ||
(8808- )2L..LH80 ; (8910- )2L..LH85,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-54020 |
2L..LH8#,9# STD |
1 | ||
| 11012-54020 |
2L..LH8#,9# O/S 0.125 |
1 | ||
| 11011-54010 |
2L..LH8# STD |
1 | ||
| 11013-54010 |
2L..LH8# O/S 0.250 |
1 | ||
| 11013-54020 |
2L..LH8#,9# O/S 0.250 |
1 | ||
| 11012-54010 |
2L..LH8# O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54061 |
2L..LH8#,9# U/S 0.25 |
1 | ||
| 11705-54060 |
2L..LH8# U/S 0.50 |
1 | ||
| 11705-54061 |
2L..LH8#,9# U/S 0.50 |
1 | ||
| 11704-54060 |
2L..LH8# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406103 |
2L..LH8#,9# MARK 3 |
5 | ||
| 11701-5406003 |
2L..LH8# MARK 3 |
5 | ||
| 11701-5406001 |
2L..LH8# MARK 1 |
5 | ||
| 11701-5406102 |
2L..LH8#,9# MARK 2 |
5 | ||
| 11701-5406002 |
2L..LH8# MARK 2 |
5 | ||
| 11701-5406101 |
2L..LH8#,9# MARK 1 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-54100 |
2L..LH80 O/S 0.75 |
1 | ||
| 13011-54061 |
2L..LH8# STD |
1 | ||
| 13011-54062 |
2L..LH8# STD |
1 | ||
| 13014-54062 |
2L..LH8# O/S 0.75 |
1 | ||
| 13013-54062 |
2L..LH8# O/S 0.50 |
1 | ||
| 13013-54061 |
2L..LH80 O/S 0.50 |
1 | ||
| 13015-54062 |
2L..LH8# O/S 1.00 |
1 | ||
| 13011-54100 |
2L..LH8#,9# STD |
1 | ||
| 13011-54100 |
2L..LH80 STD |
1 | ||
| 13014-54100 |
2L..LH8#,9# O/S 0.75 |
1 | ||
| 13013-54100 |
2L..LH80 O/S 0.50 |
1 | ||
| 13013-54100 |
2L..LH8#,9# O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401301 |
2L..LH8# MARK 1 |
4 | ||
| 13041-5401302 |
2L..LH8# MARK 2 |
4 | ||
| 13041-5401303 |
2L..LH8# MARK 3 |
4 | ||
| 13041-5402402 |
2L..LH8#,9# MARK 2 |
4 | ||
| 13041-5402403 |
2L..LH8#,9# MARK 3 |
4 | ||
| 13041-54024 |
2L..LH8# |
4 | ||
| 13041-5402401 |
2L..LH8#,9# MARK 1 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-54060 |
2L..LH8# STD |
4 | ||
| 13101-54060 |
2L..LH8# STD |
4 | ||
| 13101-5406002 |
2L..LH8# STD,MARK 2 |
4 | ||
| 13103-54060 |
2L..LH8# O/S 0.50 |
4 | ||
| 13105-54060 |
2L..LH8# O/S 1.00 |
4 | ||
| 13104-54070 |
2L..LH80 O/S 0.75 |
4 | ||
| 13101-5406003 |
2L..LH8# STD,MARK 3 |
4 | ||
| 13101-5406001 |
2L..LH8# STD,MARK 1 |
4 | ||
| 13101-5407001 |
2L..LH80 STD,MARK 1 |
4 | ||
| 13101-5407003 |
2L..LH80 STD,MARK 3 |
4 | ||
| 13104-54060 |
2L..LH8# O/S 0.75 |
4 | ||
| 13101-5407002 |
2L..LH80 STD,MARK 2 |
4 | ||
| 13103-54070 |
2L..LH80 O/S 0.50 |
4 | ||
| 13105-54070 |
2L..LH80 O/S 1.00 |
4 | ||
| 13104-54070 |
2L..LH8#,9# O/S 0.75 |
4 | ||
| 13103-54070 |
2L..LH8#,9# O/S 0.50 |
4 | ||
| 13101-5407002 |
2L..LH8#,9# STD,MARK 2 |
4 | ||
| 13101-5407001 |
2L..LH8#,9# STD,MARK 1 |
4 | ||
| 13101-5407003 |
2L..LH8#,9# STD,MARK 3 |
4 | ||
| 13105-54070 |
2L..LH8#,9# O/S 1.00 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
2L..LH8#,9# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59016 |
2L..LH8# |
4 | ||
| 13201-59095 |
2L..LH8#,9# |
4 | ||
| 13201-59017 |
2L..LH8# |
4 | ||
| 13201-59095 |
2L..LH80 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73083 |
2L..LH8# |
4 | ||
| 90999-73114 |
2L..LH80 |
4 | ||
| 90999-73117 |
2L..LH8# |
4 | ||
| 90999-73114 |
2L..LH8#,9# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54024 |
2L..LH8#,9# U/S 0.25 |
1 | ||
| 13204-54013 |
2L..LH8# U/S 0.25 |
1 | ||
| 13205-54024 |
2L..LH8#,9# U/S 0.50 |
1 | ||
| 13205-54013 |
2L..LH8# U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-54011 |
2L..LH8# |
8 | ||
| 13265-54020 |
2L..LH8#,9# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10005 |
2L..LH8# |
8 | ||
| 90179-10123 |
2L..LH8#,9# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-54060 |
2L..LH8#,9#..5F |
1 | ||
| 13405-59035 |
2L..LH80..5F |
1 | ||
| 13405-54011 |
2L..LH80..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2L..LH8#,9#..5F 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12109 |
2L..LH8#..5F |
6 | ||
| 90105-12109 |
2L..LH8#,9#..5F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54030 |
2L..LH8# |
1 | ||
| 13401-54040 |
2L..LH8#,9# |
1 | ||
| 13401-54031 |
2L..LH8# |
1 | ||
| 13401-54040 |
2L..LH80 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-54010 |
2L..LH8#,9#..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54020 |
2L..LH8# |
1 | ||
| 13408-54070 |
2L..LH8#,9# ｱﾘ(ｵｲﾙﾚﾍﾞﾙｾﾝｻ) |
1 | ||
| 13408-54070 |
2L..LH80 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
2L..LH80..IV;2L..LH85..T3..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 95161-20622 |
2L..LH8#,9# |
1 | ||
| 95161-30622 |
2L..LH8#,9# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14002 |
2L..LH80..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 90901-19024 |
2L..LH80..IV;2L..LH85..T3..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 90119-14005 |
2L..LH8# |
1 | ||
| 90119-14031 |
2L..LH8#,9# |
1 | ||
| 90105-14002 |
2L..LH80..IV;2L..LH85..T3..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 90901-19028 |
2L..LH8#,9# |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-35030 |
2L..LH8#,9# |
1 | ||
| 88451-35030 |
2L..LH80,9#;2L..LH85..T2,TW;2L..LH85..T3..CBU |
1 | ||
| 88451-35030 |
2L..LH80 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
2L..LH80..IV;2L..LH85..T3..IV ﾚｲﾄｳｼﾔ |
1 | ||
| 95161-20622 |
2L..LH8#,9# |
1 | ||
| 95161-30622 |
2L..LH8#,9# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54030 |
2L..LH8#,9# |
1 | ||
| 13521-54020 |
2L..LH8# |
1 | ||
| 13521-54030 |
2L..LH80 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54040 |
2L..LH8#,9# |
1 | ||
| 13566-54010 |
2L..LH8# |
1 | ||
| Common parts | ||||
| 90201-14007 | ||||
| 91611-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
