LH80-MDLT3 (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

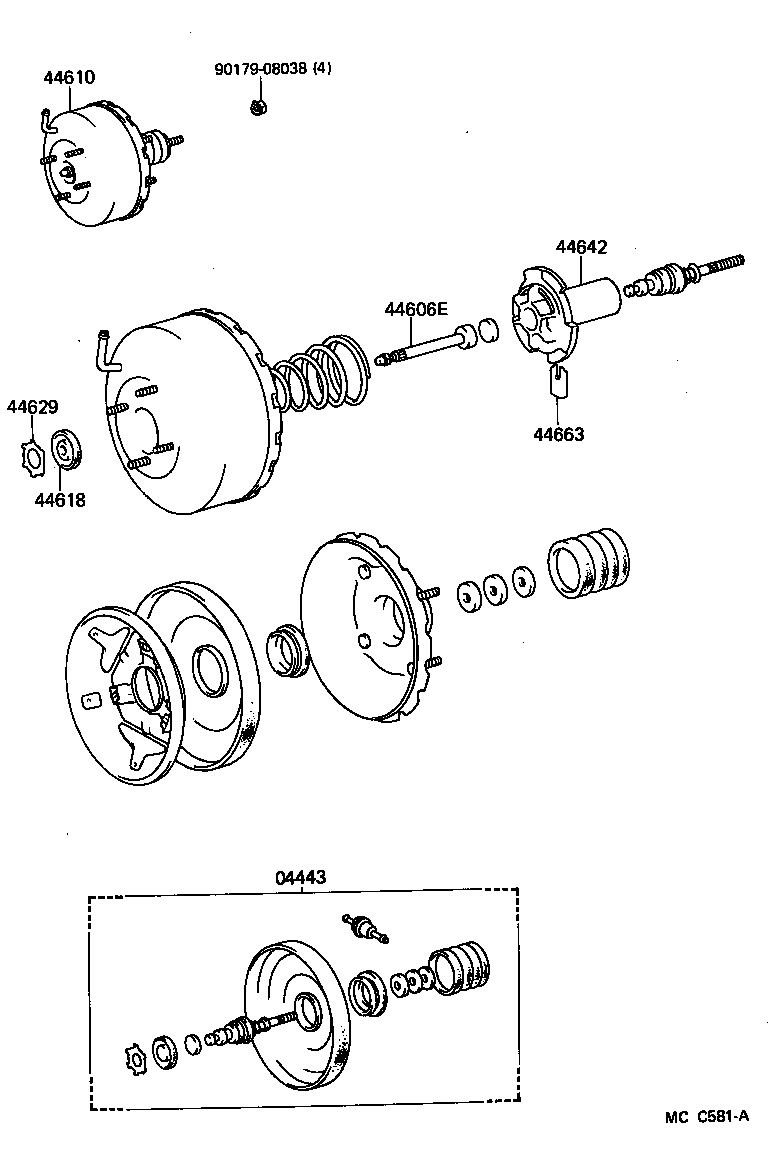

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 04443 44606E 44610 44618 44629 44642 44663 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26270

LH80

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

LH80,YH80

 1
44610 - BOOSTER ASSY, BRAKE
44610-26280

LH80,YH80

9INCH

 1
44618 - SEAL, BOOSTER BODY
44621-28120

LH80,YH80

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

LH80,YH80

 1
44642 - PISTON, BRAKE BOOSTER
44642-32010

LH80,YH80

 1
44663 - KEY, VALVE STOPPER
44635-28120

LH80,YH80

 1
Common parts
90179-08038

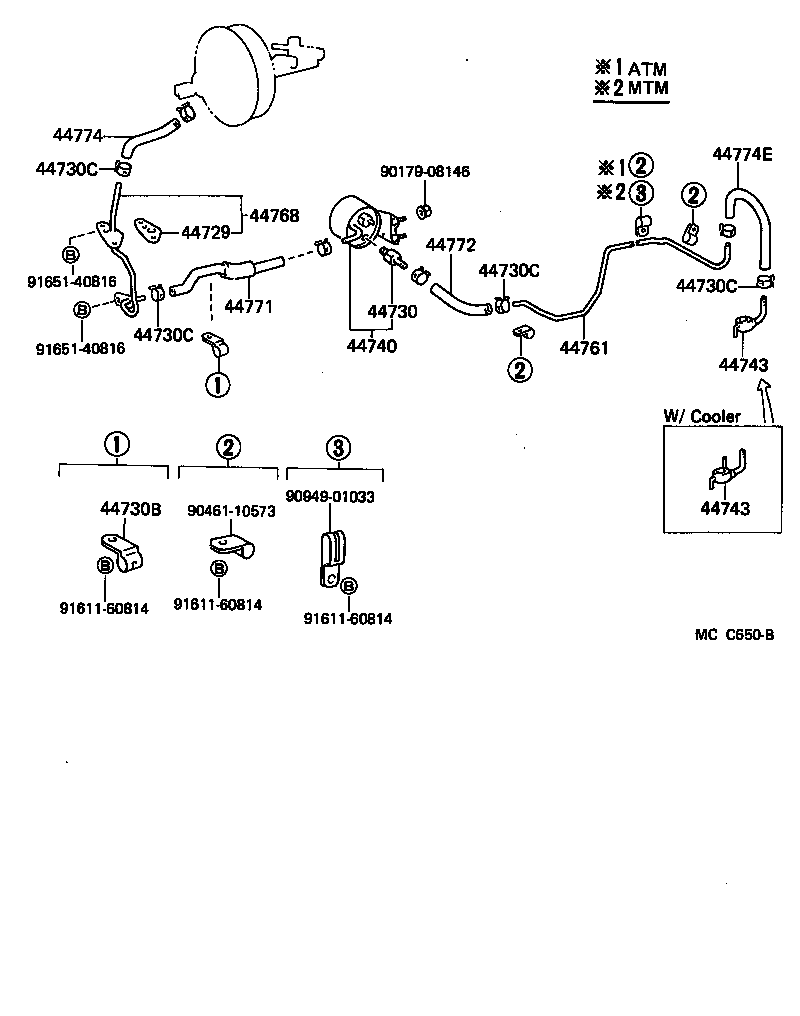

ILLUST NO. 2 OF 2(8508- )LH80

Click highlighted areas on diagram

diagram 44729 44730 44730B 44730C 44730C 44730C 44730C 44740 44743 44743 44761 44768 44771 44772 44774 44774E 9017908146 9046110573 9094901033 9161160814 9161160814 9161160814 9165140816 9165140816
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

LH80,YH80

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

LH80

 1
44730B - CLAMP, VACUUM HOSE
90461-08109

LH80,YH80

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH80,YH80

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH80,YH80

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH80,YH80

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH80,YH80

 8
44740 - RESERVOIR ASSY, VACUUM
44740-26070

LH80

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09071

LH80

 1
90405-09070

LH80

W/COOLER

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09071

LH80

 1
90405-09070

LH80

W/COOLER

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25060

LH80

 1
44768 - TUBE, BOOSTER VACUUM
44768-26010

LH80,YH80

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26070

LH80

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26060

LH80

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26100

LH80,YH80

 1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-26110

LH80

 1
Common parts
90179-08146
90461-10573
90949-01033
91611-60814
91651-40816
