LH80-MDLT (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

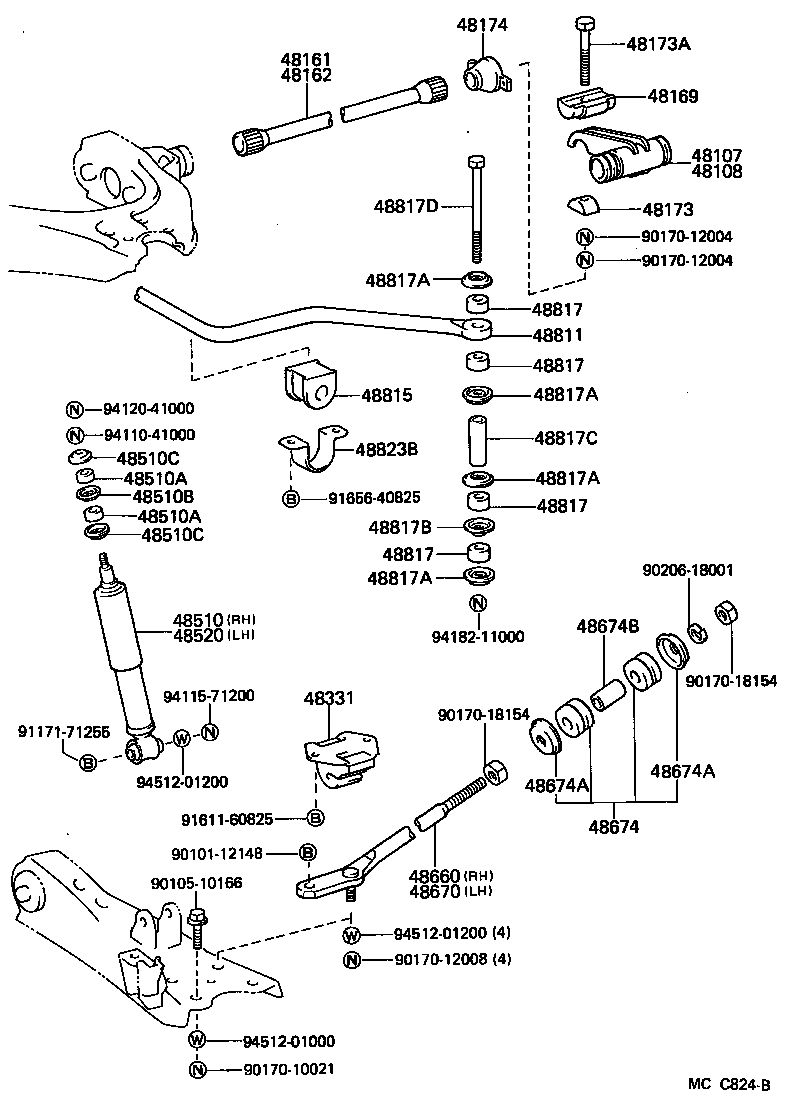

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48331 48510 48510A 48510A 48510B 48510C 48510C 48520 48660 48670 48674 48674A 48674A 48674B 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817C 48817D 48823B 9010112148 9010510166 9017010021 9017012004 9017012004 9017012008 9017018154 9017018154 9020618001 9117171255 9161160825 9165640825 9411041000 9411571200 9412041000 9418211000 9451201000 9451201200 9451201200
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-26020

LH80,YH80

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-26020

LH80,YH80

 1
48161 - SPRING, TORSION BAR, RH
48161-26060

LH80,YH80

 1
48162 - SPRING, TORSION BAR, LH
48162-26060

LH80,YH80

 1
48169 - SWIVEL, ANCHOR ARM
48169-26020

LH80,YH80

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

LH80,YH80

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12138

LH80,YH80

 2
48174 - COVER, TORSION BAR DUST
48174-26010

LH80,YH80

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-26030

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-26090

LH80,YH80

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LH80,YH80

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LH80,YH80

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

LH80,YH80

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LH80,YH80

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LH80,YH80

 4
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-26090

LH80,YH80

 1
48660 - BAR ASSY, STRUT, RH
48660-26011

LH80,YH80

 1
48670 - BAR ASSY, STRUT, LH
48670-26011

LH80,YH80

 1
48674 - CUSHION, STRUT BAR
48674-29065

LH80,YH80

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02062

LH80,YH80

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02062

LH80,YH80

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18005

LH80,YH80

 2
Common parts
90101-12148
90105-10166
90170-10021
90170-12004
90170-12008
90170-18154
90206-18001
91171-71255
91611-60825
91656-40825
94110-41000
94115-71200
94120-41000
94182-11000
94512-01000
94512-01200
