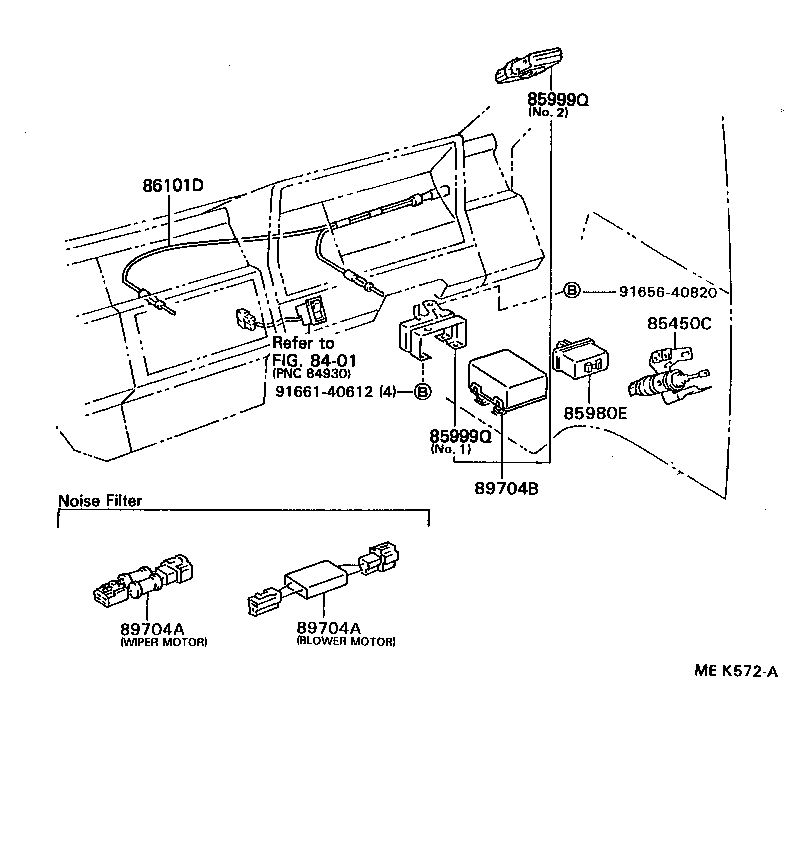

Toyota Hiace truck LH80 WIRELESS DOOR LOCK

Part #	Description	Period	Qty
85450C - SOLENOID ASSY, DOOR CONTROL
85450-95A02	LH80..T1,T2,T3	08/1987 - 08/1990	1
85450-95A02	LH80,90	08/1990 - 09/1993	1
85450-95A02	LH8#,9#,YH81	09/1993 - 05/1995	1
85980E - RELAY ASSY, DOOR CONTROL
85980-26010	LH80..T1,T2,T3	08/1987 - 08/1990	1
85980-90D00	LH8#,9#,YH81	09/1993 - 05/1995	1
85980-90D00	LH80,90	08/1990 - 09/1993	1
85999Q - BRACKET, DOOR CONTROL TRANSMITTER
85999-36050	LH80..T1,T2,T3 NO.2,TOKAIRIKA	08/1987 - 08/1990	1
85999-36030	LH80..T1,T2,T3 NO.1,TOKAIRIKA	08/1987 - 08/1990	1
85999-36040	LH80..T1,T2,T3 NO.2,NIPPONDENSO	08/1987 - 08/1990	1
85999-36010	LH80..T1,T2,T3 NO.1,NIPPONDENSO	08/1987 - 08/1990	1
85999-36040	LH8#,9#,YH81 NO.2,NIPPONDENSO	09/1993 - 05/1995	1
85999-36010	LH8#,9#,YH81 NO.1,NIPPONDENSO	09/1993 - 05/1995	1
85999-36010	LH80,90 NO.1,NIPPONDENSO	08/1990 - 09/1993	1
85999-36030	LH8#,9#,YH81 NO.1,TOKAIRIKA	09/1993 - 05/1995	1
85999-36040	LH80,90 NO.2,NIPPONDENSO	08/1990 - 09/1993	1
85999-36030	LH80,90 NO.1,TOKAIRIKA	08/1990 - 09/1993	1
85999-36050	LH80,90 NO.2,TOKAIRIKA	08/1990 - 09/1993	1
85999-36050	LH8#,9#,YH81 NO.2,TOKAIRIKA	09/1993 - 05/1995	1
85999Q - BRACKET, DOOR CONTROL TRANSMITTER
85999-36050	LH80..T1,T2,T3 NO.2,TOKAIRIKA	08/1987 - 08/1990	1
85999-36030	LH80..T1,T2,T3 NO.1,TOKAIRIKA	08/1987 - 08/1990	1
85999-36040	LH80..T1,T2,T3 NO.2,NIPPONDENSO	08/1987 - 08/1990	1
85999-36010	LH80..T1,T2,T3 NO.1,NIPPONDENSO	08/1987 - 08/1990	1
85999-36040	LH8#,9#,YH81 NO.2,NIPPONDENSO	09/1993 - 05/1995	1
85999-36010	LH8#,9#,YH81 NO.1,NIPPONDENSO	09/1993 - 05/1995	1
85999-36010	LH80,90 NO.1,NIPPONDENSO	08/1990 - 09/1993	1
85999-36030	LH8#,9#,YH81 NO.1,TOKAIRIKA	09/1993 - 05/1995	1
85999-36040	LH80,90 NO.2,NIPPONDENSO	08/1990 - 09/1993	1
85999-36030	LH80,90 NO.1,TOKAIRIKA	08/1990 - 09/1993	1
85999-36050	LH80,90 NO.2,TOKAIRIKA	08/1990 - 09/1993	1
85999-36050	LH8#,9#,YH81 NO.2,TOKAIRIKA	09/1993 - 05/1995	1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-36011	LH80,90	09/1991 - 09/1993	1
86101-36010	LH80..T1,T2,T3	08/1987 - 08/1990	1
86101-36010	LH80	08/1990 - 09/1991	1
86101-36011	LH8#,9#,YH81	09/1993 - 05/1995	1
89704A - FILTER, NOISE(FOR WIRELESS DOOR LOCK)
90980-05049	LH80,90 WIPER MOTOR	08/1990 - 09/1993	1
90980-05107	LH80..T1,T2,T3 BLPWER MOTOR	08/1987 - 08/1990	1
90980-05049	LH8#,9#,YH81 WIPER MOTOR	09/1993 - 05/1995	1
90980-05107	LH80,90 BLPWER MOTOR	08/1990 - 09/1993	1
90980-05107	LH8#,9#,YH81 BLPWER MOTOR	09/1993 - 05/1995	1
90980-05049	LH80..T1,T2,T3 WIPER MOTOR	08/1987 - 08/1990	1
89704A - FILTER, NOISE(FOR WIRELESS DOOR LOCK)
90980-05049	LH80,90 WIPER MOTOR	08/1990 - 09/1993	1
90980-05107	LH80..T1,T2,T3 BLPWER MOTOR	08/1987 - 08/1990	1
90980-05049	LH8#,9#,YH81 WIPER MOTOR	09/1993 - 05/1995	1
90980-05107	LH80,90 BLPWER MOTOR	08/1990 - 09/1993	1
90980-05107	LH8#,9#,YH81 BLPWER MOTOR	09/1993 - 05/1995	1
90980-05049	LH80..T1,T2,T3 WIPER MOTOR	08/1987 - 08/1990	1
89704B - CONTROL ASSY, WIRELESS DOOR LOCK
89704-26011	LH80..T1,T2,T3	04/1989 - 08/1990	1
89704-26010	LH80..T1,T2,T3	08/1987 - 04/1989	1
89704-26011	LH80,90	08/1990 - 09/1993	1
89704-26011	LH8#,9#,YH81	09/1993 - 05/1995	1
Common parts
91656-40820
91661-40612
Linked diagrams
8401

LH80-MDLT (1987)

(8708- )
