LH80-MDL (1987)
Toyota Hiace Truck
Production
Aug 1987
-
May 1995
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )2L

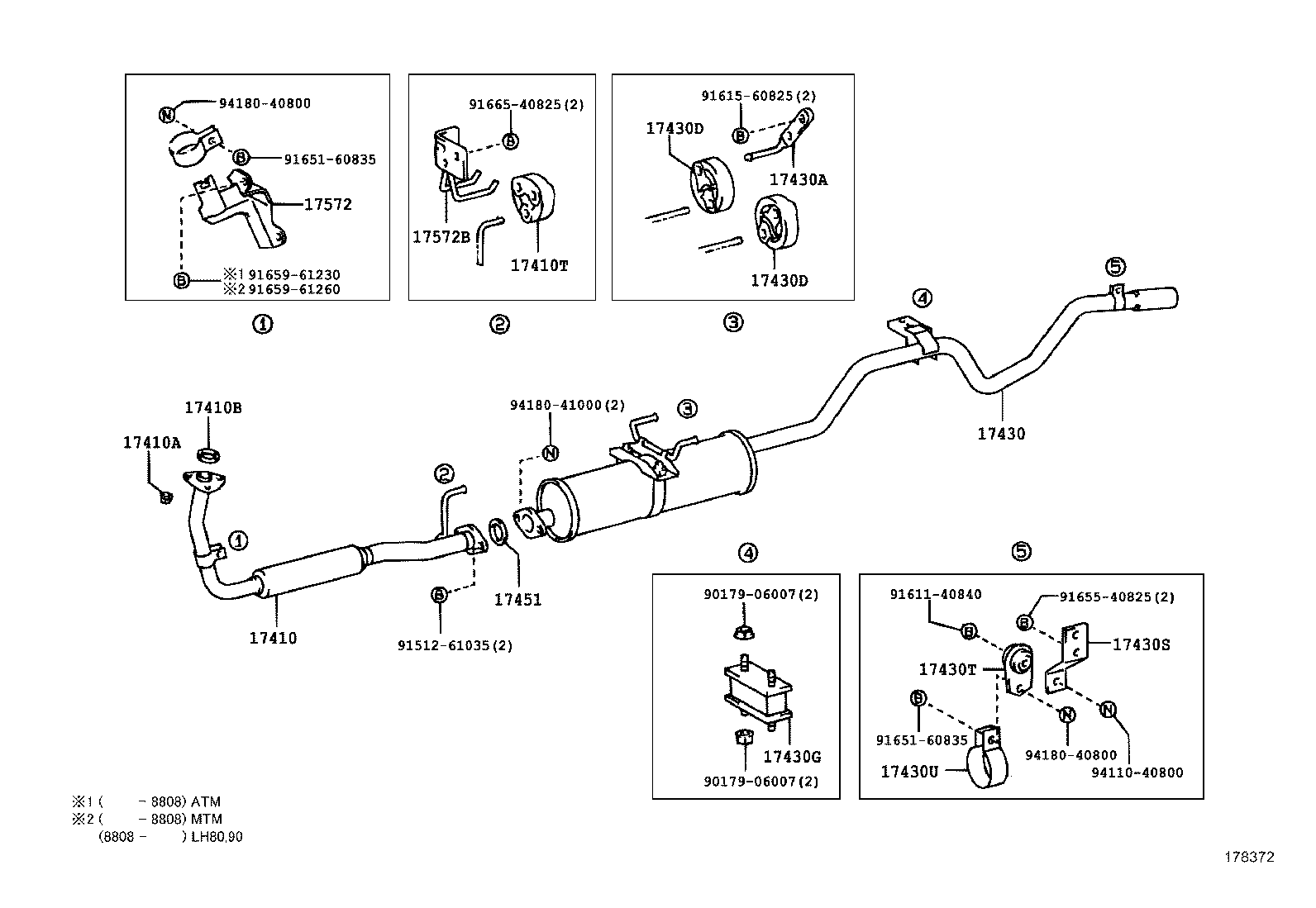

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-54591 |
2L..LH80 |
1 | ||
| 17410-54592 |
2L..LH80 |
1 | ||
| 17410-5B060 |
2L..LH80,90 |
1 | ||
| 17410-54593 |
2L..LH80 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2L,2Y..LH8#,9#,YH81 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06042 |
2L..LH80 |
1 | ||
| 90917-06004 |
2L..LH8# |
1 | ||
| 90917-06066 |
2L..LH8#,9# |
1 | ||
| 90917-06042 |
2L..LH8#,9# |
1 | ||
| 17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER) | ||||
| 17565-54030 |
2L..LH8#,9# |
1 | ||
| 17565-13030 |
2L..LH8# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-54811 |
2L..LH80..ST |
1 | ||
| 17430-54812 |
2L..LH80..ST |
1 | ||
| 17430-54813 |
2L..LH80..ST |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17575-71050 |
2L,2Y..LH8#,9#,YH81 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-63030 |
2L..LH8#,9# |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-63030 |
2L..LH8#,9# |
2 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61010 |
2L,2Y..LH8#,9#,YH81 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-54040 |
2L,2Y..LH8#,9#,YH81 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-08009 |
2L,2Y..LH8#,9#,YH81 |
1 | ||
| 17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-23387 |
2L..LH8#,9# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2L..LH8# |
1 | ||
| 90917-06047 |
2L..LH80 |
1 | ||
| 90917-06045 |
2L..LH8#,9# |
1 | ||
| 90917-06047 |
2L..LH8# |
1 | ||
| 90917-06045 |
2L..LH80 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-54141 |
2L..LH8#..5F |
1 | ||
| 17571-54270 |
2L..LH8#,9# ｱﾘ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 17571-54270 |
2L..LH80 ﾅｼ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ) |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-54150 |
2L..LH80 |
1 | ||
| 17572-54200 |
2L..LH80,90 |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 91512-61035 | ||||
| 91611-40840 | ||||
| 91615-60825 | ||||
| 91651-60835 | ||||
| 91655-40825 | ||||
| 91659-61230 | ||||
| 91659-61260 | ||||
| 91665-40825 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
