LH80-MDL (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

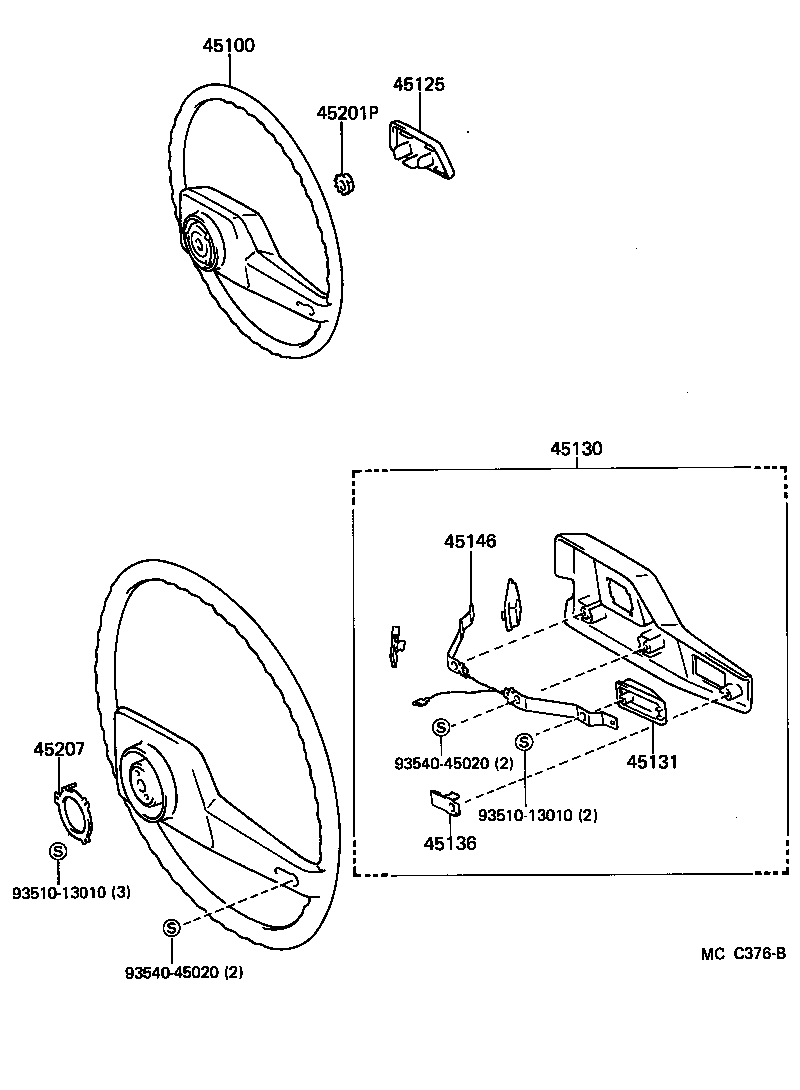

Click highlighted areas on diagram

diagram 45100 45125 45130 45131 45136 45146 45201P 45207 9351013010 9351013010 9354045020 9354045020
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2610004

LH80,YH80

BLUE,BLUE

 1
45125 - MARK, STEERING WHEEL PAD
45125-2606004

LH80,YH80

BLUE,BLUE

 1
45130 - BUTTON ASSY, HORN
45130-2608004

LH80,YH80

BLUE,BLUE

 1
45130-2608001

LH80,YH80

BLACK,BLACK

 1
45131 - BUTTON, HORN, NO.1
45131-26040

LH80,YH80

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

LH80,YH80

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-26030

LH80,YH80

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

LH80,YH80

 1
45207 - RING, HORN CONTACT
45176-30070

LH80,YH80

 1
Common parts
93510-13010
93540-45020

(8708-9109)

Click highlighted areas on diagram

diagram 45100 45125 45130 45131 45136 45146 45176 45201P 9351013010 9351013010 9351015014 9354045020
Part # Description Qty Price
Common parts
93510-13010
93510-15014
93540-45020

(8708-9109)T1..IV ; (8708-9109)LH80,YH81..T2,T3

Click highlighted areas on diagram

URETHANE

diagram 45100 45105 45105B 45130 45155A 45156A 45156B 45176 45184 45201P 9331514010 9331514010 9331514025 9351013010 9351013010
Part # Description Qty Price
Common parts
93315-14010
93315-14025
93510-13010
