LH80-MDGT (1991)
Toyota Hiace Truck
Production
Sep 1991
-
May 1995
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9109- )

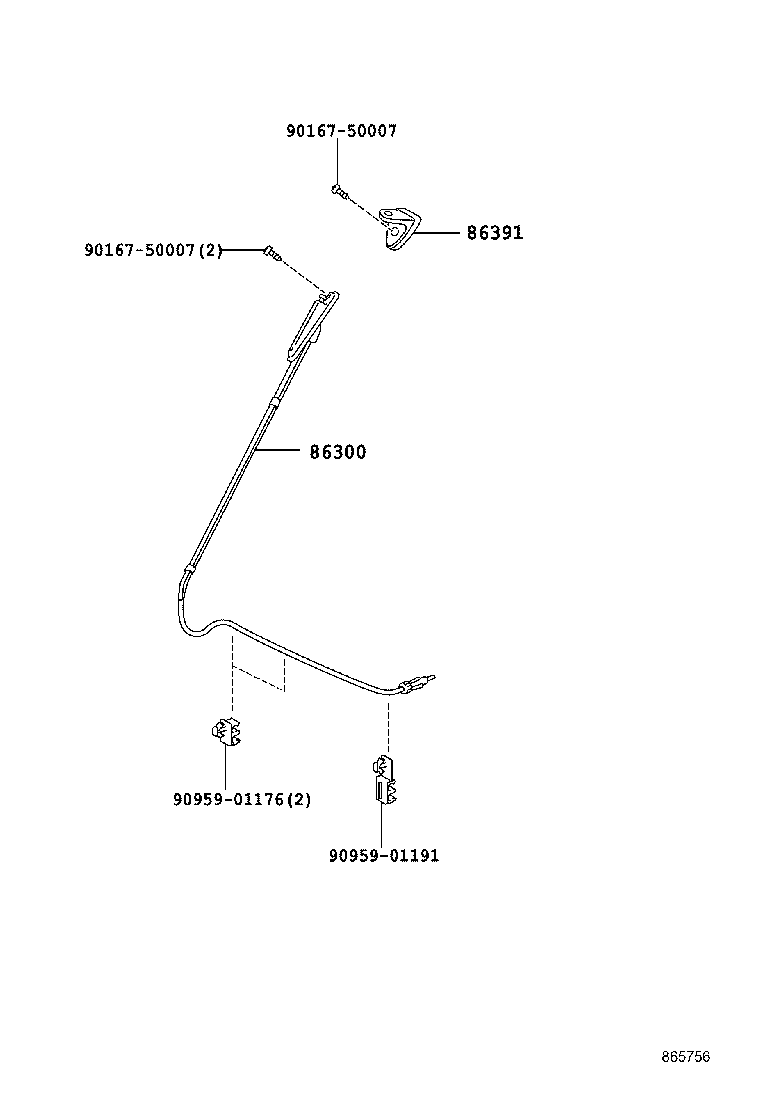

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-95404 |
LH80..T1,T2,T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 86300-95403 |
LH8#,YH81 |
1 | ||
| 86300-37030 |
LH85..T2,TW;LH80,9#,YH81;LH85..T3..IV;LH85..TB..T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 86300-37020 |
LH85..T2,TW;LH80,9#,YH81;LH85..T3..IV;LH85..TB..T3 |
1 | ||
| 86300-37030 |
LH80,90..T1,T2,T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-) |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-37020 |
LH8#,9#,YH81..T1,T2,T3 |
1 | ||
| 86391-37010 |
LH80,YH81..T1..IV;LH8#,9#,YH81..T2,T3 |
1 | ||
| 86391-95700 |
LH8#,YH81 |
1 | ||
| 86391-37020 |
LH80,YH81..T1..IV;LH8#,9#,YH81..T2,T3 |
1 | ||
| Common parts | ||||
| 90167-50007 | ||||
| 90959-01176 | ||||
| 90959-01191 | ||||
