LH80-MDGT (1985)
Toyota Hiace Truck
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

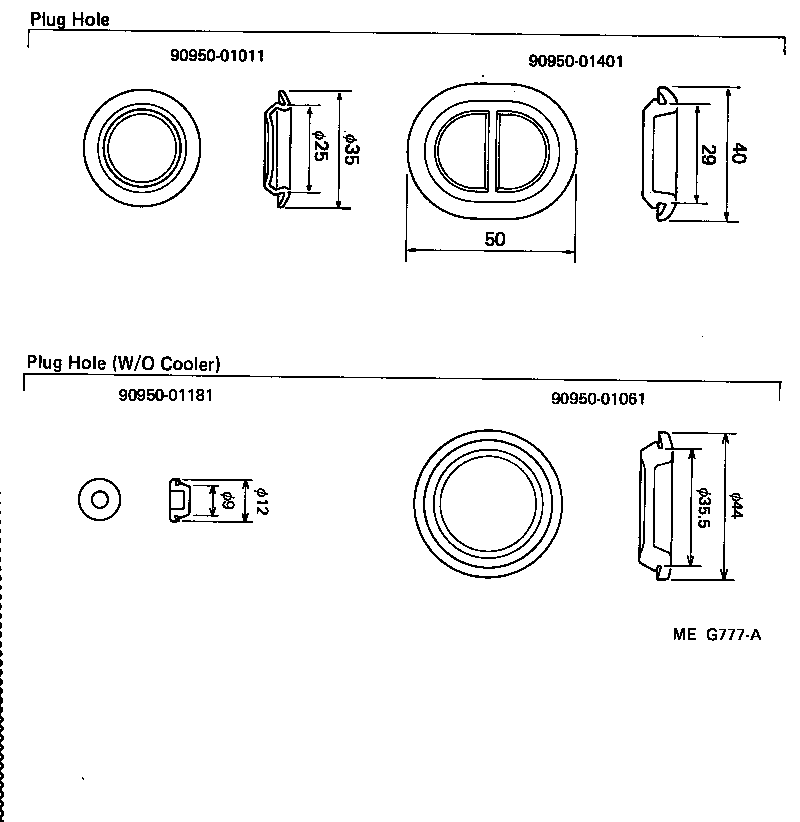

ILLUST NO. 2 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01011 | ||||
| 90950-01061 | ||||
| 90950-01181 | ||||
| 90950-01401 | ||||

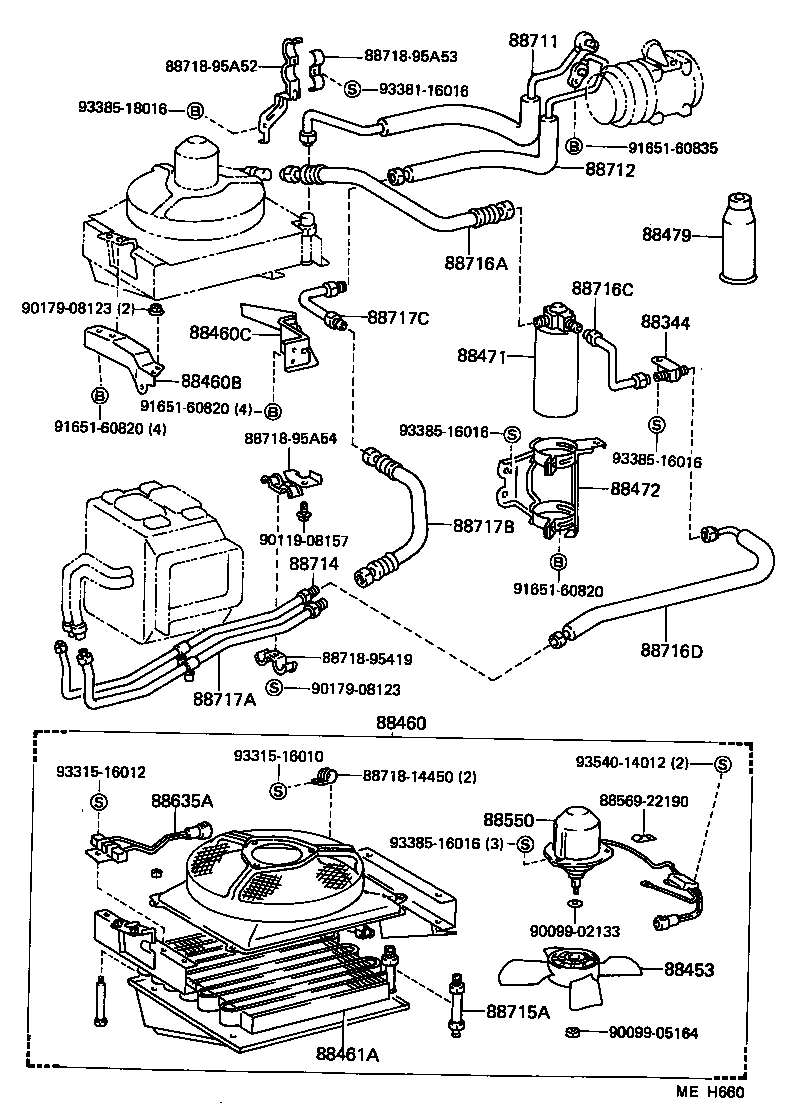

ILLUST NO. 1 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88481-87002 |
LH80,YH80 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
LH80,YH80 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A15 |
LH80,YH80 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95A58 |
LH80,YH80 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95A57 |
LH80,YH80 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95A04 |
LH80,YH80 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16010 |
LH80,YH80 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95A09 |
LH80,YH80 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LH80,YH80 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95406 |
LH80,YH80 |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 87138-95410 |
LH80,YH80 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95A22 |
LH80 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95A22 |
LH80 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88716-95A79 |
LH80,YH80 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95A03 |
LH80,YH80 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88721-95A05 |
LH80,YH80 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95A78 |
LH80,YH80 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88721-95A06 |
LH80,YH80 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95A40 |
LH80,YH80 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88712-95A23 |
LH80,YH80 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-95A54 |
LH80,YH80 |
1 | ||
| Common parts | ||||
| 88569-22190 | ||||
| 88718-14450 | ||||
| 88718-95419 | ||||
| 88718-95A52 | ||||
| 88718-95A53 | ||||
| 88718-95A54 | ||||
| 90099-02133 | ||||
| 90099-05164 | ||||
| 90119-08157 | ||||
| 90179-08123 | ||||
| 91651-60820 | ||||
| 91651-60835 | ||||
| 93315-16010 | ||||
| 93315-16012 | ||||
| 93381-16016 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93540-14012 | ||||
ILLUST NO. 1 OF 2(8708-9309)LH8#,9#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-22190 | ||||
| 88718-12790 | ||||
| 88718-14450 | ||||
| 88718-95419 | ||||
| 88718-95A54 | ||||
| 88718-95A56 | ||||
| 88718-95A57 | ||||
| 90099-02133 | ||||
| 90099-05164 | ||||
| 90119-08157 | ||||
| 90179-08123 | ||||
| 91651-60820 | ||||
| 91651-60835 | ||||
| 93315-16010 | ||||
| 93315-16012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93540-14012 | ||||
