LH80-MDB (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

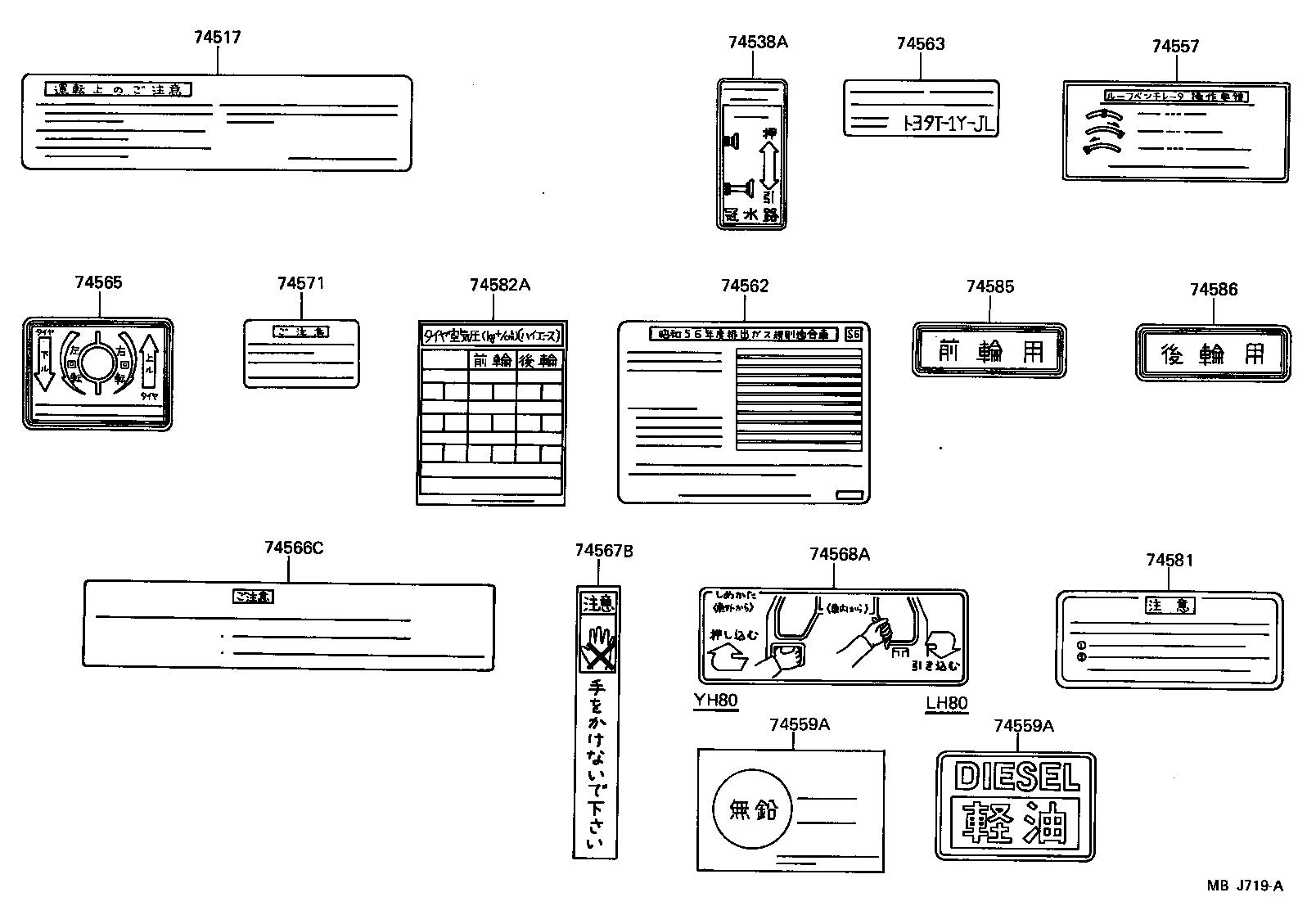

Click highlighted areas on diagram

diagram 74517 74538A 74557 74559A 74559A 74562 74563 74565 74566C 74567B 74568A 74571 74581 74582A 74585 74586
Part # Description Qty Price
74517 - PLATE, EXHAUST TEMPERATURE CAUTION
74517-20020

LH80,YH80

 1
74538A - PLATE, AIR CLEANER INLET OPERATIONAL CAUTION
74538-95010

LH80,YH80

 1
74557 - PLATE, ROOF VENTILATION CAUTION
74563-95400

LH80,YH80..T1,T2,T3

 1
74559A - PLATE, FUEL CAUTION
74559-14030

LH80

 1
74559A - PLATE, FUEL CAUTION
74559-14030

LH80

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-35120

LH80

 1
74562-30410

LH80

 1
74565 - PLATE, TIRE CARRIER CAUTION
74544-35050

LH80,YH80..T1,T3,TW

 1
74544-35060

LH80,YH80..T1,T3,TW

 1
74566C - PLATE, FRONT SLIDE DOOR CAUTION
74566-95400

LH80..T2,T3

 1
74566-95401

LH80..T1,T2,T3

 1
74567B - PLATE, FRONT SLIDE DOOR ARM CAUTION
74567-95400

LH80..T2,T3

 1
74567-95401

LH80..T1,T2,T3

 1
74568A - PLATE, FRONT SLIDE DOOR CAUTION, NO.2
74568-95401

LH80..T1,T2,T3

 1
74568-95401

LH80..T2,T3

 1
74571 - PLATE, BRAKE FLUID CAUTION
74571-27022

LH80,YH80

 1
47288-32010

LH80,YH80

 1
74581 - PLATE, POWER STEERING CAUTION
74581-37010

LH80

 1
74582A - PLATE, SAFETY CAUTION
74582-26090

LH80..T3,TW

 1
