LH80-MDB (1985)
Toyota Hiace Truck

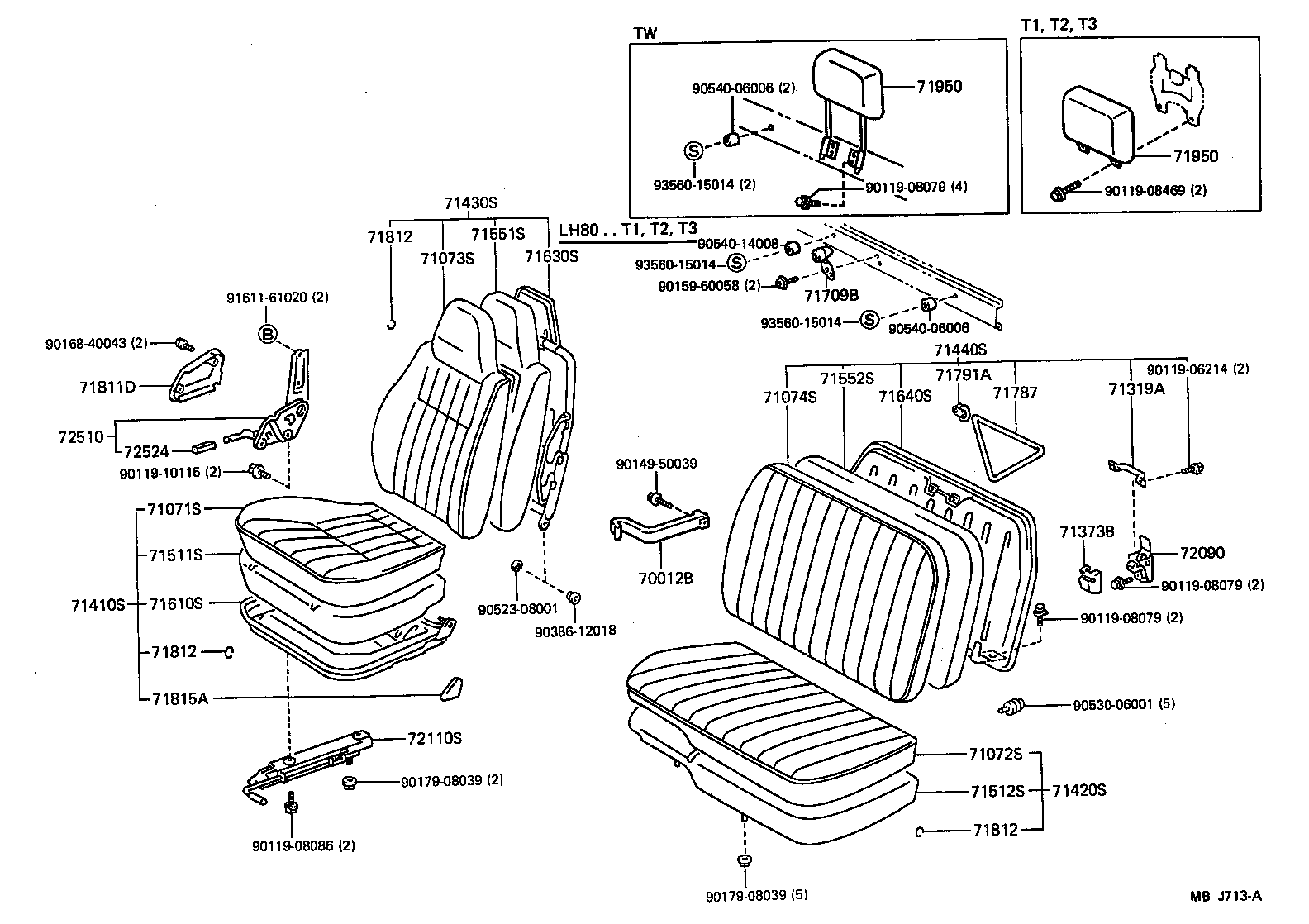

ILLUST NO. 1 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58930-9570004 |
LH80,YH80 BLUE,BLUE |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95A0004 |
LH80,YH80 VL,BLUE,BLUE |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95A0104 |
LH80..T2,T3 W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71072-95A0104 |
LH80..T1,T2,T3 W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71072-95A0004 |
LH80,YH80 VL,BLUE,BLUE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95A0004 |
LH80,YH80..T1,T2,T3 VL,BLUE,BLUE |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95A0804 |
LH80..T2,T3 W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71074-95A0604 |
LH80,YH80 VL,BLUE,BLUE |
1 | ||
| 71074-95A0704 |
LH80,YH80 COLD SPEC,VL,BLUE,BLUE |
1 | ||
| 71074-95A0904 |
LH80..T2,T3 COLD SPEC,W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71074-95A0804 |
LH80..T1,T2,T3 W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71074-95A0904 |
LH80..T1,T2,T3 COLD SPEC,W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95400 |
LH80,YH80 |
1 | ||
| 71373B - COVER, FRONT SEAT BACK LOCK | ||||
| 71373-9540004 |
LH80,YH80 BLUE,BLUE |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95A4804 |
LH80,YH80 VL,BLUE,BLUE |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95A0804 |
LH80..T2,T3 W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71420-95A0704 |
LH80,YH80 VL,BLUE,BLUE |
1 | ||
| 71420-95A0804 |
LH80..T1,T2,T3 W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-95A0004 |
LH80,YH80..T1,T2,T3 VL,BLUE,BLUE |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-95A1804 |
LH80..T2,T3 W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71440-95A1704 |
LH80,YH80 COLD SPEC,VL,BLUE,BLUE |
1 | ||
| 71440-95A1604 |
LH80,YH80 VL,BLUE,BLUE |
1 | ||
| 71440-95A1904 |
LH80..T1,T2,T3 COLD SPEC,W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71440-95A1904 |
LH80..T2,T3 COLD SPEC,W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71440-95A1804 |
LH80..T1,T2,T3 W/SLIDE DOOR,VL,BLUE,BLUE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95400 |
LH80,YH80 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95A05 |
LH80,YH80 |
1 | ||
| 71502-95401 |
LH80..T1,T2,T3 W/SLIDE DOOR |
1 | ||
| 71502-95401 |
LH80..T2,T3 W/SLIDE DOOR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95404 |
LH80,YH80 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-95403 |
LH80,YH80 |
1 | ||
| 71552-95404 |
LH80..T1,T2,T3 W/SLIDE DOOR |
1 | ||
| 71552-95404 |
LH80..T2,T3 W/SLIDE DOOR |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71011-95414 |
LH80,YH80 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71150-95J00 |
LH80,YH80 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-95413 |
LH80,YH80 |
1 | ||
| 71709B - CUSHION SUB-ASSY, SEAT SUPPORT | ||||
| 71709-95A05 |
LH80..T1,T2,T3 |
1 | ||
| 71787 - BAND, FRONT SEAT BACK POCKET | ||||
| 71787-95400 |
LH80,YH80 |
1 | ||
| 71791A - RETAINER, FRONT SEAT BACK POCKET | ||||
| 71791-95400 |
LH80,YH80 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-95J0114 |
LH80,YH80 BLUE,BLUE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH80,YH80 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH80,YH80 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH80,YH80 |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J0014 |
LH80,YH80 BLUE,BLUE |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9540004 |
LH80,YH80..T1,T2,T3 BLUE,BLUE |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9540004 |
LH80,YH80..T1,T2,T3 BLUE,BLUE |
1 | ||
| 72090 - LOCK ASSY, FRONT SEAT BACK | ||||
| 72090-9540004 |
LH80,YH80 BLUE,BLUE |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-95408 |
LH80,YH80 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95J0014 |
LH80,YH80 BLUE,BLUE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0014 |
LH80,YH80 BLUE,BLUE |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-08469 | ||||
| 90119-10116 | ||||
| 90149-50039 | ||||
| 90159-60058 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 90530-06001 | ||||
| 90540-06006 | ||||
| 90540-14008 | ||||
| 91611-61020 | ||||
| 93560-15014 | ||||

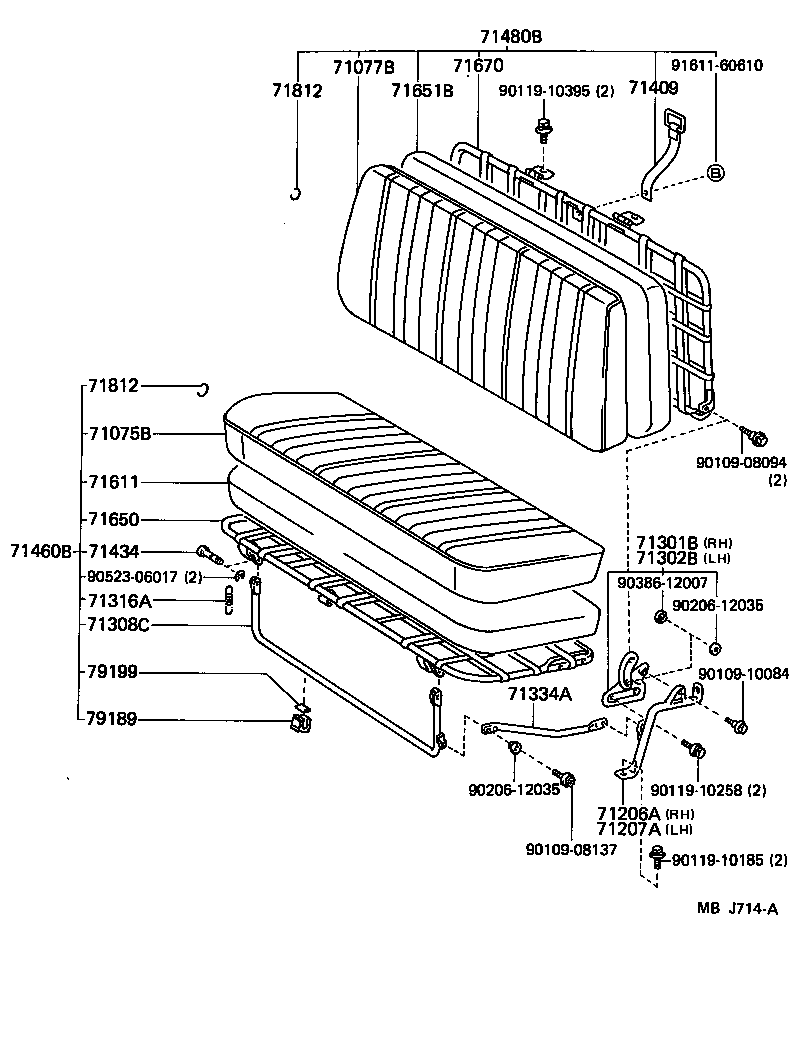

ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH80,YH80 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH80,YH80 |
1 | ||
| Common parts | ||||
| 90109-08094 | ||||
| 90109-08137 | ||||
| 90109-10084 | ||||
| 90119-10185 | ||||
| 90119-10258 | ||||
| 90119-10395 | ||||
| 90206-12035 | ||||
| 90386-12007 | ||||
| 90523-06017 | ||||
| 91611-60610 | ||||
