LH80-MDB (1987)
Toyota Hiace Truck
(8708- )LH80,90,YH81
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26250 |
LH80,90,YH81 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26200 |
LH80,90,YH81 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26110 |
LH80,90,YH81 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02477 |
LH80,90,YH81 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26110 |
LH80,90,YH81..ST |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26110 |
LH80,90,YH81..ST |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26090 |
LH80,90,YH81..ST |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26131 |
LH8#,YH81..ST |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02555 |
LH80,90,YH81..T1,T3,TW |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26160 |
LH80,90,YH81 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26130 |
LH80,90,YH81 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26280 |
LH80,90,YH81 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26280 |
LH80,90,YH81 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26151 |
LH8#,YH81 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26151 |
LH8#,YH81 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26190 |
LH8#,YH81 |
1 | ||
| 47325-26281 |
LH8#,9#,YH81 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26190 |
LH8#,YH81 |
1 | ||
| 47325-26281 |
LH8#,9#,YH81 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26170 |
LH80,90,YH81..T1,T3,TW |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26050 |
LH80,90,YH81..T1,T3,TW |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-26060 |
LH80,90,YH81 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-26060 |
LH80,90,YH81 |
1 | ||
| Common parts | ||||
| 90468-08034 | ||||
| 90480-01325 | ||||
| 90480-01326 | ||||

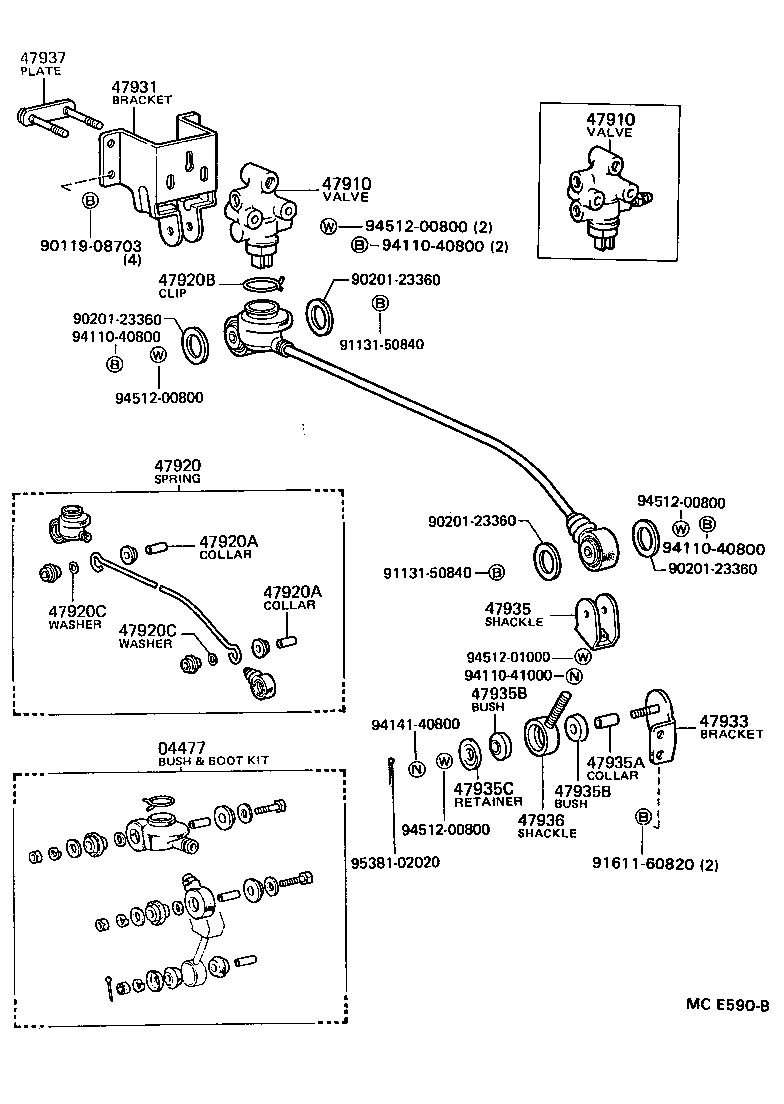

(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
LH8#,9#,YH81 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26141 |
LH8#,9#,YH81..ST |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26141 |
LH8#,9#,YH81..ST |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-26060 |
LH8#,9#,YH81 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LH8#,9#,YH81 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LH8#,9#,YH81 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LH8#,9#,YH81 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LH8#,9#,YH81 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LH8#,9#,YH81 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26090 |
LH8#,YH81 |
1 | ||
| 47931-26091 |
LH8#,9#,YH81 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26080 |
LH8#,9#,YH81 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
LH8#,9#,YH81 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LH8#,9#,YH81 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH8#,9#,YH81 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH8#,9#,YH81 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
LH8#,9#,YH81 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
LH8#,9#,YH81 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LH8#,9#,YH81 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

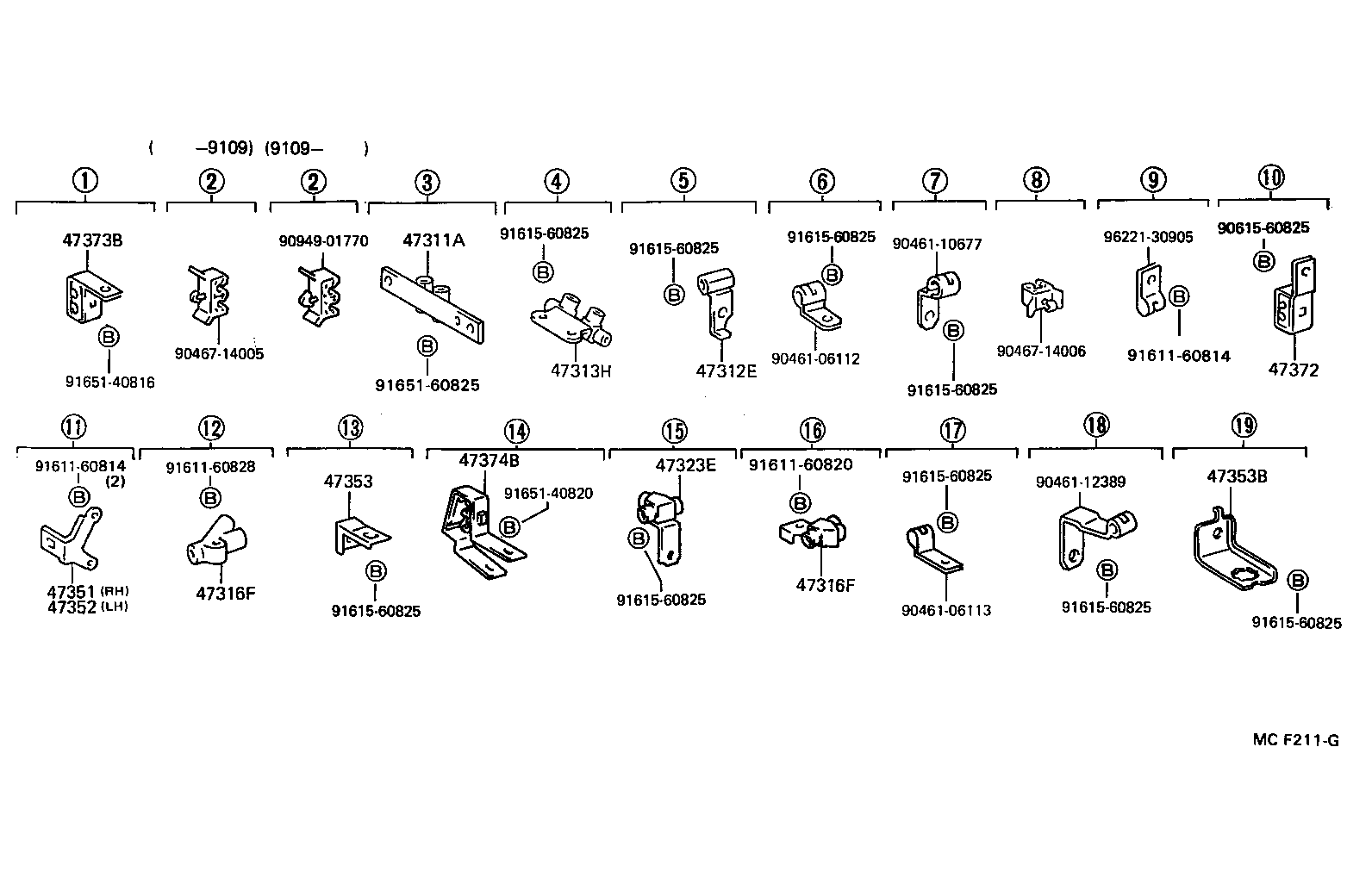

(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10131 |
LH8#,9#,YH81 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10134 |
LH8#,9#,YH81 |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10187 |
LH8#,9#,YH81 |
1 | ||
| 47316F - WAY, 3(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
LH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW |
1 | ||
| 47316F - WAY, 3(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
LH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW |
1 | ||
| 47323E - GROMMET, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10186 |
LH8#,9#,YH81..ST |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26070 |
LH80,90,YH81 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26070 |
LH80,90,YH81 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-26030 |
LH80,90,YH81 |
2 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-26050 |
LH8#,9#,YH81 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
LH80,90,YH81 |
5 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-25010 |
LH8#,9#,YH81 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-26010 |
LH80,90,YH81 |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 90461-10677 | ||||
| 90461-12389 | ||||
| 90467-14005 | ||||
| 90467-14006 | ||||
| 90615-60825 | ||||
| 90949-01770 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91611-60828 | ||||
| 91615-60825 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60825 | ||||
| 96221-30905 | ||||
