LH80-MDB (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST

Click highlighted areas on diagram

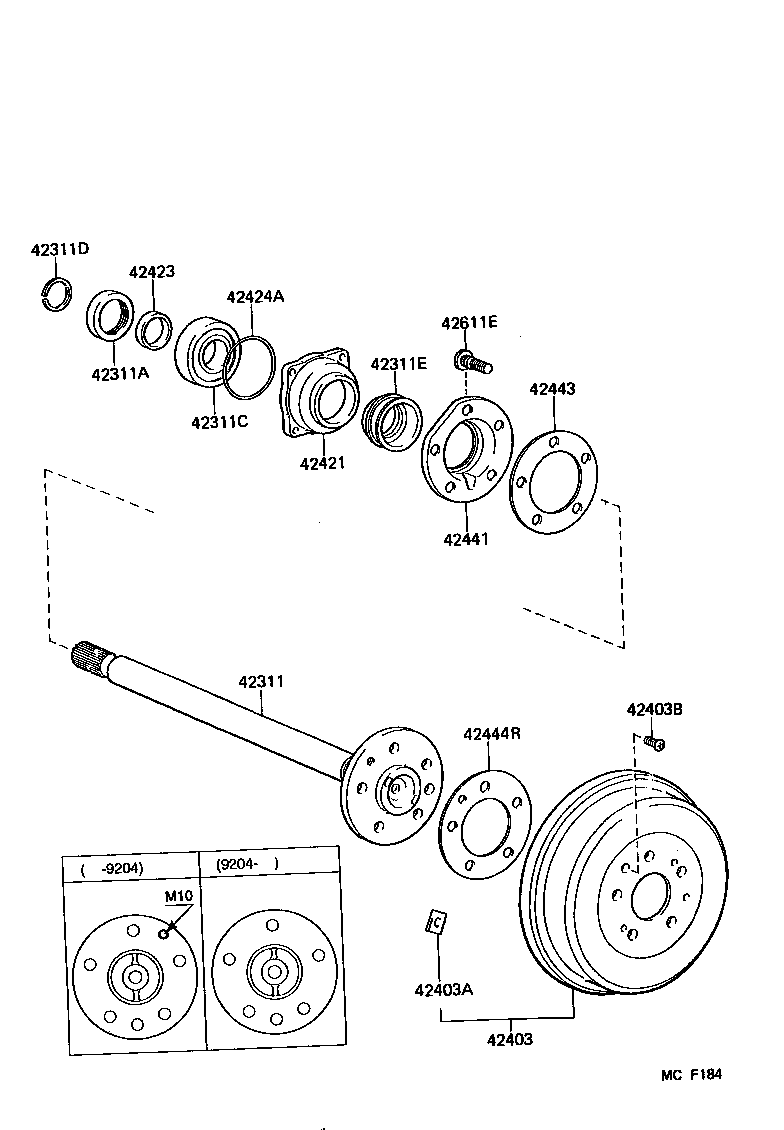

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42403B 42421 42423 42424A 42441 42443 42444R 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-26011

LH80,90,YH81..T1,T3,TW

 2
42311-26010

LH80,90,YH81..T1,T3,TW

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-50001

LH8#,9#,YH81..ST

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90363-40020

LH8#,YH81..ST

 2
90363-40041

LH8#,9#,YH81..ST

 2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-36045

LH8#,9#,YH81..ST

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-48001

LH8#,9#,YH81..ST

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35190

LH85,95..T2;LH80,90,YH81..ST

 2
42431-26050

LH85,95..T2;LH80,90,YH81..ST

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01117

LH8#,9#,YH81..ST

10G

 1
90937-01118

LH8#,9#,YH81..ST

20G

 1
90937-01119

LH8#,9#,YH81..ST

30G

 1
90937-01100

LH85,95..T2;LH80,90,YH81..ST

40.5G

 1
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10035

LH85,95..T2;LH80,90,YH81..ST

 2
42421 - CASE, REAR AXLE BEARING
42421-35030

LH8#,9#,YH81..ST

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-20010

LH8#,9#,YH81..ST

 2
42424A - RING, O (FOR BEARING RETAINER SET)
90301-88077

LH8#,9#,YH81..ST

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-26010

LH85,95..T2;LH80,90,YH81..ST

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-30010

LH85,95..T2;LH80,90,YH81..ST

 2
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35060

LH85,95..T2;LH80,90,YH81..ST

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02049

LH85,95..T2;LH80,90,YH81..ST

 10
