LH80-MDB (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L

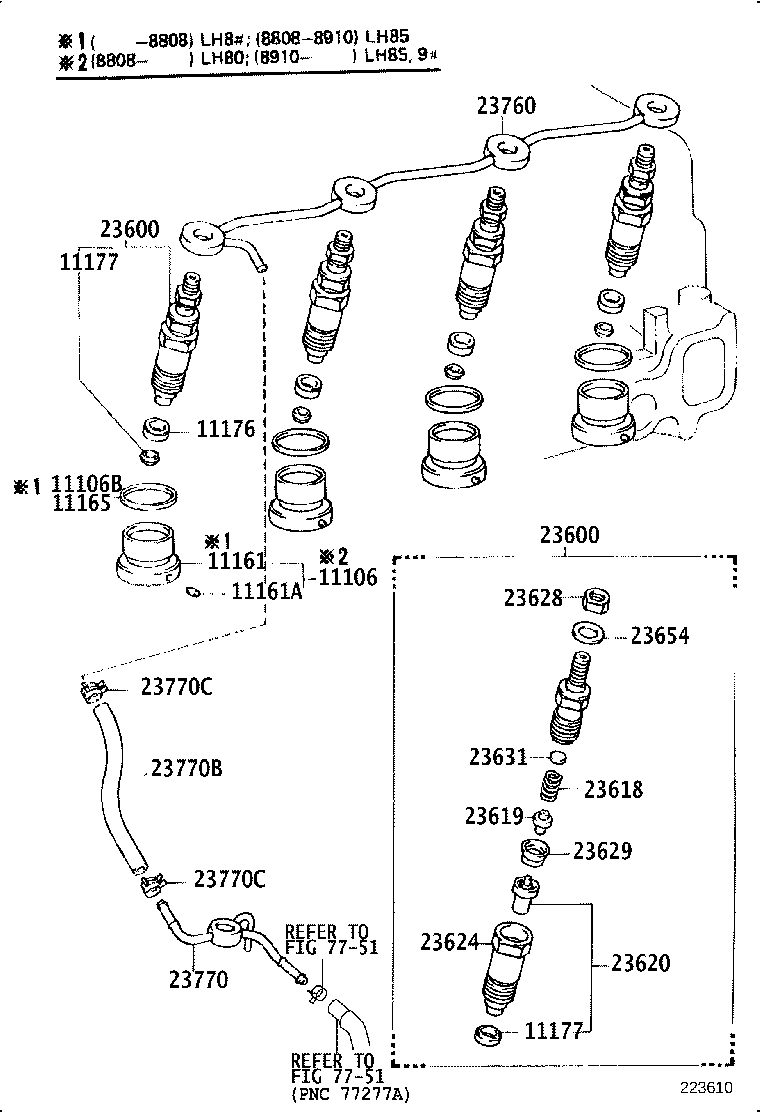

Click highlighted areas on diagram

diagram 11106 11106B 11161 11161A 11165 11176 11177 11177 23600 23600 23618 23619 23620 23624 23628 23629 23631 23654 23760 23770 23770B 23770C 23770C 7751 7751
Part # Description Qty Price
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-54100

2L..LH8#,9#

 4
11106-54100

2L..LH80

 4
11106B - SHIM(FOR COMBUSTION CHAMBER)
11165-54030

2L..LH80

厚さ=0.03

 1
11165-54030

2L..LH8#,9#

厚さ=0.03

 1
11161 - CHAMBER, COMBUSTION
11161-54070

2L..LH8#

 4
11161A - PIN, STRAIGHT(FOR COMBUSTION CHAMBER)
90250-02046

2L..LH8#,9#

 4
11165 - SHIM(FOR COMBUSTION CHAMBER)
11166-54011

2L..LH8#

厚さ=0.10

 1
11165-54011

2L..LH8#

厚さ=0.05

 1
11168-54011

2L..LH8#

厚さ=0.20

 1
11167-54011

2L..LH8#

厚さ=0.15

 1
11176 - SEAT, INJECTION NOZZLE
11176-56010

2L..LH8#

 4
11176-64010

2L..LH8#,9#

 4
11176-64010

2L..LH80

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-54011

2L..LH8#

 4
11177-54020

2L..LH8#,9#

 4
11177-64010

2L..LH8#,9#

 4
11177-64010

2L..LH80

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-54011

2L..LH8#

 4
11177-54020

2L..LH8#,9#

 4
11177-64010

2L..LH8#,9#

 4
11177-64010

2L..LH80

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-59105

2L..LH8#,9#

ｱﾘ(ｵｲﾙﾚﾍﾞﾙｾﾝｻ-)

 4
23600-59105

2L..LH80

 4
23600-59035

2L..LH8#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-59105

2L..LH8#,9#

ｱﾘ(ｵｲﾙﾚﾍﾞﾙｾﾝｻ-)

 4
23600-59105

2L..LH80

 4
23600-59035

2L..LH8#

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-54050

2L..LH8#

 8
23618-54050

2L..LH8#

 4
23618-54080

2L..LH8#,9#

 4
23618-54080

2L..LH80

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-64010

2L..LH80

 4
23619-46010

2L..LH8#

 4
23619-64010

2L..LH8#,9#

 4
23620 - NOZZLE ASSY
23620-59045

2L..LH80

ﾅｼ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ)

 4
23620-59045

2L..LH8#,9#

ｱﾘ(ｵｲﾙ ﾚﾍﾞﾙ ｾﾝｻ)

 4
23620-59015

2L..LH8#

 4
23624 - NUT, NOZZLE RETAINING
23624-54040

2L..LH8#

 4
23624-64040

2L..LH80

 4
23624-64040

2L..LH8#,9#

 4
23628 - NUT(FOR RING PACKING SETTING)
23628-46010

2L..LH8#

 4
23628-64010

2L..LH80

 4
23628-64010

2L..LH8#,9#

 4
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-64010

2L..LH80

 4
23629-54080

2L..LH80

 4
23629-54080

2L..LH8#,9#

 4
23629-46010

2L..LH8#

 4
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-46010

2L..LH8#

厚さ=1.000

 4
23643-46010

2L..LH8#

厚さ=1.550

 4
23632-46010

2L..LH8#

厚さ=1.050

 4
23633-46010

2L..LH8#

厚さ=1.100

 4
23636-46010

2L..LH8#

厚さ=1.250

 4
23638-46010

2L..LH8#

厚さ=1.350

 4
23644-46010

2L..LH8#

厚さ=1.600

 4
23639-46010

2L..LH8#

厚さ=1.400

 4
23645-46010

2L..LH8#

厚さ=1.650

 4
23651-46010

2L..LH8#

厚さ=1.900

 4
23646-46010

2L..LH8#

厚さ=1.700

 4
23649-46010

2L..LH8#

厚さ=1.850

 4
23637-46010

2L..LH8#

厚さ=1.300

 4
23634-46010

2L..LH8#

厚さ=1.150

 4
23652-46010

2L..LH8#

厚さ=1.950

 4
23647-46010

2L..LH8#

厚さ=1.750

 4
23635-46010

2L..LH8#

厚さ=1.200

 4
23648-46010

2L..LH8#

厚さ=1.800

 4
23631-64016

2L..LH80

厚さ=1.050

 4
23631-64014

2L..LH80

厚さ=1.000

 4
23642-46010

2L..LH8#

厚さ=1.500

 4
23632-64012

2L..LH80

厚さ=1.200

 4
23641-46010

2L..LH8#

厚さ=1.450

 4
23631-64012

2L..LH80

厚さ=0.950

 4
23631-64010

2L..LH80

厚さ=0.900

 4
23631-64018

2L..LH80

厚さ=1.100

 4
23632-64010

2L..LH80

厚さ=1.150

 4
23634-64010

2L..LH80

厚さ=1.650

 4
23633-64010

2L..LH80

厚さ=1.400

 4
23633-64012

2L..LH80

厚さ=1.450

 4
23634-64014

2L..LH80

厚さ=1.750

 4
23632-64018

2L..LH80

厚さ=1.350

 4
23632-64016

2L..LH80

厚さ=1.300

 4
23634-64012

2L..LH80

厚さ=1.700

 4
23633-64014

2L..LH80

厚さ=1.500

 4
23634-64018

2L..LH80

厚さ=1.850

 4
23635-64010

2L..LH80

厚さ=1.900

 4
23634-64016

2L..LH80

厚さ=1.800

 4
23633-64018

2L..LH80

厚さ=1.600

 4
23632-64014

2L..LH80

厚さ=1.250

 4
23633-64016

2L..LH80

厚さ=1.550

 4
23635-64012

2L..LH80

厚さ=1.950

 4
23631-64012

2L..LH8#,9#

厚さ=0.950

 4
23631-64016

2L..LH8#,9#

厚さ=1.050

 4
23631-64010

2L..LH8#,9#

厚さ=0.900

 4
23632-64010

2L..LH8#,9#

厚さ=1.150

 4
23632-64014

2L..LH8#,9#

厚さ=1.250

 4
23631-64014

2L..LH8#,9#

厚さ=1.000

 4
23631-64018

2L..LH8#,9#

厚さ=1.100

 4
23633-64016

2L..LH8#,9#

厚さ=1.550

 4
23632-64018

2L..LH8#,9#

厚さ=1.350

 4
23632-64016

2L..LH8#,9#

厚さ=1.300

 4
23634-64016

2L..LH8#,9#

厚さ=1.800

 4
23633-64012

2L..LH8#,9#

厚さ=1.450

 4
23633-64018

2L..LH8#,9#

厚さ=1.600

 4
23632-64012

2L..LH8#,9#

厚さ=1.200

 4
23635-64010

2L..LH8#,9#

厚さ=1.900

 4
23634-64010

2L..LH8#,9#

厚さ=1.650

 4
23633-64014

2L..LH8#,9#

厚さ=1.500

 4
23634-64012

2L..LH8#,9#

厚さ=1.700

 4
23635-64012

2L..LH8#,9#

厚さ=1.950

 4
23633-64010

2L..LH8#,9#

厚さ=1.400

 4
23634-64014

2L..LH8#,9#

厚さ=1.750

 4
23634-64018

2L..LH8#,9#

厚さ=1.850

 4
23654 - WASHER(FOR RING PACKING)
23654-46010

2L..LH8#

 4
23654-64010

2L..LH80

 4
23654-64010

2L..LH8#,9#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-54030

2L..LH8#,9#

 1
23760-54011

2L..LH8#

 1
23760-54030

2L..LH80

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23764-54022

2L..LH8#

 1
23764-54080

2L..LH8#,9#

 1
23764-54080

2L..LH80

 1
23770B - HOSE, FUEL
95333-04020

2L..LH8#,9#

長さ=200

 1
95333-04020

2L..LH8#

長さ=200

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96132-30400

2L..LH8#,9#

 2
96133-41000

2L..LH8#,9#

 2
96132-30400

2L..LH8#

 2
96132-51000

2L..LH8#

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96132-30400

2L..LH8#,9#

 2
96133-41000

2L..LH8#,9#

 2
96132-30400

2L..LH8#

 2
96132-51000

2L..LH8#

 2
Linked diagrams
7751
