LH80-MD3 (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

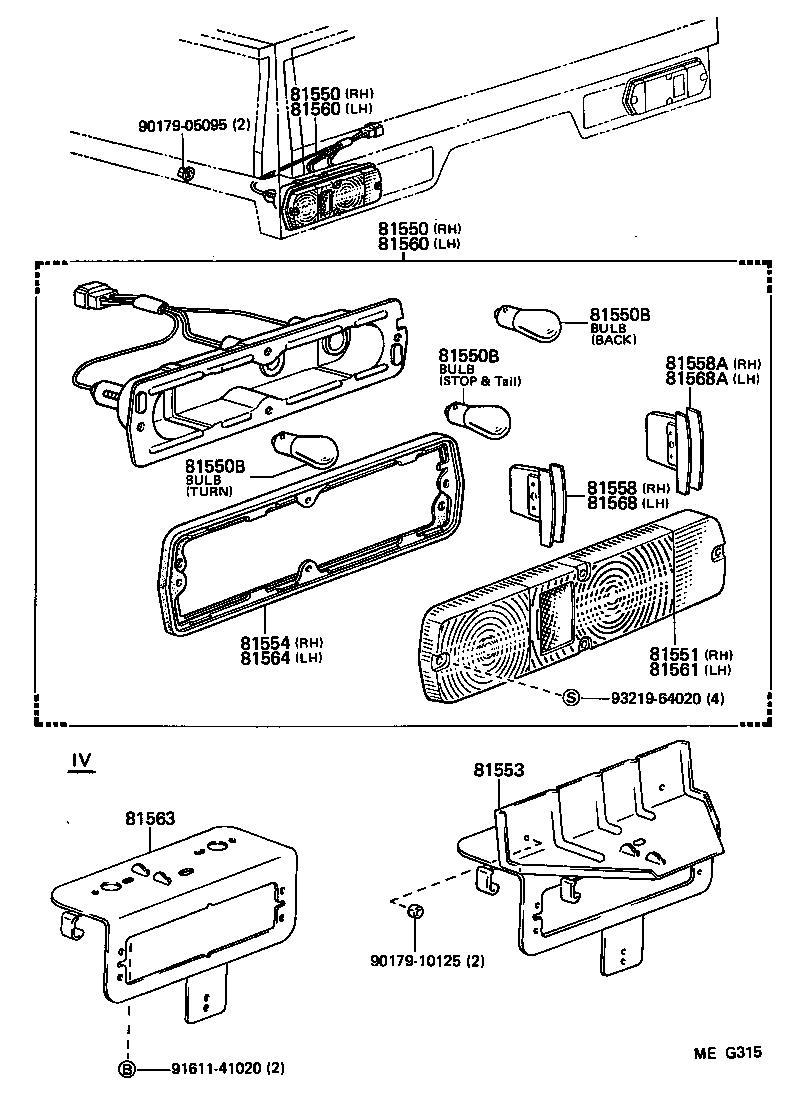

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81551 81553 81554 81558 81558A 81560 81560 81561 81563 81564 81568 81568A 9017905095 9017910125 9161141020 9321964020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95012

LH80,YH80

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95012

LH80,YH80

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH80,YH80

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

LH80,YH80

12V 21/5W,12V 21/5W(STOP & TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH80,YH80

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

LH80,YH80

12V 21/5W,12V 21/5W(STOP & TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH80,YH80

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

LH80,YH80

12V 21/5W,12V 21/5W(STOP & TAIL)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060

LH80,YH80

 1
81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH
75103-25011

LH80,YH80..IV

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-25060

LH80,YH80

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

LH80,YH80

 1
81558A - SHADE, REAR COMBINATION LAMP, NO.2 RH
81557-25060

LH80,YH80

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95012

LH80,YH80

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95012

LH80,YH80

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040

LH80,YH80

 1
81563 - BRACKET, REAR COMBINATION LAMP, NO.1 LH
75104-25011

LH80,YH80..IV

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-25040

LH80,YH80

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

LH80,YH80

 1
81568A - SHADE, REAR COMBINATION LAMP, NO.2 LH
81557-25060

LH80,YH80

 1
Common parts
90179-05095
90179-10125
91611-41020
93219-64020
